Nano-Change | M8 Single & Double-Ended Cordsets | Snap Cordsets
#24 AWG Yellow PVC Cable
Oil-Resistant High-Flex PUR Jacket Available
Secure Static Fit for Quick Installation
| MECHANICAL |
| Connector Face: |
| Molded Body Material: |
| Cable: |
| Option: |
| Outside Diameter: |
| 3/C |
| 4/C |
| ELECTRICAL |
| Voltage Rating: |
| Amperage: |
| ENVIRONMENTAL |
| Protection: |
| Ambient Operating Temp: |
| CERTIFICATION |
| UL: |
| PBT | |
| TPE | |
| Yellow PVC Cable Jacket, | |
| #24 AWG Over 19 X #36 Copper | |
| Stranding, UL Style 2661 | |
| Yellow, High-Flex PUR Cable | |
| Jacket, #24 AWG Over | |
| 128 X #44 Stranding, | |
| UL Style 20233 | |
| PVC | PUR |
| 0.17" | 0.18" |
| 0.18" | 0.18" |
| 60V AC / 75V DC | |
| 3P - 4A | |
| 4P - 4A | |
| NEMA 4, IP 65 | |
| -4° TO 221°F - PVC | |
| -4° TO 176°F - PUR | |
| UL Recognized, File NO. E152210 | |
Part Number Selector
| 3P | 4P | |
| FEMALE FACE VIEW |
 |
 |
| COLOR CODE | 1 - brown 2 - blue 3 - black | 1 - brown2 - white3 - blue4 - black |
| VOLTAGE | 60V AC / 75V DC | 60V AC / 75V DC |
| CURRENT | 4A | 4A |
| CONDUCTOR | #24-3 | #24-4 |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | ||

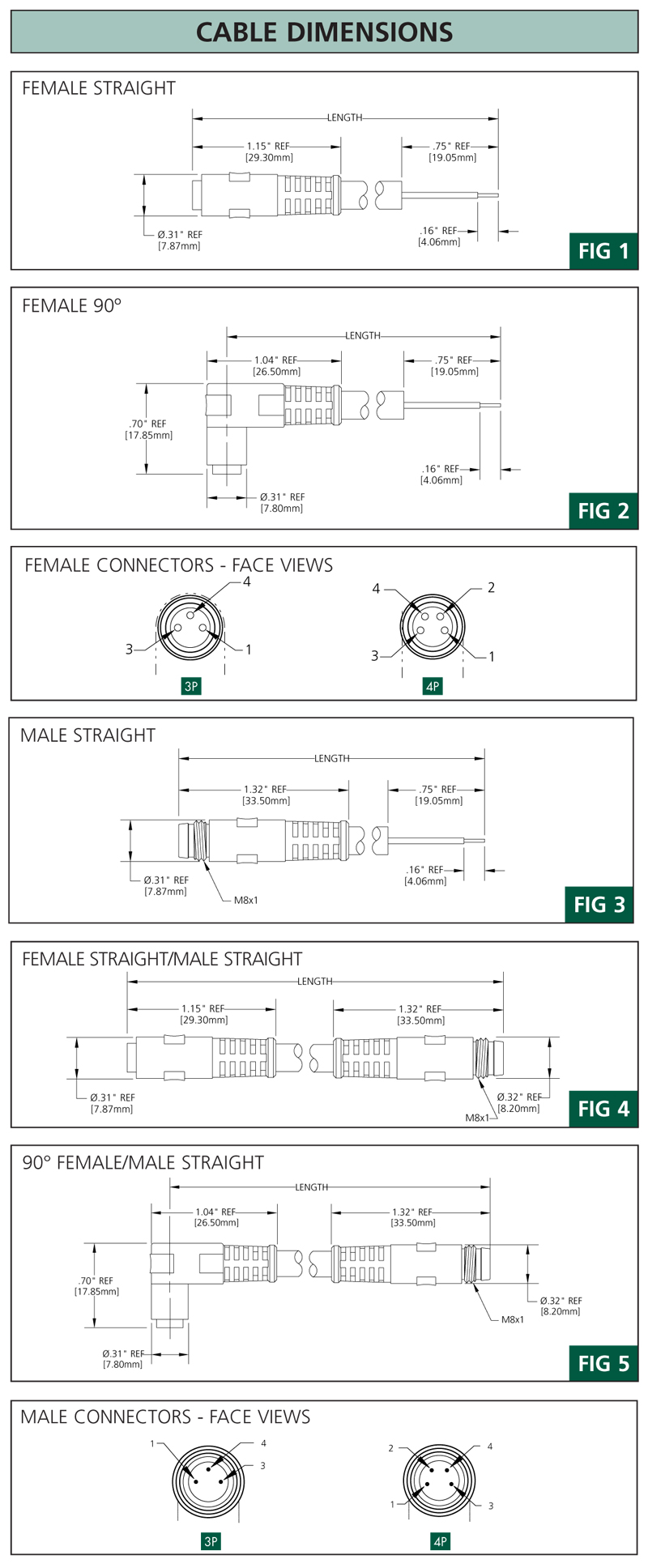

| FEMALE | SINGLE-ENDED CORDSETS WITH 2 METER PVC CABLE | |
| STRAIGHT | 503000A10M020 | 504000A10M020 |
| 90° | 503001A10M020 | 504001A10M020 |

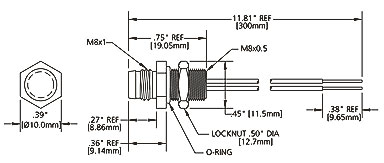

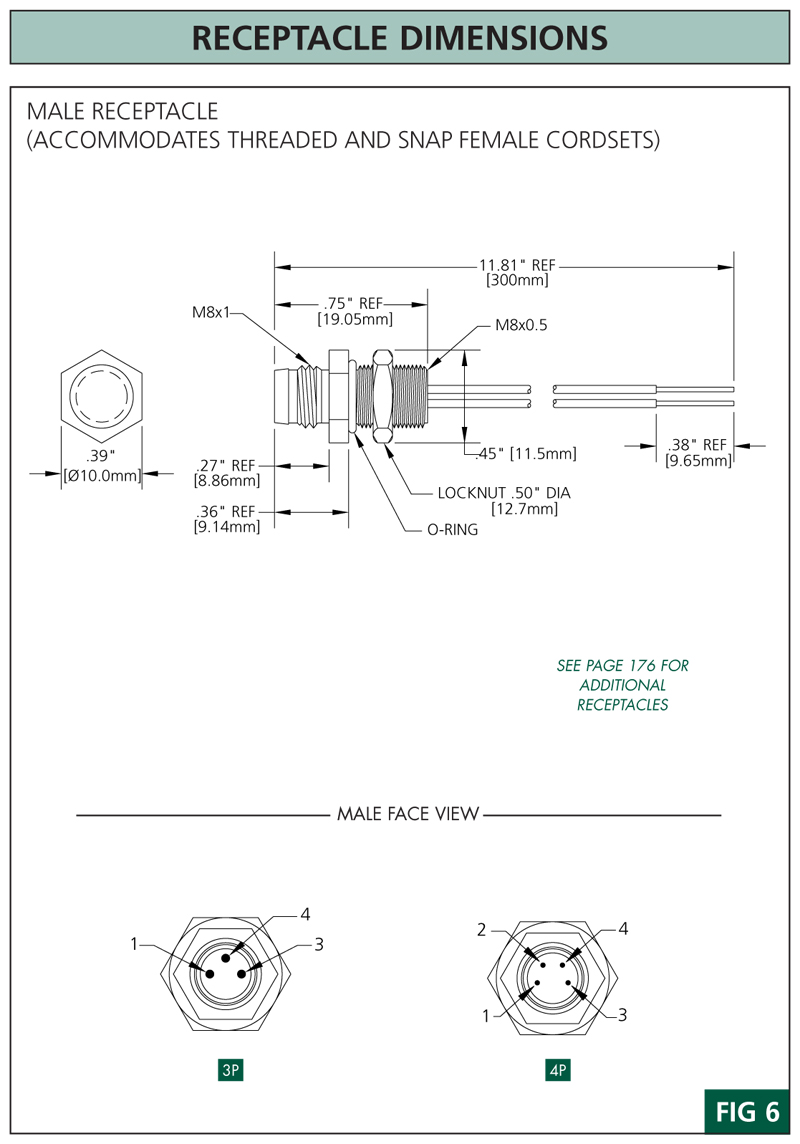

| MATING RECEP. | 4R3P06A27C300 | 4R4P06A27C300 |
| MALE | SINGLE-ENDED CORDSETS WITH 2 METER PVC CABLE | |
| STRAIGHT | 503006A10M020 | 504006A10M020 |
| FEMALE/MALE | DOUBLE-ENDED CORDSETS WITH 2 METER PVC CABLE | |
| STRT./STRT. | 553030A10M020 | 554030A10M020 |
| 90°/STRAIGHT | 553031A10M020 | 554031A10M020 |
