Nano-Change | M8 Receptacles
Nickel-Plated Brass Body
IP 68 Rating on Threaded Connection
| MECHANICAL |
| Connector Face: |
| Shell: |
| O-Ring: |
| Wire: |
| ELECTRICAL |
| Voltage Rating: |
| Amperage: |
| ENVIRONMENTAL |
| Protection: |
| Ambient Oper. Temp: |
| CERTIFICATIONS |
| UL: |
| PBT |
| Nickel-Plated Brass |
| Viton |
| PVC; #24 AWG (19X #36) |
| 60V AC / 75V DC |
| 3P - 4A |
| 4P - 4A |
| 5P - 3A |
| NEMA 6P, IP 68 (Coupler) |
| NEMA 4, IP 65 (Snap) |
| -4° TO 221°F - PVC |
| UL Recognized, File NO. 152210 |
Part Number Selector
| 3P | 4P | 5P | |
| MALE FACE VIEW |
 |
 |
 |
| COLOR CODE | 1 - brown 2 - blue 4 - black | 1 - brown 2 - white 3 - blue 4 - black | 1 - brown2 - white3 - blue4 - black5 - gray |
| VOLTAGE | 60V AC / 75V DC | 60V AC / 75V DC | 60V AC / 75V DC |
| CURRENT | 4A | 4A | 3A |
| CONDUCTOR | #24-3 | #24-4 | #24-5 |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | |||

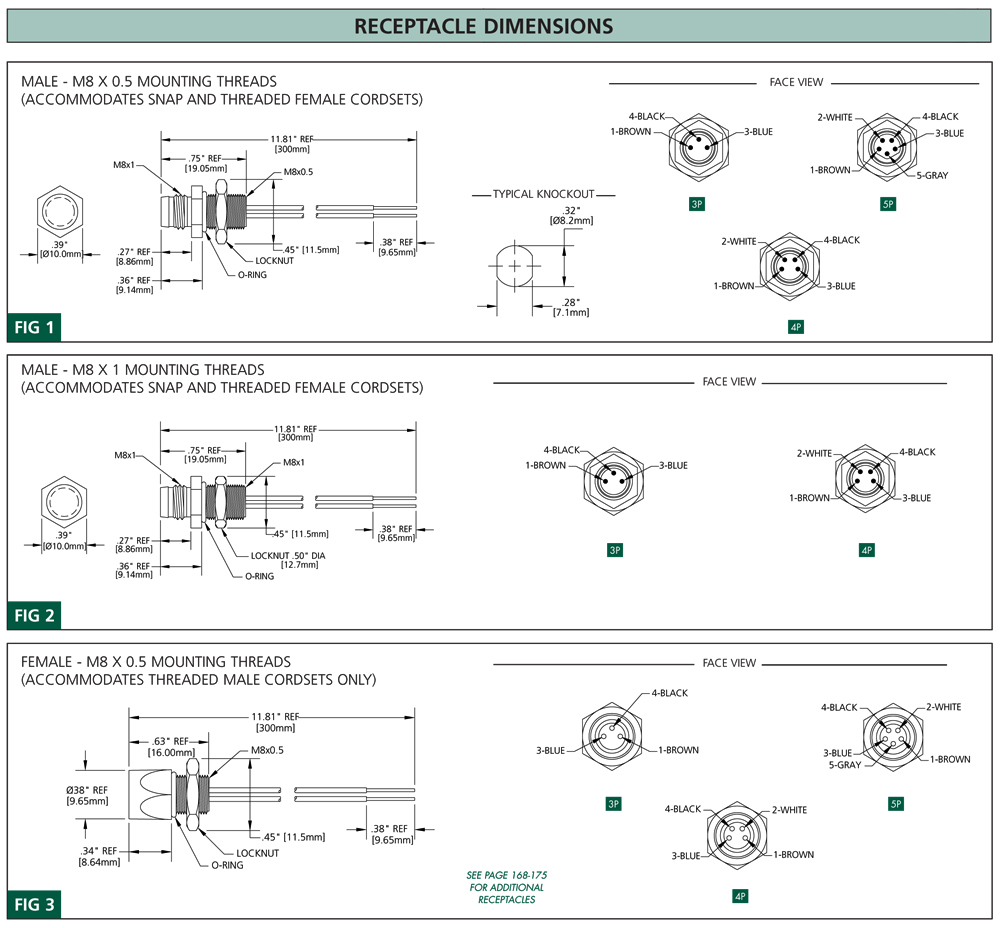

| MALE (accepts snap or threaded cordsets) |
RECEPTACLES WITH 30 CENTIMETER #24 AWG PVC LEADS | ||
| M8 X 0.5 MOUNTING THREADS |
4R3P06A27C300 | 4R4P06A27C300 | 4R5P06A27C300 |
| M8 X 1 MOUNTING THREADS |
4R3F06A27C300 | 4R4F06A27C300 | - |
| FEMALE (accepts threaded cordsets only ) |
RECEPTACLES WITH 30 CENTIMETER #24 AWG PVC LEADS | ||
| M8 X 0.5 MOUNTING THREADS |
4R3P00A27C300 | 4R4P00A27C300 | 4R5P00A27C300 |
