Nano-Change | M8 Single & Double-Ended LED Cordsets
Clear PVC Body for Easy Visibility of Green Power and Yellow Output LED
Extended Life LEDs - 100,000 Continuous Hours of Use
PNP and NPN Versions / Snap and Coupling Nut Versions
| MECHANICAL |
| Connector Face: |
| Molded Body Material: |
| O-Ring: |
| Coupling Nut: |
| Cable: |
| Option: |
| Outside Diameter: |
| ELECTRICAL |
| Voltage Rating: |
| Amperage: |
| ENVIRONMENTAL |
| Protection: |
| Ambient Operating Temp: |
| CERTIFICATION |
| UL: |
| PBT | |
| TPE | |
| Viton (Threaded Only) | |
| Nickel-Plated Brass | |
| Yellow PVC Cable Jacket, | |
| #24 AWG Over 19 X #36 Copper | |
| Stranding, UL Style 2661 | |
| Yellow, High-Flex PUR Cable | |
| Jacket, #24 AWG Over | |
| 128 X #44 Stranding, | |
| UL Style 20233 | |
| PVC | PUR |
| 0.17" | 0.18" |
| 10-30 V DC | |
| 4A | |
| NEMA 4, IP 65 (SNAP) | |
| NEMA 6P, IP 68 (COUPLER) | |
| -4° TO 221°F - PVC | |
| -4° TO 176°F - PUR | |
| UL Recognized, File NO. E152210 | |
Part Number Selector
| 3P Snap Connection | 3P Threaded Connection | |
| FEMALE FACE VIEW |
 |
|
| COLOR CODE | 1 - brown 2 - blue 3 - black | 1 - brown3 - blue4 - black |
| VOLTAGE | 10-30V DC | 10-30V DC |
| CURRENT | 4A | 4A |
| CONDUCTOR | #24-3 | #24-3 |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | ||

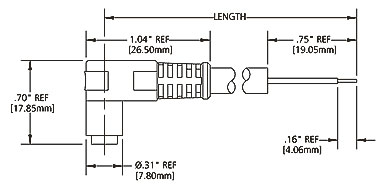

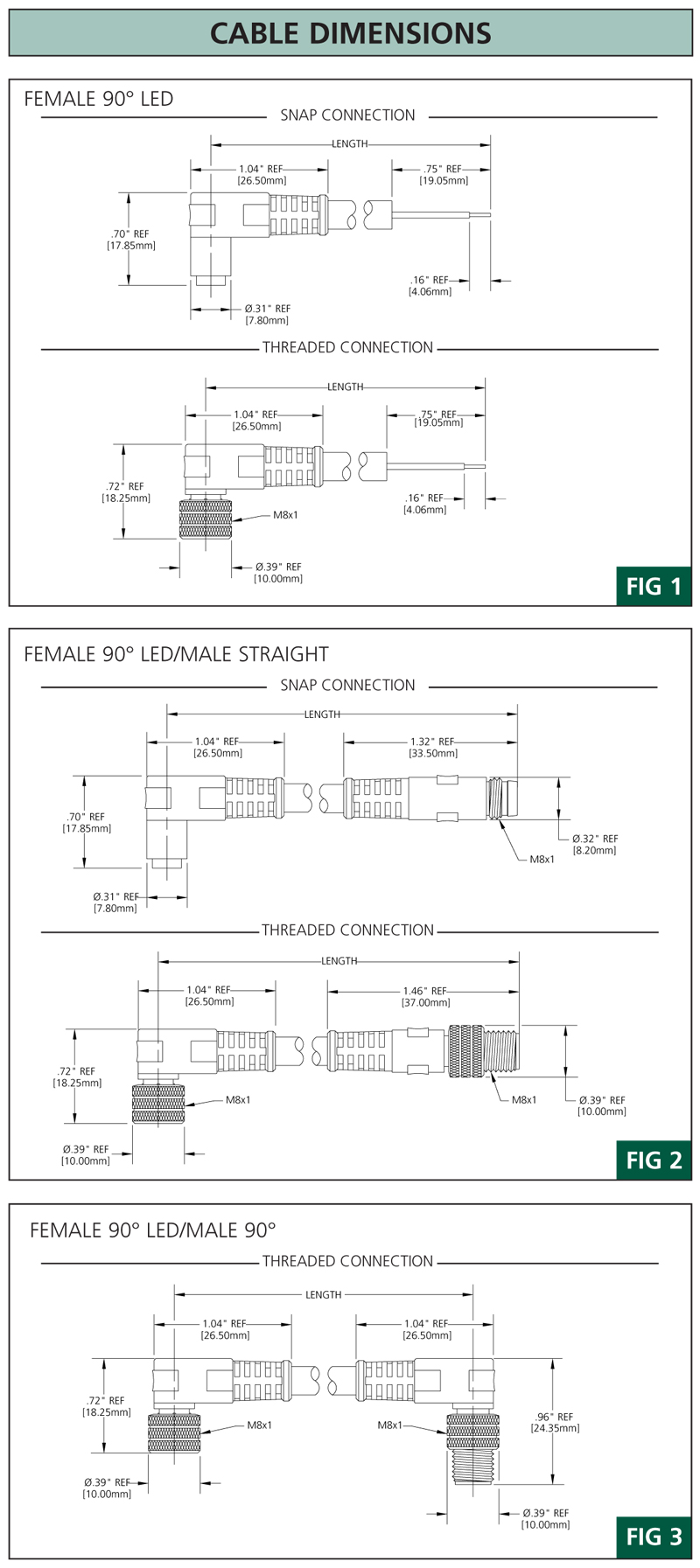

| FEMALE | SINGLE-ENDED LED CORDSETS WITH 2 METER PVC CABLE | |
| 90° PNP | 5030P1A10M020 | 4030P1A10M020 |
| 90° NPN | 5030N1A10M020 | 4030N1A10M020 |

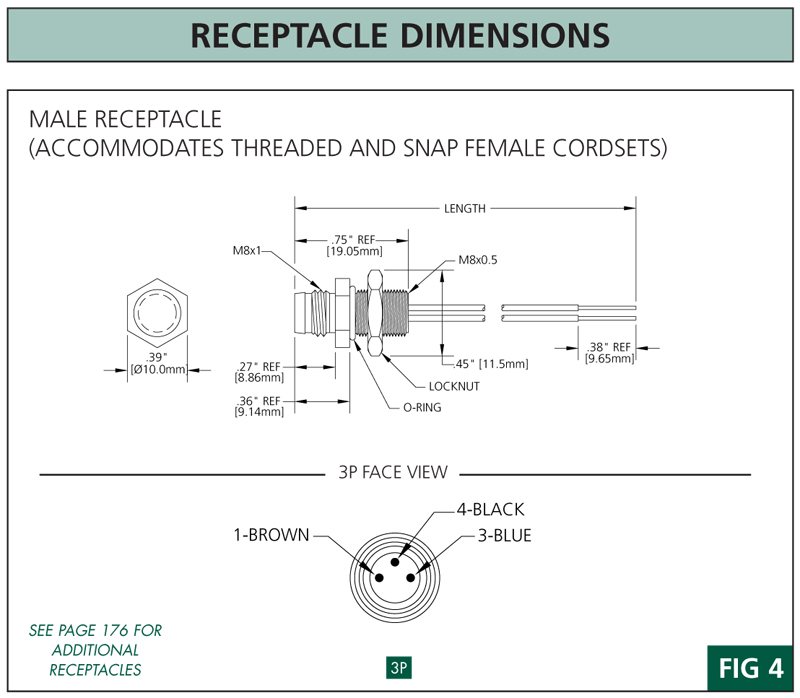

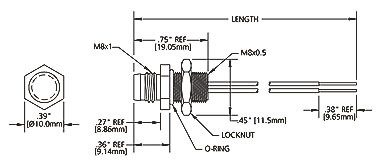

| MATING RECEP. | 4R3P06A27C300 | 4R3P06A27C300 |
| FEMALE/MALE | DOUBLE-ENDED LED CORDSETS WITH 2 METER PVC CABLE | |
| 90° PNP/STRAIGHT | 5530P7A10M020 | 4430P7A10M020 |
| 90° PNP/90° | - | 4430P9A10M020 |
| 90° NPN/STRAIGHT | 5530N7A10M020 | 4430N7A10M020 |
| 90° NPN/90° | - | 4430N9A10M020 |
