Micro-Change | Single & Double-Ended Cordsets | 3 & 4 Poles | Single Keyway M12
#18 AWG Yellow PUR High-Flex Cable - DC Color Code
Oil- and Abrasion-Resistant Polyurethane Jacket
Highly Reliable Low-Resistance Contact Design with Gold/Palladium Nickel Plating
| MECHANICAL |
| Connector Face: |
| Molded Body: |
| O-Ring: |
| Coupling Nut: |
| Cable: |
| Outside Diameter: |
| ELECTRICAL |
| Voltage Rating: |
| Amperage: |
| ENVIRONMENTAL |
| Protection: |
| Ambient Oper. Temp: |
| CERTIFICATIONS |
| UL: |
| CSA: |
| Nylon 6/6 |
| PVC |
| Viton |
| Zinc Diecast w/ Black Epoxy |
| Coat, Optional Stainless Steel |
| Type 303 |
| Yellow #18 AWG Polyurethane |
| Jacket and PVC Conductor |
| Insulation Over 65 X #36 |
| Copper Stranding, 300V, |
| UL Style 20549, |
| CSA AWM l/ll A/B |
| 3P - .27" (6.9mm) |
| 4P - .29" (7.4mm) |
| 250 V AC/DC |
| 3P - 4A |
| 4P - 4A |
| IP 68, NEMA 6P |
| -4° TO 221° F (-20° TO 105° C) |
| UL Listed, File NO. E152210 |
| CSA Certified, File NO. LR6837 |
Part Number Selector
| 3P | 4P | |
| FEMALE FACE VIEW |
 |
 |
| COLOR CODE | 1 - brown 2 - not used 3 - blue 4 - black 5 - not used | 1 - brown 2 - white 3 - blue 4 - black 5 - not used |
| VOLTAGE | 250V AC/DC | 250V AC/DC |
| CURRENT | 4A | 4A |
| CONDUCTOR | #18-3 | #18-4 |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | ||
| FEMALE | SINGLE-ENDED CORDSETS WITH #18 AWG HIGH FLEX PUR CABLE 2 METERS LONG | |
| STRAIGHT | 803000B02M020 | 804000B02M020 |
| 90° | 803001B02M020 | 804001B02M020 |

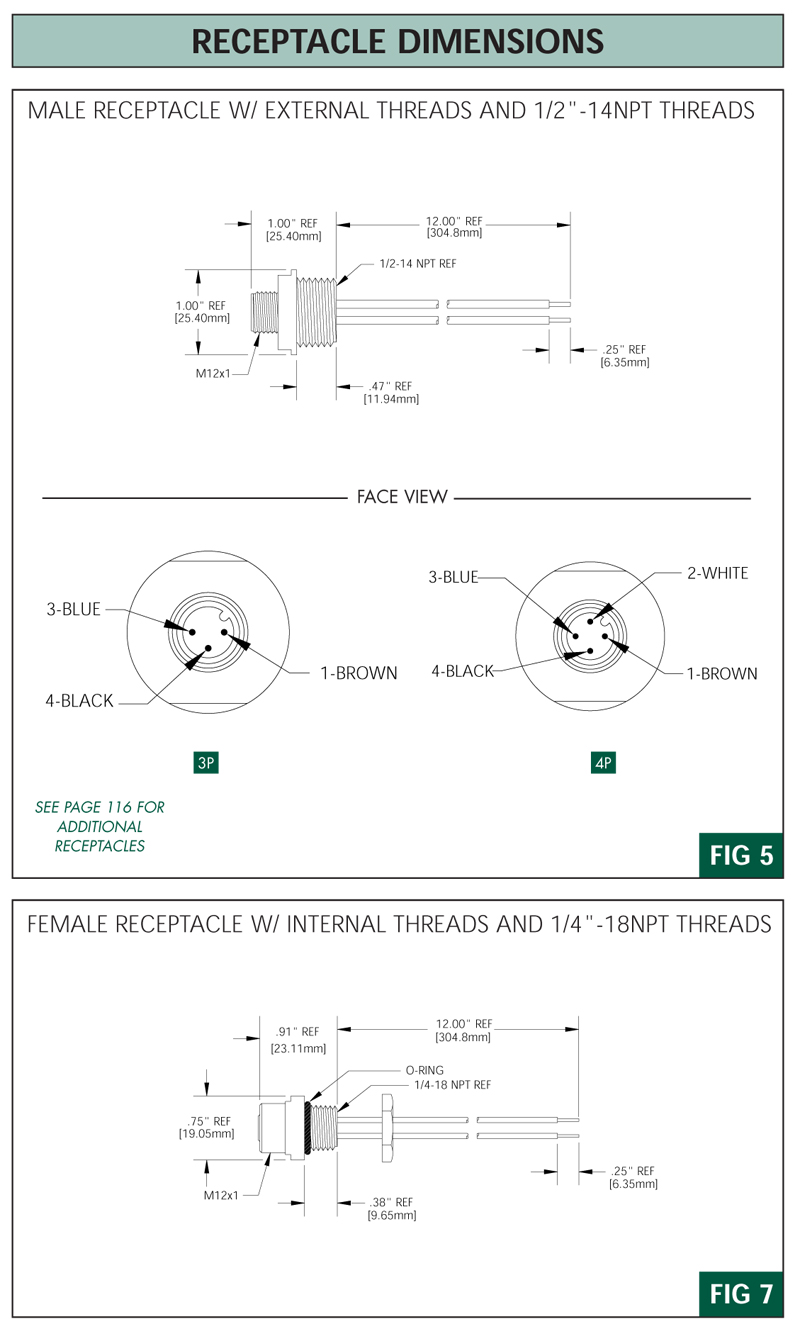

| MATING RECEP. | 8R3006A16A120 | 8R4006A16A120 |
| MALE | SINGLE-ENDED CORDSETS WITH #18 AWG HIGH FLEX PUR CABLE 2 METERS LONG | |
| STRAIGHT | 803006B02M020 | 804006B02M020 |
| MATING RECEP. | 8R3A00A16A120 | 8R4A00A16A120 |
| FEMALE/MALE | DOUBLE-ENDED CORDSETS WITH #18 AWG HIGH FLEX PUR CABLE 2 METERS LONG | |
| STRAIGHT/STRAIGHT | 883030B02M020 | 884030B02M020 |
| 90°/STRAIGHT | 883031B02M020 | 884031B02M020 |
