Micro-Change | Receptacles | 3-5 Poles | Single Keyway M12
#22 AWG PVC 12 Inch Leads - DC Color Code, Epoxy Potted
Black Anodized Aluminum Shell
Used in Control Panels Junction Boxes and Sensors
| MECHANICAL |
| Shell: |
| Insert: |
| Conductors: |
| O-Ring: |
| ELECTRICAL |
| Voltage Rating: |
| Amperage: |
| ENVIRONMENTAL |
| Protection: |
| Ambient Oper. Temp: |
| CERTIFICATIONS |
| UL: |
| CSA: |
| Black Anodized Aluminum |
| Optional Stainless Steel Type |
| 303 |
| Nylon 6/6 |
| #22 AWG with PVC Insulation |
| Over 26 X #36 Copper Stranding, |
| 300V, UL Style 1061, |
| CSA AWM SR |
| Nitrile Rubber |
| 250V AC/DC |
| 3P - 4A |
| 4P - 4A |
| 5P - 4A |
| IP 68, NEMA 6P |
| -4° TO 176° F (-20° TO 80°C) |
| 3P & 4P UL Listed, |
| File NO. E152210; |
| 5P UL Recognized |
| CSA Certified, File NO. LR6837 |
Part Number Selector
| 3P | 4P | 5P | |
| MALE FACE VIEW |
 |
 |
 |
| COLOR CODE | 1 - brown 2 - blue 3 - black | 1 - brown 2 - white 3 - blue 4 - black | 1 - brown2 - white3 - blue4 - black5 - gray |
| VOLTAGE | 250V AC/DC | 250V AC/DC | 250V AC/DC |
| CURRENT | 4A | 4A | 4A |
| CONDUCTOR | #22-3 | #22-4 | #22-5 |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | |||

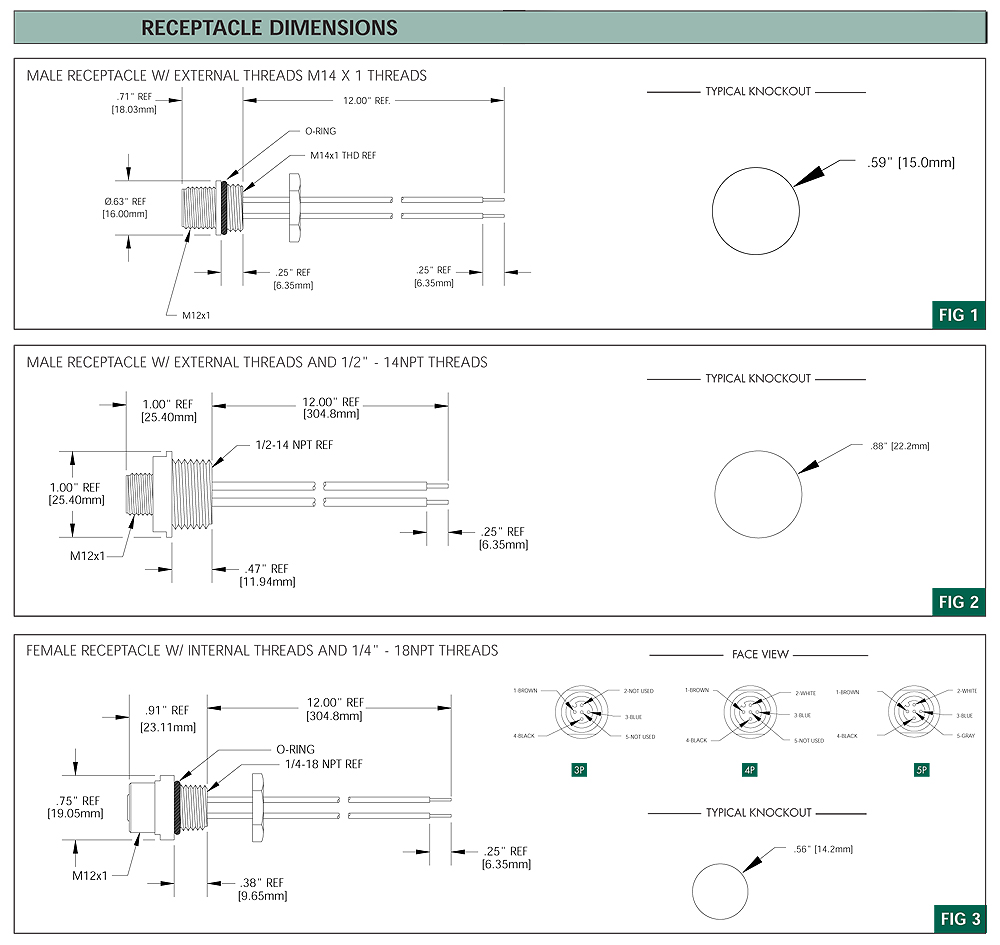

| MALE | RECEPTACLES WITH #22 AWG PVC LEADS 12 INCHES LONG | ||

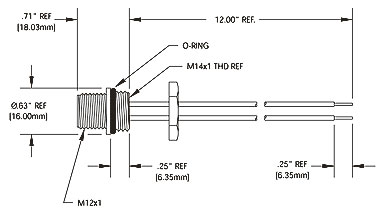

| M14 X 1 THREAD | 8R3E06A18A120 | 8R4E06A18A120 | 8R5E06A18A120 |
| 1/2" - 14NPT | 8R3006A18A120 | 8R4006A18A120 | 8R5006A18A120 |
| FEMALE | RECEPTACLES WITH #22 AWG PVC LEADS 12 INCHES LONG | ||
| 1/4" - 18NPT | 8R3A00A18A120 | 8R4A00A18A120 | 8R5A00A18A120 |
