Micro-Change | Field-Attachable Connectors | Dual Keyway 1/2" - 20 UNF
Screw Terminal Connection Accepts #18 AWG Conductors Maximum
Easy Field Installation of Quick-Disconnect Design
For Use With All Standard Dual Keyway 1/2" - 20 UNF Receptacles and Cordsets
| MECHANICAL |
| Connector Face: |
| Molded Body: |
| Contact: |
| Coupling Nut: |
| Grommet: |
| Maximum Conductor Size: |
| ELECTRICAL |
| Voltage Rating: |
| Amperage: |
| ENVIRONMENTAL |
| Protection: |
| Ambient Oper. Temp: |
| Nylon 6/6 |
| Nylon 6/6 |
| Gold Plated Copper Alloy |
| Nickel Plated Brass |
| Nitrile Rubber |
| 18 AWG |
| 250V AC/DC |
| 3P - 4A |
| IP 68 |
| -40° TO 185° F (-40° TO 85°C) |
Part Number Selector
| 3P | |
| FEMALE FACE VIEW |
 |
| MALE FACE VIEW |
 |
| VOLTAGE | 250V AC/DC |
| CURRENT | 4A |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | |

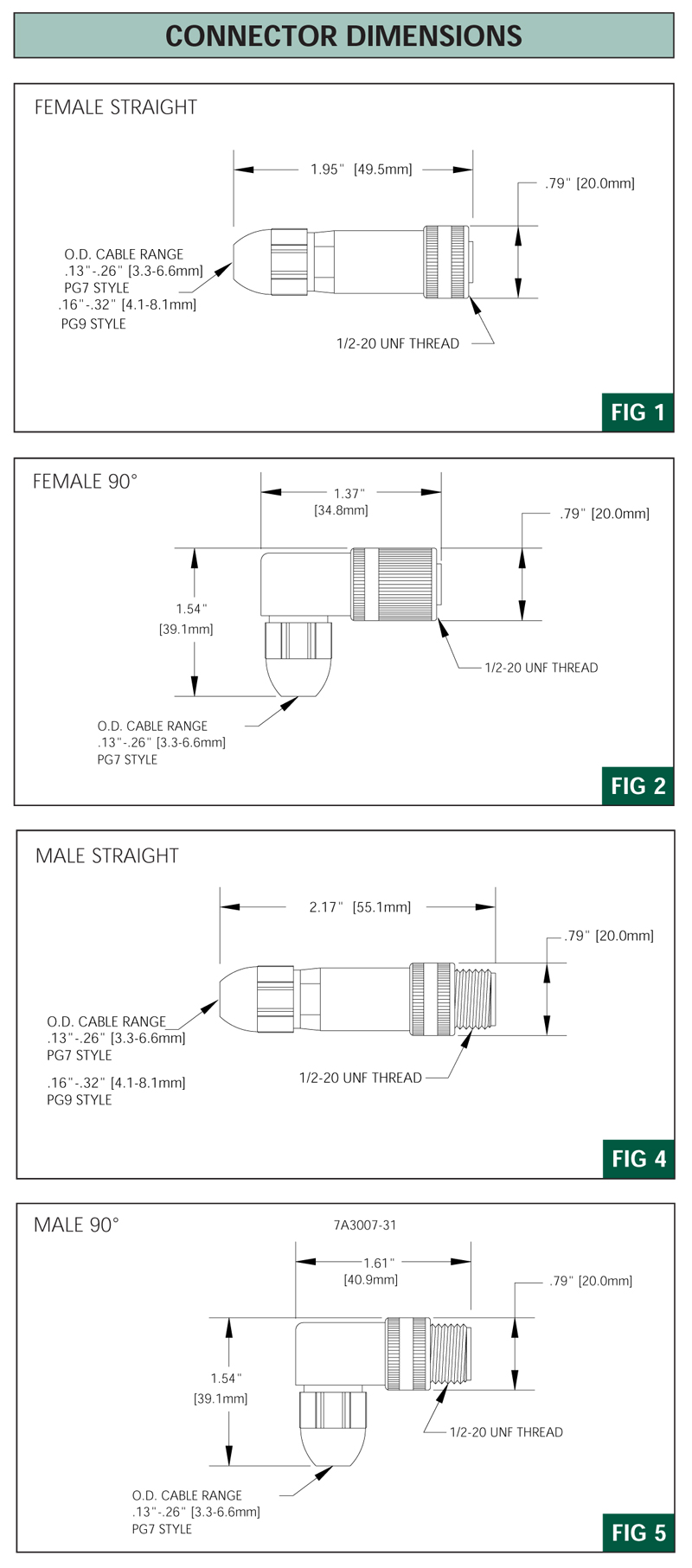

| FEMALE | FIELD-ATTACHABLE CONNECTORS WITH PG 7 CABLE FITTING (.13 - .26"OD [3.3 - 6.6mm] CABLE) |
| STRAIGHT |
7A3000-31 |
| 90° | 7A3001-31 |
| FEMALE | FIELD-ATTACHABLE CONNECTORS WITH PG 9 CABLE FITTING (.16 - 32" OD [4.1 - 8.1mm] CABLE) |
| STRAIGHT | 7A3000-32 |

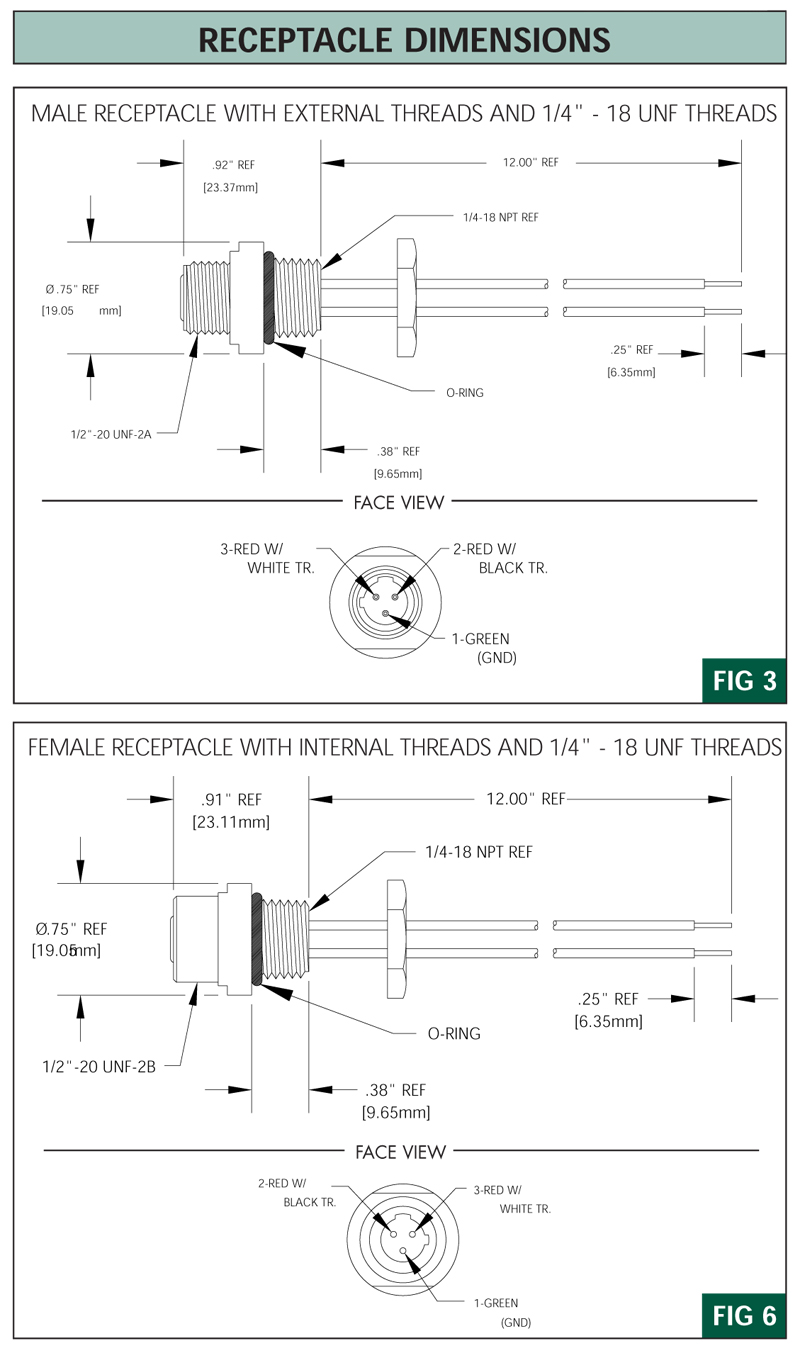

| MATING RECEP. | 7R3A06A19A120 |
| MALE | FIELD-ATTACHABLE CONNECTORS WITH PG 7 CABLE FITTING (.13 - .26"OD [3.3 - 6.6mm] CABLE) |
| STRAIGHT |
7A3006-31 |
| 90° | 7A3007-31 |
| MALE | FIELD-ATTACHABLE CONNECTORS WITH PG 9 CABLE FITTING (.16 - 32" OD [4.1 - 8.1mm] CABLE) |
| STRAIGHT | 7A3006-32 |
| MATING RECEP. | 7R3A00A19A120 |
