Micro-Change | Receptacles | 2-6 Poles | Dual Keyway
#22 AWG PVC 12 Inch Leads - Auto Color Code, Epoxy Potted
Gray Anodized Aluminum Shell
Used in Control Panels, Junction Boxes and Sensors
| MECHANICAL |
| Shell: |
| Insert: |
| O-Ring |
| Conductors: |
| ELECTRICAL |
| Voltage Rating: |
| Amperage: |
| ENVIRONMENTAL |
| Protection: |
| Ambient Oper. Temp: |
| CERTIFICATIONS |
| UL: |
| CSA: |
| Gray Anodized Aluminum |
| Nylon 6/6 |
| Nitrile Rubber |
| #22 AWG with PVC Insulation |
| Over 26 X #36 Copper Stranding, |
| 300V, UL Style 1061, |
| CSA AWM SR |
| #18 AWG with PVC Insulation |
| Over 26 X #30 Copper Stranding, |
| 300V, UL Style 1061, |
| CSA AWM SR |
| 240V AC/DC |
| 2P - 4A |
| 3P - 4A |
| 4P - 4A |
| 5P - 4A |
| 6P - 4A |
| IP 68, NEMA 6P |
| -4° TO 176° F (-20° TO 80° C) |
| UL Listed, File NO. E152210 |
| CSA Certified, File NO. LR6837 |
Part Number Selector
| 2P | 3P | 4P | 5P | 6P | |
| MALE FACE VIEW |
 |
 |
 |
 |
 |
| COLOR CODE | 1 - brown 2 - blue | 1 - green-gnd 2 - red-black trace 3 - red-white trace | 1 - red-black trace2 - red-white trace3 - red4 - green-gnd | 1 - red-white trace 2 - red 3 - green-gnd 4 - red-yellow trace 5 - red-black trace | 1 - red-white trace 2 - red 3 - green-gnd 4 - red-yellow trace 5 - red-black trace 6 - red-blue trace |
| VOLTAGE | 250V AC/DC | 250V AC/DC | 250V AC/DC | 250V AC/DC | 250V AC/DC |
| CURRENT | 4A | 4A | 4A | 4A | 4A |
| CONDUCTOR | #22-2 | #22-3 | #22-4 | #22-5 | #22-6 |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | |||||

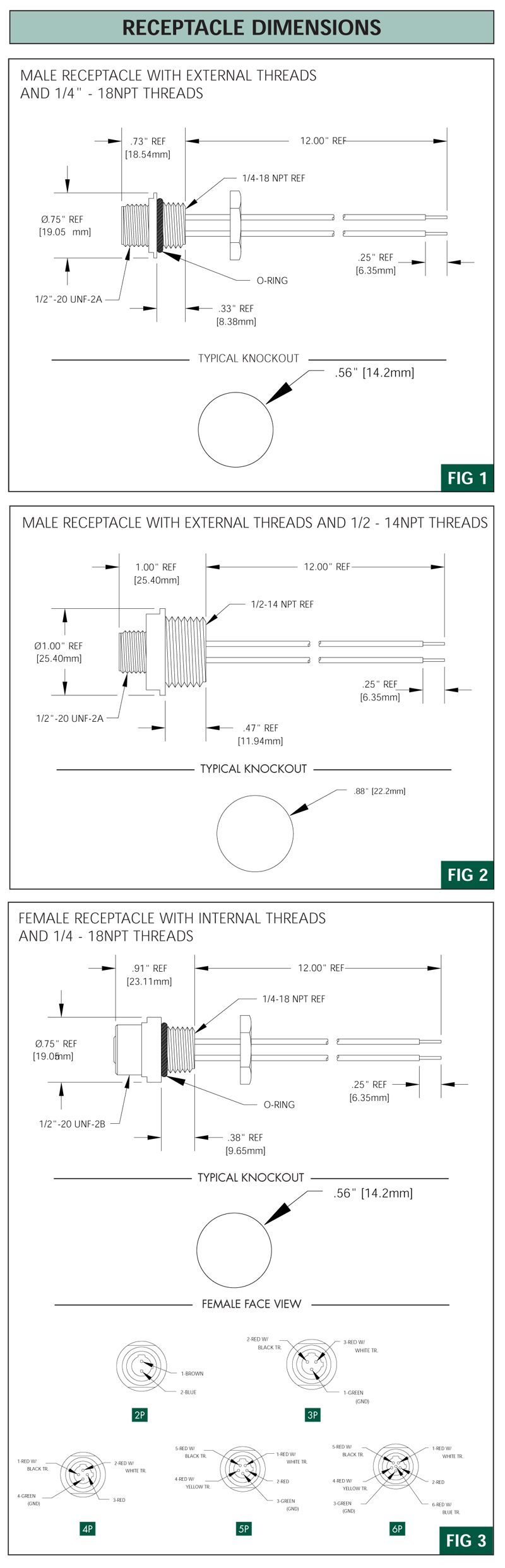

| MALE | RECEPTACLES WITH #22 AWG PVC LEADS 12 INCHES LONG | ||||

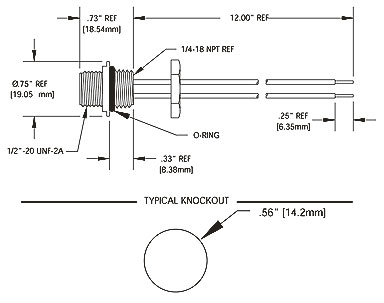

| 1/4" NPT THREADS |
7R2A06A19A120 | 7R3A06A19A120 | 7R4A06A19A120 | 7R5A06A19A120 | 7R6A06A19A120 |
| 1/2" NPT THREADS |
7R2006A19A120 | 7R3006A19A120 | 7R4006A19A120 | 7R5006A19A120 | 7R6006A19A120 |
| FEMALE | RECEPTACLES WITH #22 AWG PVC LEADS 12 INCHES LONG | ||||
| 1/4" NPT THREADS |
7R2A00A19A120 | 7R3A00A19A120 | 7R4A00A19A120 | 7R5A00A19A120 | 7R6A00A19A120 |
