Micro-Change | Single-Ended Cordsets | 3 & 4 Poles | Single Keyway M12
#18 AWG SJOOW Cable - DC Color Code
Oil- and Abrasion-Resistant Jacket
Highly Reliable Low-Resistance Contact Design with Gold/Palladium Nickel Plating
| MECHANICAL |
| Connector Face: |
| Molded Body: |
| O-Ring: |
| Coupling Nut: |
| Cable: |
| Outside Diameter: |
| ELECTRICAL |
| Voltage Rating: |
| Amperage: |
| ENVIRONMENTAL |
| Protection: |
| Ambient Oper. Temp: |
| CERTIFICATIONS |
| UL: |
| CSA: |
| Nylon 6/6 |
| PVC |
| Nitrile Rubber |
| Zinc Diecast w/ Black Epoxy |
| Coat, Optional Stainless Steel |
| Type 303 or Non-Metallic |
| Black Delrin |
| Yellow #18 AWG Thermoset |
| Rubber Jacket and EPDM |
| Conductor Insulation Over |
| 41 X #34 Copper Stranding, |
| 300V, UL Style SJOOW, |
| CSA Certified SJOW |
| 3P - .32" (8.3mm) |
| 4P - .33" (8.4mm) |
| 250 V AC/DC |
| 3P - 4A |
| 4P - 4A |
| IP 68, NEMA 6P |
| -4° TO 221° F (-20° TO 105° C) |
| UL Listed, File NO. E152210 |
| CSA Certified, File NO. LR6837 |
Part Number Selector
| 3P | 4P | |
| FEMALE FACE VIEW |
 |
 |
| COLOR CODE | 1 - brown 2 - not used 3 - blue 4 - black 5 - not used | 1 - brown 2 - white 3 - blue 4 - black 5 - not used |
| VOLTAGE | 250V AC/DC | 250V AC/DC |
| CURRENT | 4A | 4A |
| CONDUCTOR | #18-3 | #18-4 |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | ||

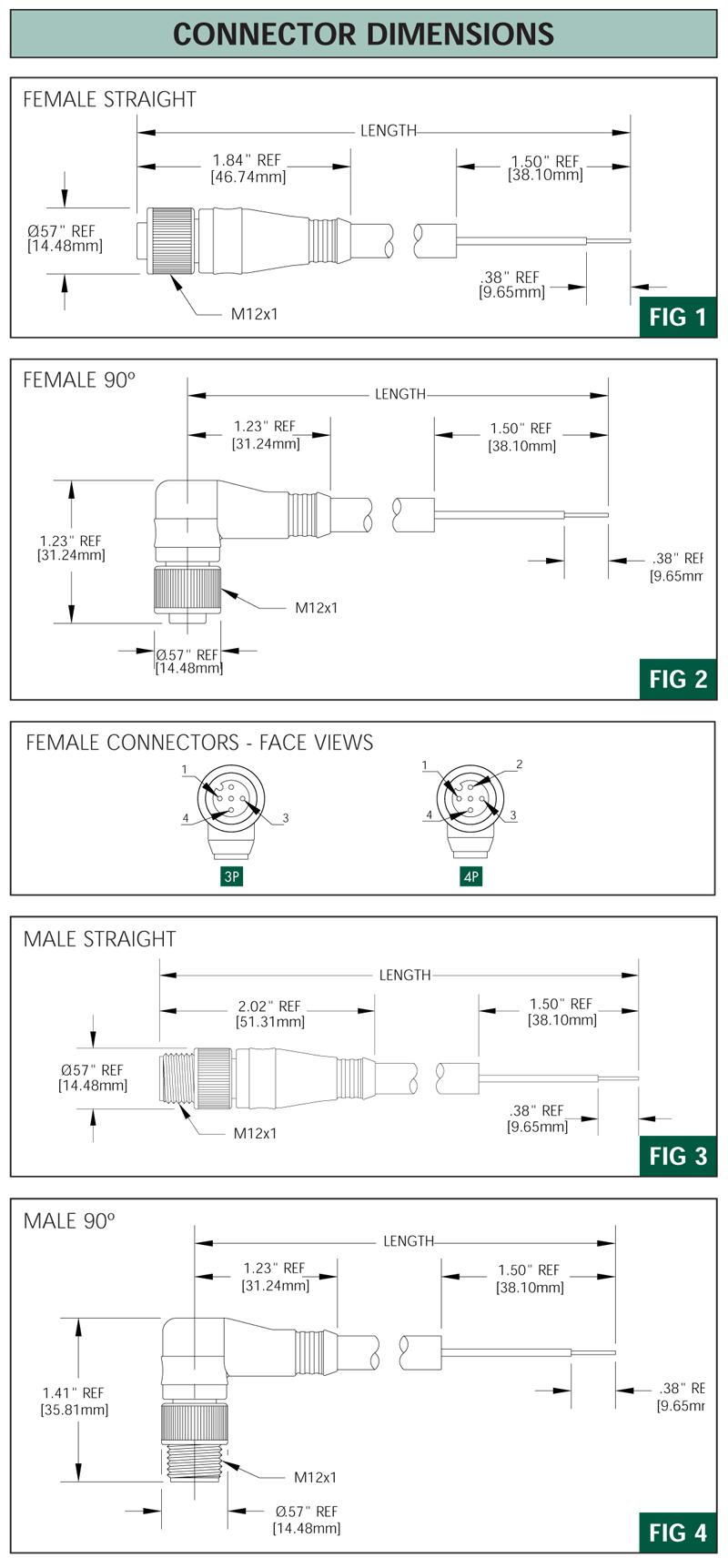

| FEMALE | SINGLE-ENDED CORDSETS WITH #18 AWG SJOOW CABLE 2 METERS LONG | |
| STRAIGHT | 803000C02M020 | 804000C02M020 |
| 90° | 803001C02M020 | 804001C02M020 |

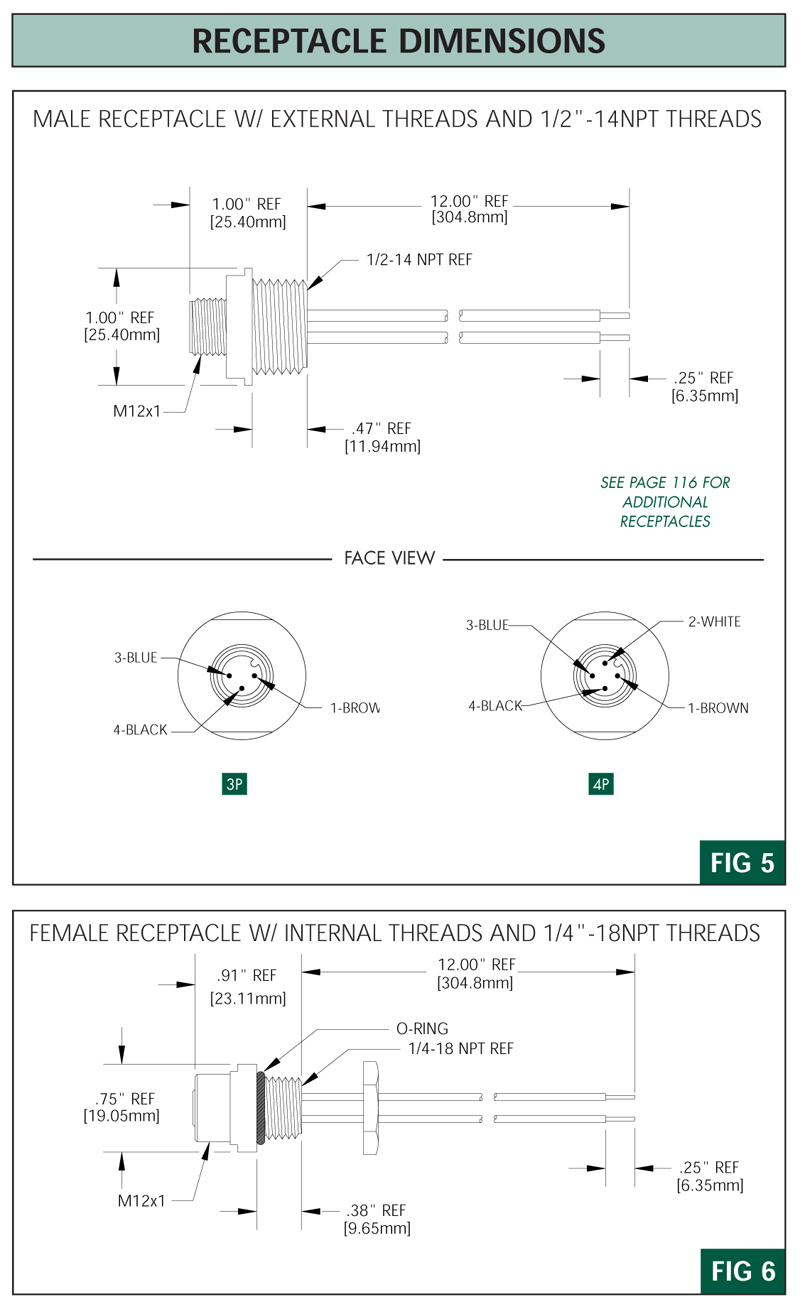

| MATING RECEP. | 8R3006A16A120 | 8R4006A16A120 |
| MALE | SINGLE-ENDED CORDSETS WITH #18 AWG SJOOW CABLE 2 METERS LONG | |
| STRAIGHT | 803006C02M020 | 804006C02M020 |
| 90° | 803007C02M020 | 804007C02M020 |
| MATING RECEP. | 8R3A00A16A120 | 8R4A00A16A120 |
