Micro-Change | Single-Ended Cordsets | 2-6 Poles | Dual Keyway 1/2" - 20 UNF
#22 AWG Yellow PVC Cable with Metallic Braid - Auto Color Code
#18 AWG Yellow PVC Cable without Metallic Braid - Auto Color Code
Low-Resistance Contact Design with Gold/Palladium Nickel Plating
| MECHANICAL |
| Connector Face: |
| Molded Body: |
| O-Ring: |
| Coupling Nut: |
| Cable: |
| ELECTRICAL |
| Voltage Rating: |
| Amperage: |
| Nylon 6/6 |
| PVC |
| Nitrile Rubber |
| Zinc Diecast w/ Black Epoxy |
| Coat, Optional Stainless Steel |
| Type 303 or Non-Metallic |
| White Delrin |
| Yellow #22 AWG PVC Jacket |
| 70% Metallic Braid and PVC |
| Conductor Insulation Over |
| 26 X #36 Copper Stranding, |
| 300V, UL Style 2661, |
| CSA AWM l/ll A/B |
| Yellow #18 AWG PVC Jacket and |
| PVC Conductor Insulation Over |
| 41 X #34 Copper Stranding, |
| 300V, UL Style 2661, |
| CSA AWM l/ll A/B |
| 250V AC/DC |
| 2P - 4A |
| 3P - 4A |
| 4P - 4A |
| 5P - 4A |
| 6P - 4A |
Part Number Selector
| 2P | 3P | 4P | 5P | 6P | |

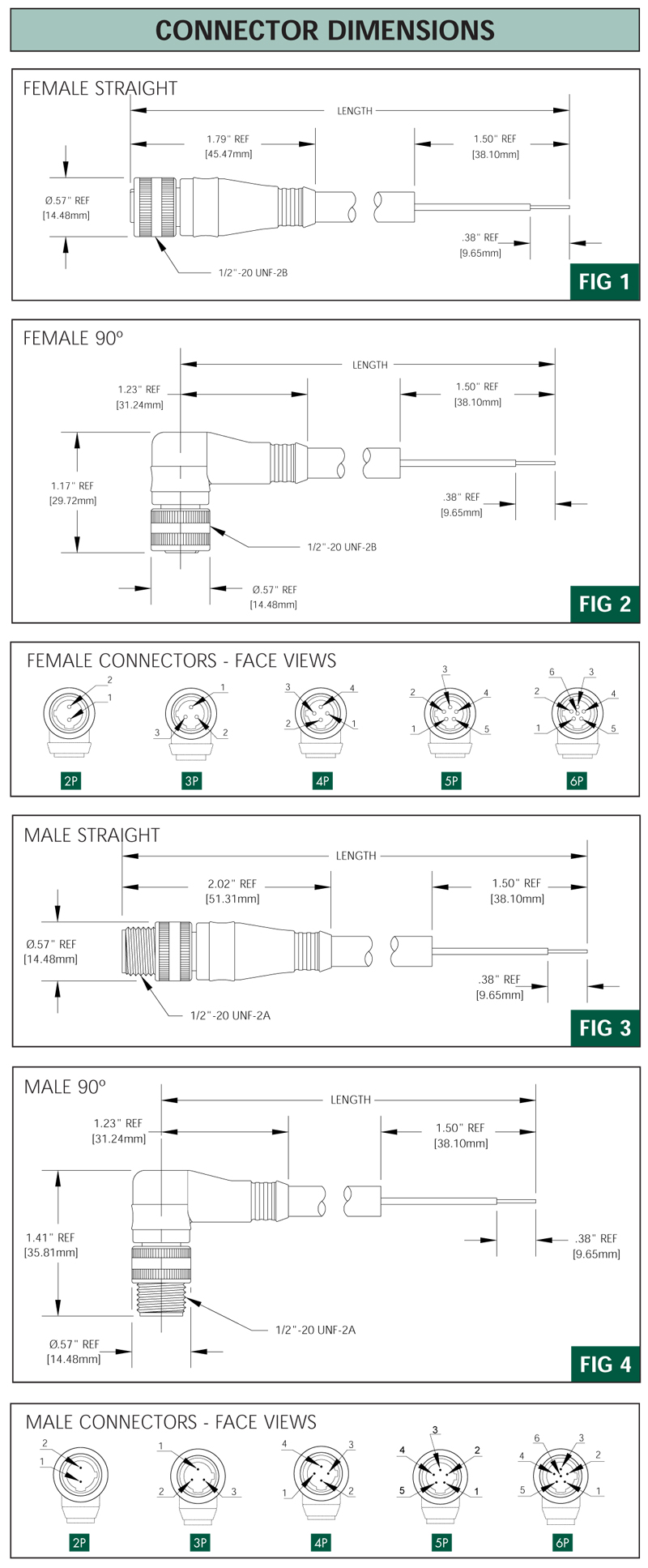

| FEMALE FACE VIEW |
 |
 |
 |
 |
 |
| COLOR CODE | 1 - brown 2 - blue | 1 - green-gnd 2 - red-black trace 3 - red-white trace | 1 - red-black trace2 - red-white trace3 - red4 - green-gnd | 1 - red-white trace 2 - red 3 - green-gnd 4 - red-yellow trace 5 - red-black trace | 1 - red-white trace 2 - red 3 - green-gnd 4 - red-yellow trace 5 - red-black trace 6 - red-blue trace |
| VOLTAGE | 250V AC/DC | 250V AC/DC | 250V AC/DC | 250V AC/DC | 250V AC/DC |
| CURRENT | 4A | 4A | 4A | 4A | 4A |
| CONDUCTOR | #22-2 | #22-3 | #22-4 | #22-5 | #22-6 |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | |||||
| FEMALE | SINGLE-ENDED CORDSETS WITH #22 AWG PVC CABLE WITH BRAID 6 FEET LONG | ||||
| STRAIGHT |
702000D02F060 | 703000D02F060 | 704000D02F060 | 705000D02F060 | 706000D02F060 |
| 90° | 702001D02F060 | 703001D02F060 | 704001D02F060 | 705001D02F060 | 706001D02F060 |

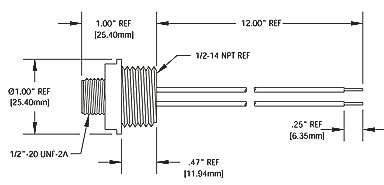

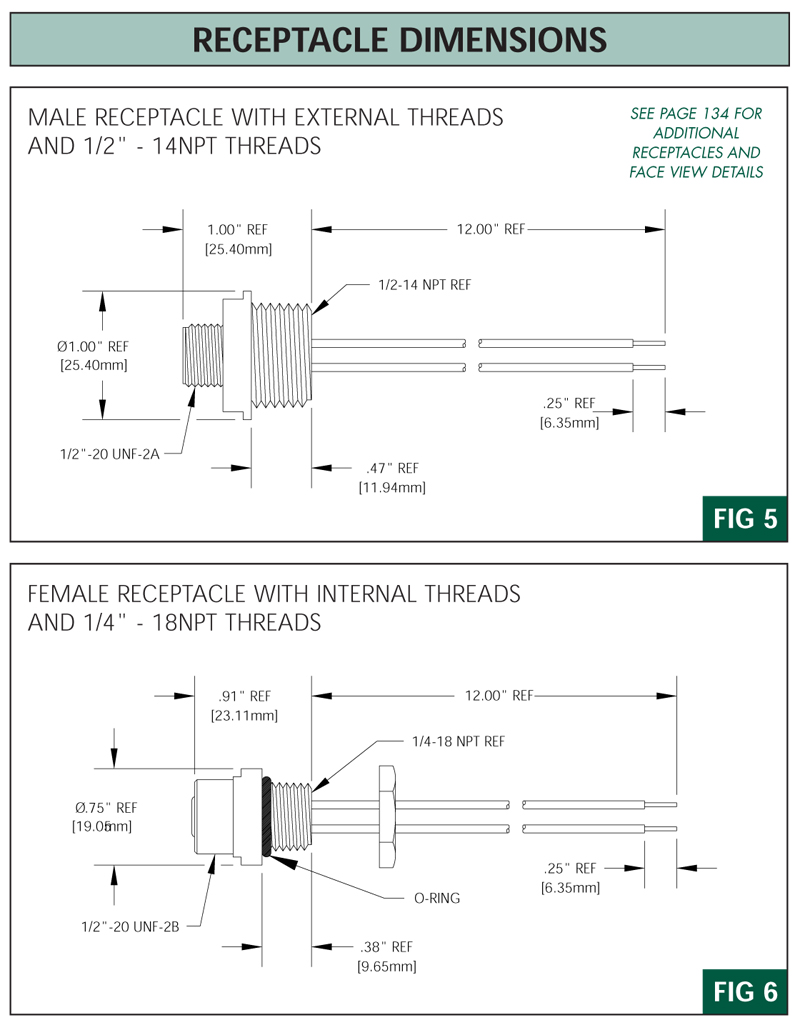

| MATING RECEP. | 7R2006A19A120 | 7R3006A19A120 | 7R4006A19A120 | 7R5006A19A120 | 7R6006A19A120 |
| MALE | SINGLE-ENDED CORDSETS WITH #22 AWG PVC CABLE WITH BRAID 6 FEET LONG | ||||
| STRAIGHT |
702006D02F060 | 703006D02F060 | 704006D02F060 | 705006D02F060 | 706006D02F060 |
| 90° | 702007D02F060 | 703007D02F060 | 704007D02F060 | 705007D02F060 | 706007D02F060 |
| MATING RECEP. | 7R2A00A19A120 | 7R3A00A19A120 | 7R4A00A19A120 | 7R5A00A19A120 | 7R6A00A19A120 |
