Micro-Change | Single-Ended Cordsets | 2-5 Poles | Dual Keyway 1/2" - 20 UNF
#18 AWG Yellow PUR High-Flex Cable - Auto Color Code
Oil- and Abrasion-Resistant Polyurethane Jacket
Low-Resistance Contact Design with Gold/Palladium Nickel Plating
| MECHANICAL |
| Connector Face: |
| Molded Body: |
| O-Ring: |
| Coupling Nut: |
| Cable: |
| Outside Diameter: |
| ELECTRICAL |
| Voltage Rating: |
| Amperage: |
| ENVIRONMENTAL |
| Protection: |
| Ambient Oper. Temp: |
| CERTIFICATIONS |
| UL: |
| CSA: |
| Nylon 6/6 |
| Polyurethane |
| Viton |
| Zinc Diecast w/ Black Epoxy |
| Coat, Optional Stainless Steel |
| Type 303 |
| Yellow #18 AWG Polyurethane |
| Jacket and PVC Conductor |
| Insulation Over 65 X #36 Copper |
| Stranding, 300V, |
| UL Style 20549, |
| CSA AWM l/ll A/B |
| 2P - .24" (6.1mm) |
| 3P - .27" (6.9mm) |
| 4P - .29" (7.4mm) |
| 5P - .32" (8.1mm) |
| 250V AC/DC |
| 2P - 4A |
| 3P - 4A |
| 4P - 4A |
| 5P - 4A |
| IP 68, NEMA 6P |
| -4° TO 176° F (-20° TO 80° C) |
| UL Listed, File NO. E152210 |
| CSA Certified, File NO. LR6837 |
Part Number Selector
| 2P | 3P | 4P | 5P | |

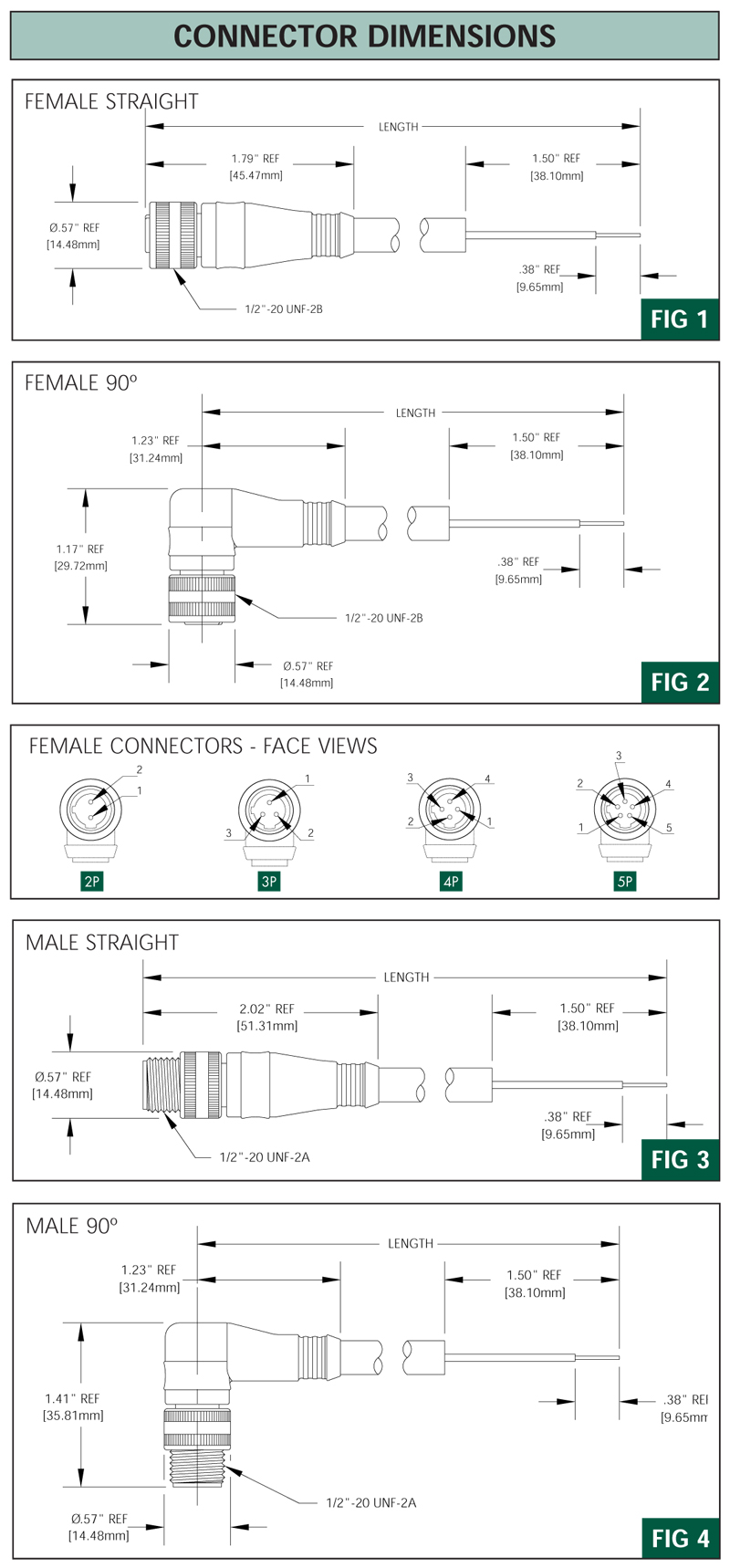

| FEMALE FACE VIEW |
 |
 |
 |
 |
| COLOR CODE | 1 - brown 2 - blue | 1 - green-gnd 2 - red/black 3 - red/white | 1 - red/black2 - red/white3 - red4 - green-gnd | 1 - red/white 2 - red 3 - green-gnd 4 - red/yellow 5 - red/black |
| VOLTAGE | 250V AC/DC | 250V AC/DC | 250V AC/DC | 250V AC/DC |
| CURRENT | 4A | 4A | 4A | 4A |
| CONDUCTOR | #18-2 | #18-3 | #18-4 | #18-5 |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | ||||
| FEMALE | SINGLE-ENDED CORDSETS WITH #18 AWG HIGH FLEX PUR CABLE 6 FEET LONG | |||
| STRAIGHT |
702000B01F060 | 703000B01F060 | 704000B01F060 | 705000B01F060 |
| 90° | 702001B01F060 | 703001B01F060 | 704001B01F060 | 705001B01F060 |

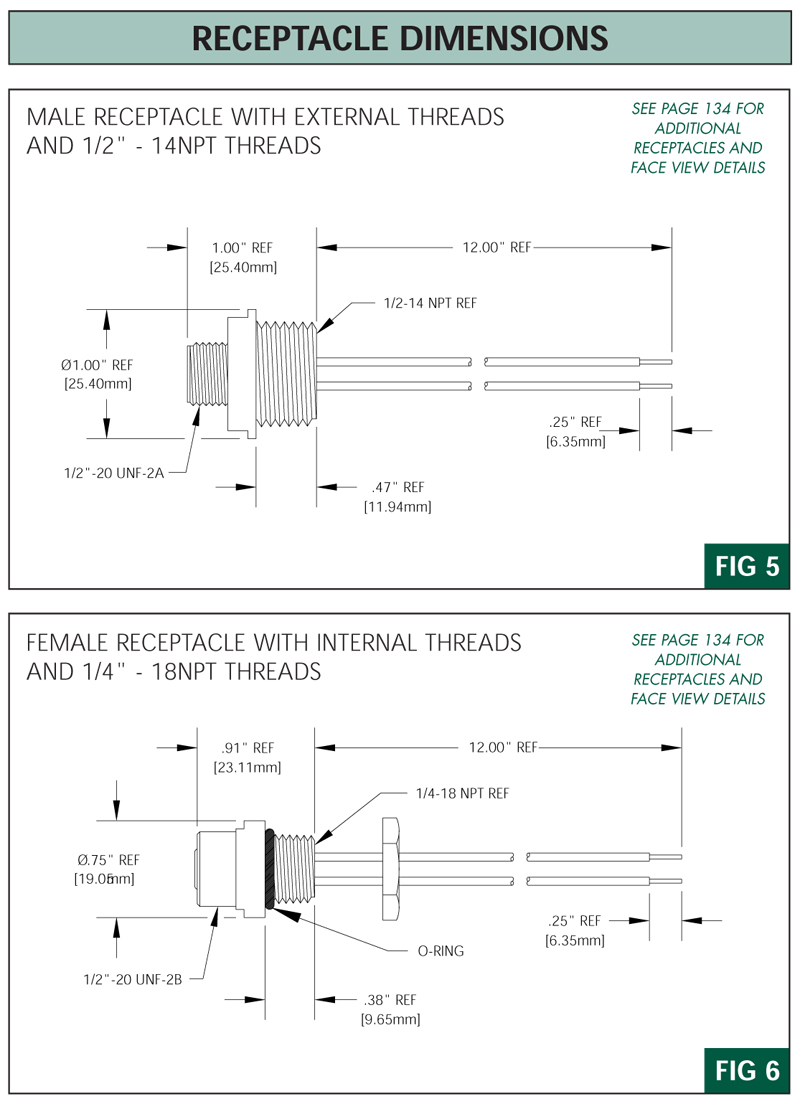

| MATING RECEP. | 7R2006A19A120 | 7R3006A19A120 | 7R4006A19A120 | 7R5006A19A120 |
| MALE W/ EXT. THREADS | SINGLE-ENDED CORDSETS WITH #18 AWG HIGH FLEX PUR CABLE 6 FEET LONG | |||
| STRAIGHT |
702006B01F060 | 703006B01F060 | 704006B01F060 | 705006B01F060 |
| 90° | 702007B01F060 | 703007B01F060 | 704007B01F060 | 705007B01F060 |
| MATING RECEP. | 7R2A00A19A120 | 7R3A00A19A120 | 7R4A00A19A120 | 7R5A00A19A120 |
