Mini-Change | Single & Double-Ended Cordsets | 3 & 5 Poles
#18 AWG Yellow TPE Universal High Flex Cable - Auto Color Code
Excellent Chemical-, Oil-, and Weld Slag-Resistance
Low-Resistance Contact Design with Gold/Palladium Nickel Plating
| MECHANICAL |
| Connector Face: |
| Molded Body: |
| Coupling Nut: |
| Coupler Size: |
| Cable: |
| Outside Diameter: |
| ELECTRICAL |
| Voltage Rating: |
| Amperage: |
| ENVIRONMENTAL |
| Protection: |
| Ambient Oper. Temp: |
| CERTIFICATIONS |
| UL: |
| CSA: |
| PVC - UL STD 94 - V0 |
| PVC - UL STD 94 - V0 |
| Zinc Diecast w/ Black Epoxy |
| E-Coat, Optional Stainless Steel |
| Type 303 or Non-Metallic Gray |
| Nylon 6/6 |
| 1" |
| Yellow, #18 AWG, TPE Jacket & |
| PVC Conductor Insulation Over |
| 41 X #34 Copper Stranding, |
| 300V, UL Style 20626, |
| CSA AWM l/ll A/B |
| 3P - .26" (6.6mm) |
| 5P - .30" (7.6mm) |
| 300 V AC/DC |
| 3P - 10A |
| 5P - 5.6A |
| IP 68, NEMA 6P |
| -4° TO 221° F (-20° TO 105° C) |
| UL Recognized, File NO. E46237 |
| CSA Certified, File NO. LR6837 |
Part Number Selector
| 3P | 5P | |
| FEMALE FACE VIEW |
 |
 |
| COLOR CODE | 1 - green-gnd 2 - red w/ black trace 3 - red w/ white trace | 1 - red w/ white trace 2 - red 3 - green-gnd 4 - red w/ yellow trace 5 - red w/ black trace |
| VOLTAGE | 300V AC/DC | 300V AC/DC |
| CURRENT | 10A | 5.6A |
| CONDUCTOR | #18-3 | #18-5 |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | ||

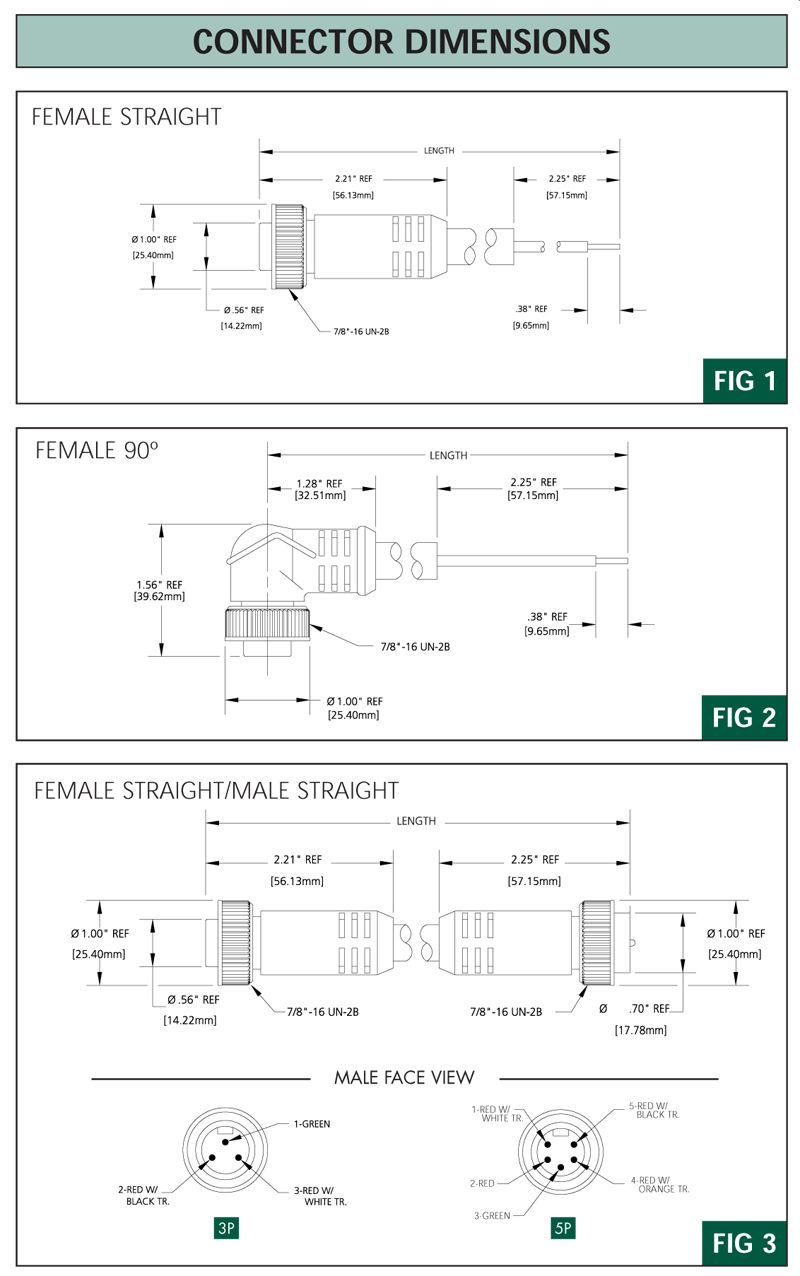

| FEMALE | SINGLE-ENDED CORDSETS WITH #18 AWG TPE CABLE 3 FEET LONG | |

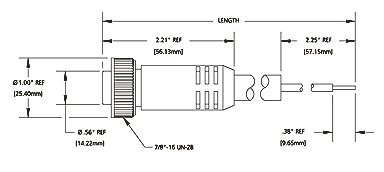

| STRAIGHT | 103000K02F030 | 105000K02F030 |
| 90° | 103001K02F030 | 105001K02F030 |

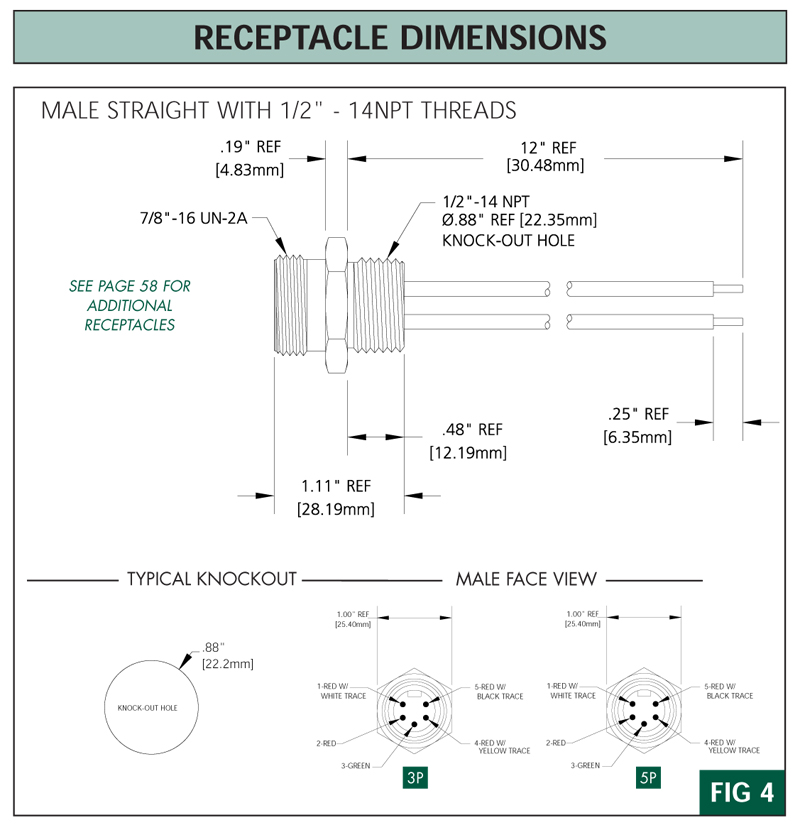

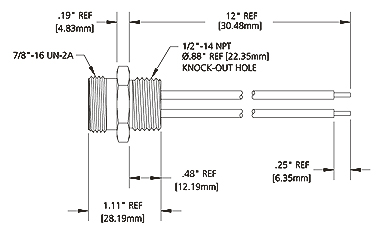

| MATING RECEP. | 1R3006A17A120 | 1R5006A17A120 |
| FEMALE/MALE | DOUBLE-ENDED CORDSETS WITH #18 AWG TPE CABLE 3 FEET LONG | |
| STRT./STRT. | 113020K02F030 | 115020K02F030 |
