Mini-Change | Receptacles | 3, 4 & 5 Poles
#18 AWG PVC 12-Inch Leads - Auto Color Code, Epoxy Potted
Straight Male & Female
Low-Resistance Contact Design with Gold/Palladium Nickel Plating

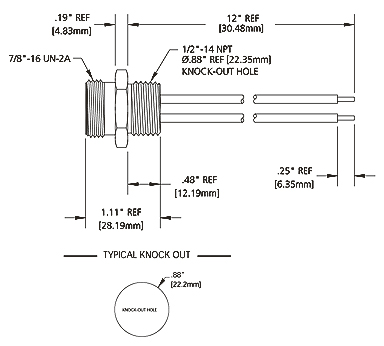

| MECHANICAL |
| Shell: |
| Insert: |
| Conductors: |
| ELECTRICAL |
| Voltage Rating: |
| Amperage: |
| ENVIRONMENTAL |
| Protection: |
| Ambient Oper. Temp: |
| CERTIFICATIONS |
| UL: |
| CSA: |
| Zinc Diecast w/ Black Epoxy |
| Coat, Optional Stainless Steel |
| Type 303 |
| PVC - UL STD 94 - V0 |
| #18 AWG PVC Insulation Over |
| 16 X #30 Copper Stranding, |
| 300V, UL Style 1061 CSA AWM |
| 300 V AC/DC |
| 3P - 10A |
| 4P - 7A |
| 5P - 5.6A |
| IP 68, NEMA 6P |
| -4° TO 176° F (-20° TO 80° C) |
| UL Recognized, File NO. E46237 |
| CSA Certified, File NO. LR6837 |

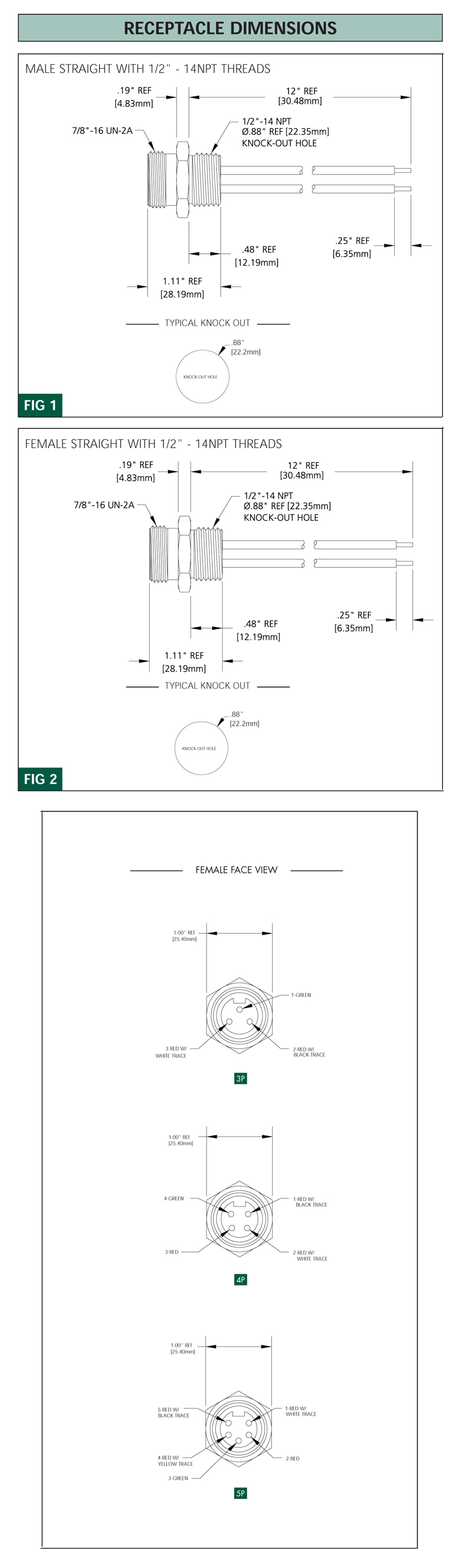

Part Number Selector
| 3P | 4P | 5P | |
| MALE FACE VIEW |
 |
 |
 |
| COLOR CODE | 1 - green-gnd 2 - red w/ black trace 3 - red w/ white trace | 1 - red w/ black trace2 - red w/ white trace3 - red4 - green-gnd | 1 - red w/ white trace 2 - red 3 - green-gnd 4 - red w/ yellow trace 5 - red w/ black trace |
| VOLTAGE | 300V AC/DC | 300V AC/DC | 300V AC/DC |
| CURRENT | 10A | 7A | 5.6A |
| CONDUCTOR | #18-3 | #18-4 | #18-5 |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | |||
| MALE | RECEPTACLES WITH #18 AWG PVC LEADS 12 INCHES LONG | ||
| STRAIGHT |
1R3006A17A120 | 1R4006A17A120 | 1R5006A17A120 |
| FEMALE | RECEPTACLES WITH #18 AWG PVC LEADS 12 INCHES LONG | ||
| STRAIGHT |
1R3004A17A120 | 1R4004A17A120 | 1R5004A17A120 |
| PART NO. | ACCESSORIES | ||
| 5601 | Lockout 1/2"-14NPT, zinc plated steel | ||
| 5611 | Gasket, black neoprene | ||
