Mini-Change | Single-Ended Cordsets | 6, 7 & 8 Poles
#16 AWG Yellow STOOW Cable - U.S. Color Code
Oil-Resistant PVC Jacket
Low-Resistance Contact Design with Gold/Palladium Nickel Plating

| MECHANICAL |
| Connector Face: |
| Molded Body: |
| Coupling Nut: |
| Coupler Size: |
| Cable: |
| Outside Diameter: |
| ELECTRICAL |
| Voltage Rating: |
| Amperage: |
| ENVIRONMENTAL |
| Protection: |
| Ambient Oper. Temp: |
| CERTIFICATIONS |
| UL: |
| CSA: |
| PVC - UL STD 94 - V0 |
| PVC - UL STD 94 - V0 |
| Zinc Diecast w/ Black Epoxy |
| Coat, Optional Stainless Steel |
| Type 303 |
| 1-1/8" |
| Yellow, #16 AWG, PVC Jacket & |
| PVC Conductor Insulation Over |
| 65 X #34 Copper Stranding, |
| 600V, UL STOOW CSA ST |
| 6P - .54" (13.7mm) |
| 7P - .54" (13.7mm) |
| 8P - .61" (15.5mm) |
| 600 V AC/DC |
| 6P - 8A |
| 7P - 8A |
| 8P - 7A |
| IP 68, NEMA 6P |
| -4° to 221° F (-20° to 105° C) |
| UL Recognized, File NO. E46237 |
| CSA Certified, File NO. LR6837 |

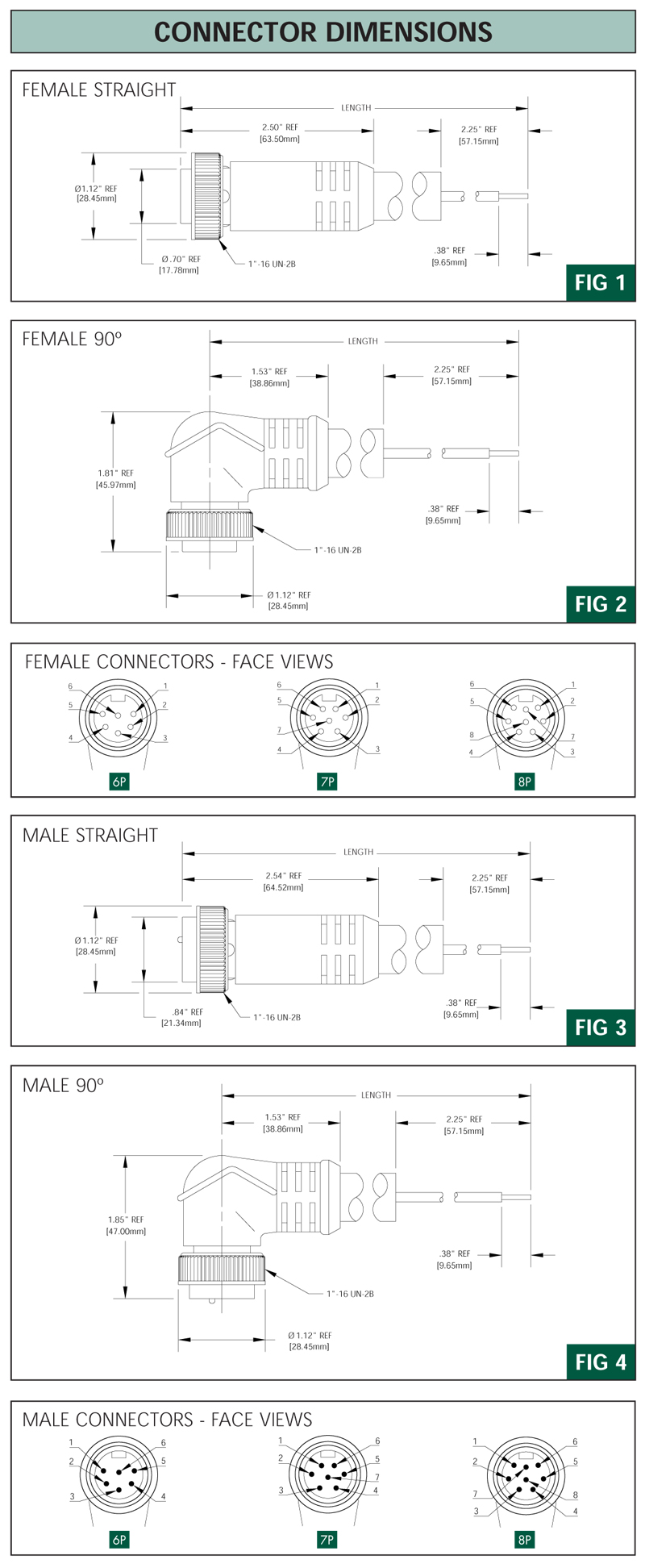

Part Number Selector
| 6P | 7P | 8P | |
| FEMALE FACE VIEW |
![]() |
![]() |
![]() |
| COLOR CODE | 1 - orange 2 - blue 3 - black 4 - white 5 - red 6 - green-gnd | 1 - white-black trace2 - black3 - white4 - red5 - orange6 - blue7 - green-gnd | 1 - orange 2 - blue 3 - white-black trace 4 - black 5 - white 6 - red7 - green-gnd8 - red-black trace |
| VOLTAGE | 600V AC/DC | 600V AC/DC | 600V AC/DC |
| CURRENT | 8A | 8A | 7A |
| CONDUCTOR | #16-6 | #16-7 | #16-8 |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | |||
| FEMALE | SINGLE-ENDED CORDSETS WITH #16 AWG ST00W CABLE 3 FEET LONG | ||
| STRAIGHT | 206000A01F030 | 207000A01F030 | 208000A01F030 |
| 90° | 206001A01F030 | 207001A01F030 | 208001A01F030 |

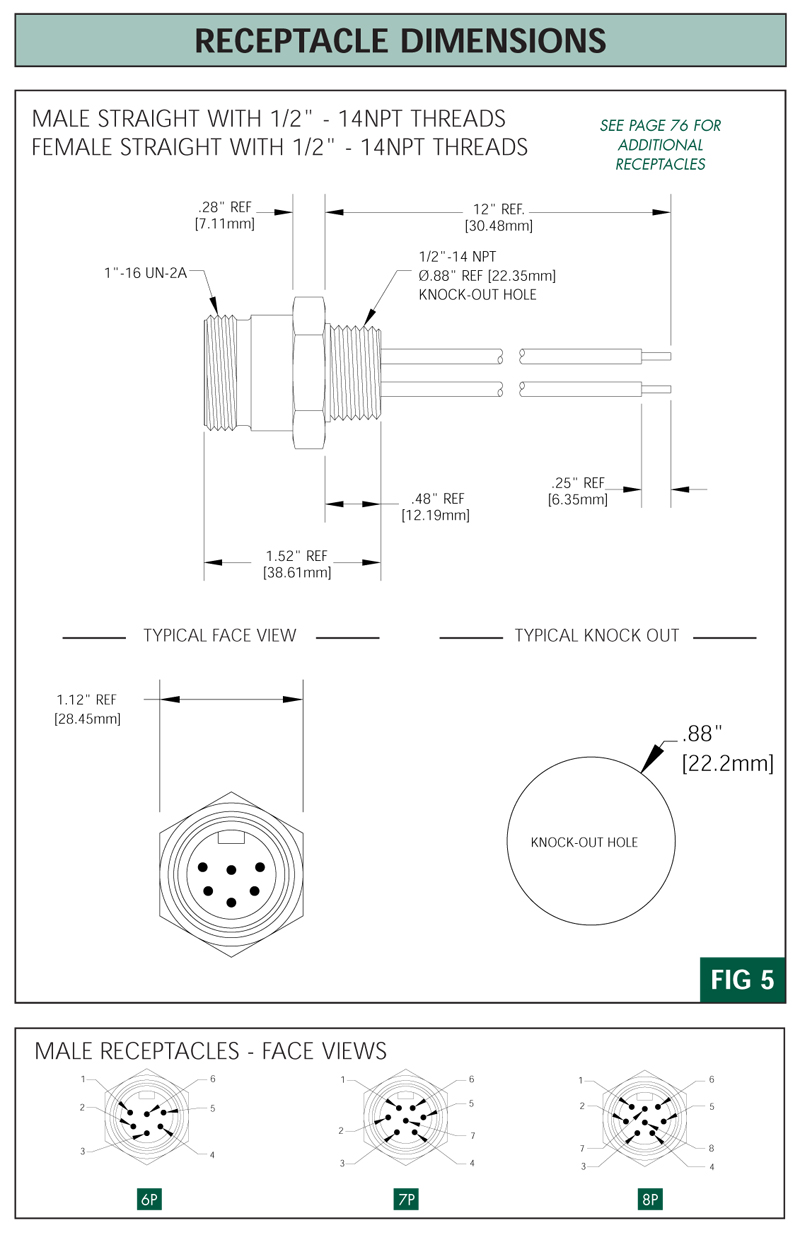

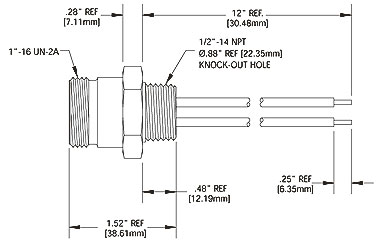

| MATING RECEP. | 2R6006A20A120 | 2R7006A20A120 | 2R8006A20A120 |
| MALE | SINGLE-ENDED CORDSETS WITH #16 AWG ST00W CABLE 3 FEET LONG | ||
| STRAIGHT | 206002A01F030 | 207002A01F030 | 208002A01F030 |
| 90° | 206003A01F030 | 207003A01F030 | 208003A01F030 |
| MATING RECEP. | 2R6004A20A120 | 2R7004A20A120 | 2R8004A20A120 |







Brad Harrison/Woodhead Products Distributed by Gross Automation | Brookfield, WI 262.233.1891
