Mini-Change | Receptacles | 6, 7 & 8 Poles
#16 AWG PVC 12-Inch Leads - U.S. Color Code, Epoxy Potted
Black Epoxy Coat Zinc Diecast Shell Design
Use in Control Panels, Junction Boxes & Sensors
| MECHANICAL |
| Shell: |
| Insert: |
| Conductors: |
| ELECTRICAL |
| Voltage Rating: |
| Amperage: |
| ENVIRONMENTAL |
| Protection: |
| Ambient Oper. Temp: |
| CERTIFICATIONS |
| UL: |
| CSA: |
| Zinc Diecast w/ Black Epoxy |
| Coat, Optional Stainless Steel |
| Type 303 |
| PVC - UL STD 94 - V0 |
| #16 AWG PVC Insulation Over |
| 26 X #30 Copper Stranding, |
| 600V, UL Style 1015 CSA TEW |
| 600 V AC/DC |
| 6P - 8A |
| 7P - 8A |
| 8P - 7A |
| IP 68, NEMA 6P |
| -4° to 221° F (-20° to 105° C) |
| UL Recognized, File NO. E46237 |
| CSA Certified, File NO. LR6837 |
Part Number Selector
| 6P | 7P | 8P | |
| MALE FACE VIEW |
 |
 |
 |
| COLOR CODE | 1 - orange 2 - blue 3 - black 4 - white 5 - red 6 - green-gnd | 1 - white-black trace2 - black3 - white4 - red5 - orange6 - blue7 - green-gnd | 1 - orange 2 - blue 3 - white-black trace 4 - black 5 - white 6 - red7 - green-gnd8 - red-black trace |
| VOLTAGE | 600V AC/DC | 600V AC/DC | 600V AC/DC |
| CURRENT | 8A | 8A | 7A |
| CONDUCTOR | #16-6 | #16-7 | #16-8 |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | |||
| MALE | RECEPTACLES WITH #16 AWG PVC LEADS 12 INCHES LONG | ||

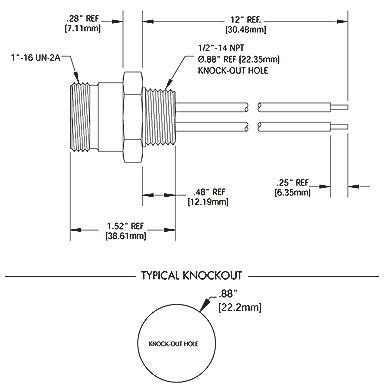

| STRAIGHT w/ 1/2"-14NPT |
2R6006A20A120 | 2R7006A20A120 | 2R8006A20A120 |
| FEMALE | RECEPTACLES WITH #16 AWG PVC LEADS 12 INCHES LONG | ||
| STRAIGHT w/ 1/2"-14NPT |
2R6004A20A120 | 2R7004A20A120 | 2R8004A20A120 |
| PART NO. | ACCESSORIES | ||
| 5601 | Lockout 1/2"-14NPT, zinc plated steel | ||
| 5611 | Gasket, black neoprene | ||
Brad Harrison/Woodhead Products Distributed by Gross Automation | Brookfield, WI 262.233.1891
