Micro-Change | Tee Splitter | Single Keyway M12 & Dual Keyway 1/2" - 20 UNF
#22 AWG Yellow PVC Cable with Metallic Braid
Combines Two 3-Wire Devices Into one 4P Conductor Cable
5 Lengths Available in Both Single Keyway and Dual Keyway
| MECHANICAL |
| Connector Face: |
| Molded Body: |
| O-Ring: |
| Coupling Nut: |
| Cable: |
| Outside Diameter: |
| ELECTRICAL |
| Protection: |
| Ambient Oper. Temp: |
| CERTIFICATIONS |
| UL: |
| CSA: |
| Nylon 6/6 |
| PVC |
| Nitrile Rubber |
| Zinc Diecast w/ Black Epoxy |
| Yellow #22 PVC Jacket 80% |
| Metallic Braid and PVC |
| Conductor Insulation Over |
| 26 X #36 Copper Stranding, |
| 300V, UL Style 2661, |
| CSA AWM l/ll A/B |
| 4P - .25" (6.4mm) |
| IP 68, NEMA 6P |
| -4° TO 221° F (-20° TO 105° C) |
| UL Listed, File NO. E152210 |
| CSA Certified, FIle NO. LR6837, |
| Single Keyway Only |
Part Number Selector
| 3P | 3P | ||

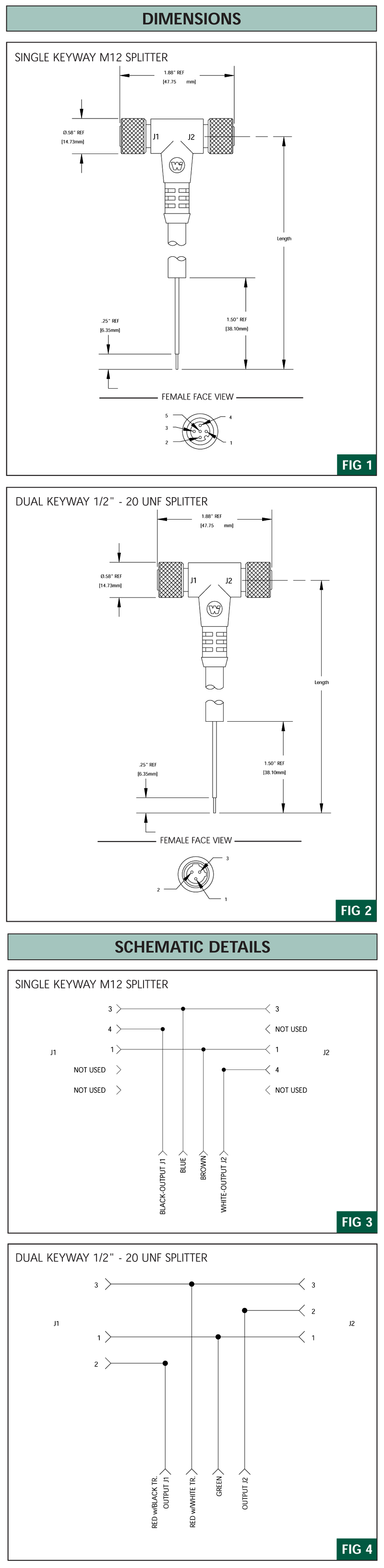

| FEMALE FACE VIEW |
 |
FEMALE FACE VIEW |
 |
| WIRING CODE | 1 - brown 2 - not used 3 - blue 4 - J1 black / J2 white 5 - not used | 1 - green2 - J1 red/black trace / J2 red3 - red/white trace | |
| VOLTAGE | 250V AC/DC | 250V AC/DC | |
| CURRENT | 4A | 4A | |
| CONDUCTOR | #22 - 4 | #22 - 4 | |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | |||
| SINGLE KEYWAY M12 | DUAL KEYWAY 1/2" - 20 UNF | ||
| LEAD LENGTH | SPLITTER CORDSET WITH #22 AWG YELLOW PVC CABLE WITH BRAID |
LEAD LENGTH | SPLITTER CORDSET WITH #22 AWG YELLOW PVC CABLE WITH BRAID |
| 1 METER | 80350-001 | 3 FEET | 70355-001 |
| 2 METER | 80350-002 | 6 FEET | 70355-002 |
| 4 METER | 80350-003 | 12 FEET | 70355-003 |
| 5 METER | 80350-004 | 20 FEET | 70355-004 |
| 10 METER | 80350-005 | 40 FEET | 70355-005 |
