Micro-Change | Single & Double-Ended Cordsets | 3 & 5 Poles | Dual Keyway 1/2"-20 UNF
#18 AWG Yellow Thermoplastic Elastomer (TPE) Cable - Auto Color Code
Oil-, Chemical-, and Weld Slag-Resistant TPE Jacket "Universal" Cable
Low-Resistance Contact Design with Gold/Palladium Nickel Plating
| MECHANICAL |
| Connector Face: |
| Molded Body: |
| O-Ring: |
| Coupling Nut: |
| Cable: |
| Outside Diameter: |
| ELECTRICAL |
| Voltage Rating: |
| Amperage: |
| ENVIRONMENTAL |
| Protection: |
| Ambient Oper. Temp: |
| CERTIFICATIONS |
| UL: |
| CSA: |
| Nylon 6/6 |
| PVC |
| Nitrile Rubber |
| Zinc Diecast w/ Black Epoxy |
| Coat, Optional Stainless Steel |
| Type 303 |
| Yellow #18 AWG Thermoplastic |
| Elastomer (TPE) Jacket and PVC |
| Conductor Insulation Over |
| 41 X #34 Copper Stranding, |
| 300V, UL Style 20327 |
| CSA AWM l/ll A/B |
| 3P - .26' (6.6mm) |
| 5P - .30' (7.6mm) |
| 250V AC/DC |
| 3P - 4A |
| 5P - 4A |
| IP 68, NEMA 6P |
| -4° TO 221° F (-20° TO 105° C) |
| UL Listed, File NO. E152210 |
| CSA Certified, File NO. LR6837 |
Part Number Selector
| 3P | 5P | |
| FEMALE FACE VIEW |
 |
 |
| COLOR CODE | 1 - green-gnd 2 - red - black trace 3 - red - white trace | 1 - red - white trace 2 - red 3 - green-gnd 4 - red - yellow trace 5 - red - black trace |
| VOLTAGE | 250V AC/DC | 250V AC/DC |
| CURRENT | 4A | 4A |
| CONDUCTOR | #18-3 | #18-5 |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | ||

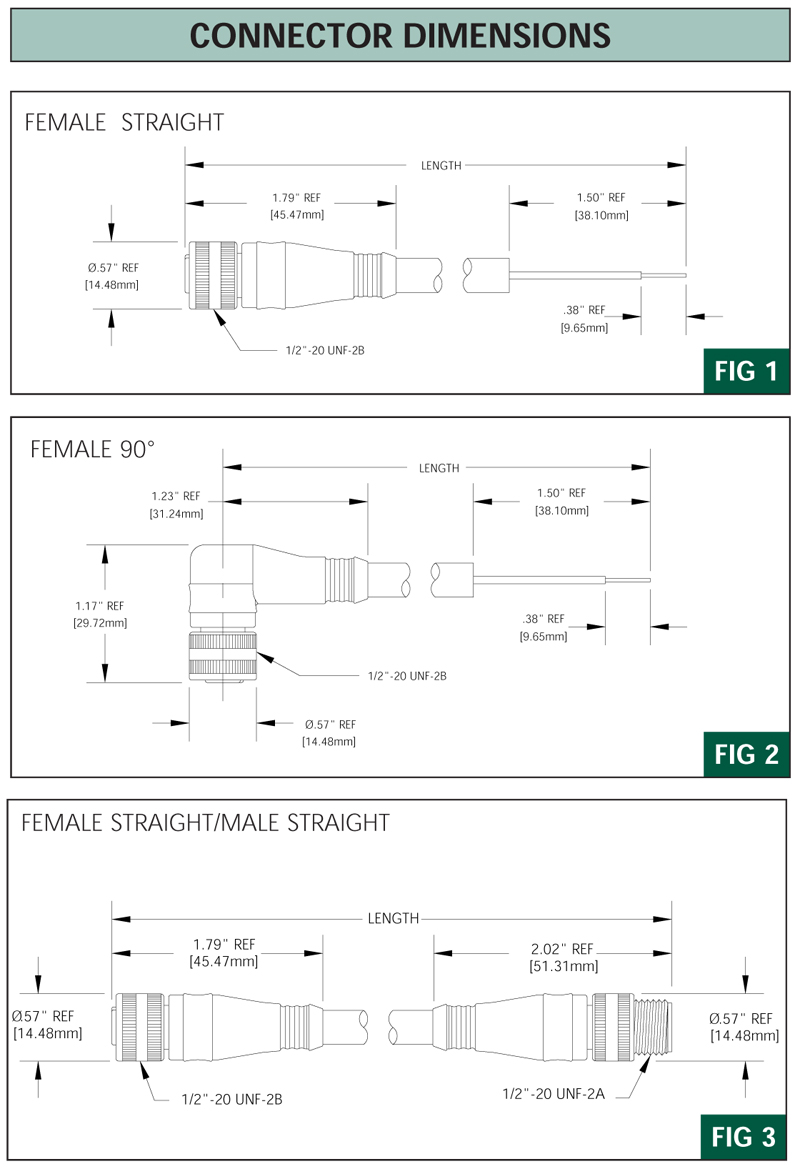

| FEMALE | SINGLE-ENDED CORDSETS WITH #18 AWG TPE CABLE 6 FEET LONG | |
| STRAIGHT |
703000K02F060 | 705000K02F060 |
| 90° | 703001K02F060 | 705001K02F060 |

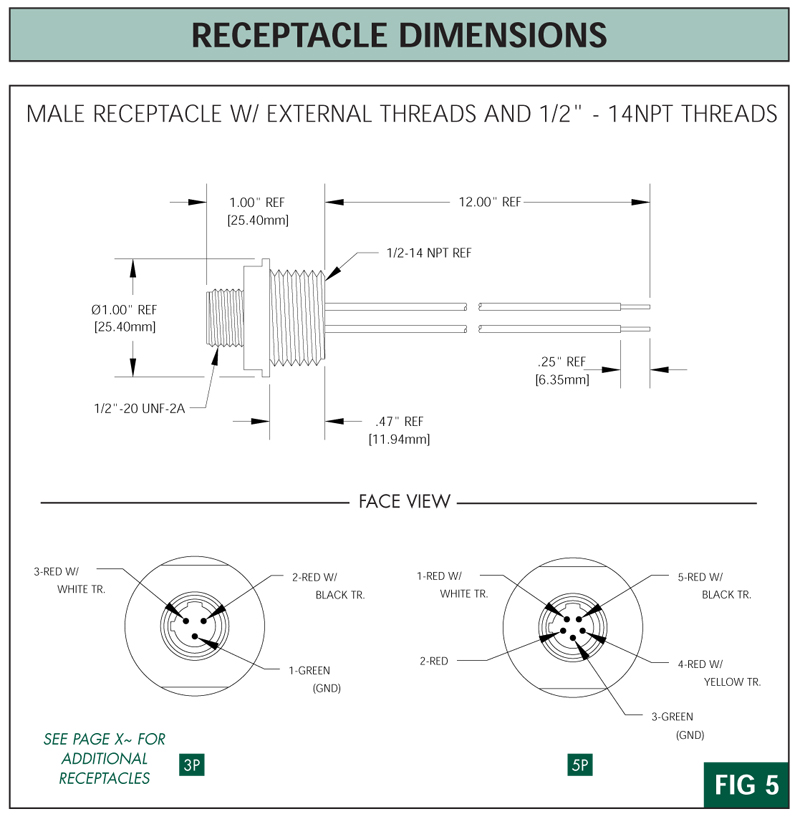

| MATING RECEP. | 7R3006A19A120 | 7R5006A19A120 |
| FEMALE/MALE | DOUBLE-ENDED CORDSETS WITH #18 AWG TPE CABLE 3 FEET LONG | |
| STRAIGHT/STRAIGHT | 773030K02F030 | 775030K02F030 |
Brad Harrison/Woodhead Products Distributed by Gross Automation | Brookfield, WI 262.233.1891
