| MECHANICAL |
| Connector Face: |
| Molded Body: |
| O-Ring: |
| Coupling Nut: |
| Cable: |
| |
| |
| Outside Diameter: |
| ELECTRICAL |
| Voltage Rating: |
| Amperage: |
| ENVIRONMENTAL |
| Protection: |
| Ambient Oper. Temp: |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| Polyamide (Nylon) |
| PVC |
| Viton |
| Zinc Diecast w/ Black Epoxy |
| Black #24 AWG Polyurethane |
| Jacket and PVC Conductor |
| Insulation, 300V |
| 8P - .29" (7.4mm) |
| |
| 30V AC; 36V DC |
| 8P - 4A |
| |
| IP 68, NEMA 6P |
| -4° TO 185° F (-20° TO 85°C) |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
Part Number Selector
| |
8P FEMALE |
8P MALE |
| FACE VIEW |
 |
 |
| COLOR CODE |
1 - white 2 - brown 3 - green 4 - yellow 5 - gray 6 - pink 7 - blue 8 - red |
1 - white2 - brown3 - green4 - yellow5 - gray6 - pink7 - blue8 - red |
| VOLTAGE |
30V AC / 36V DC |
30V AC / 36V DC |
| CURRENT |
4A |
4A |
| CONDUCTOR |
#24-8 |
#24-8 |
| |
CLICK ON A PART NUMBER FOR MORE OPTIONS |

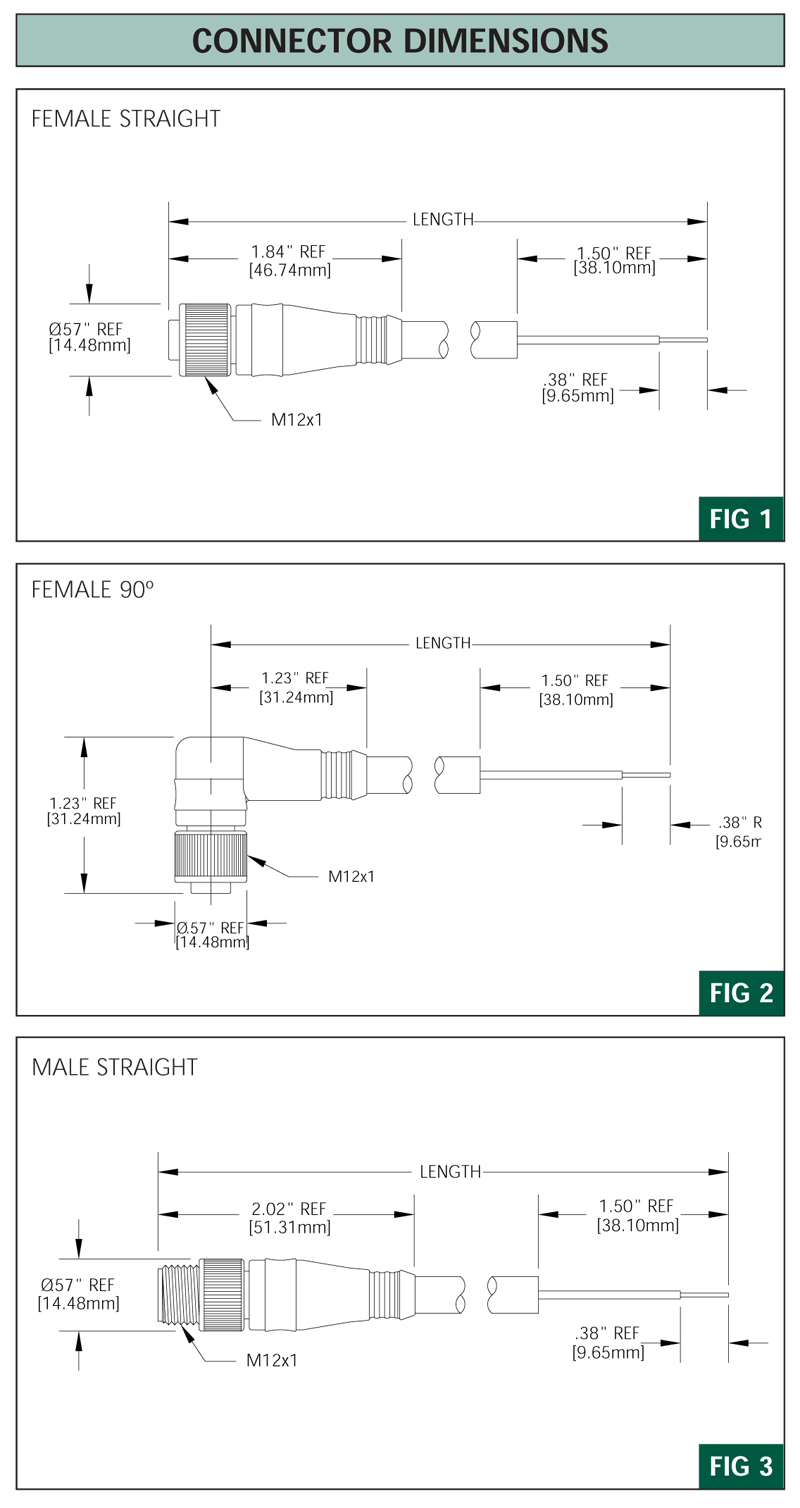

| FEMALE |
SINGLE-ENDED CORDSETS WITH #24 AWG PUR CABLE 2 METERS |
| STRAIGHT |
808000P02M020 |
| 90° |
808001P02M020 |
| MATING RECEP. |
8R8J36E03C3003 |
| MALE |
SINGLE-ENDED CORDSETS WITH #24 AWG PUR CABLE 2 METERS |
| STRAIGHT |
808006P02M020 |
| MATING RECEP. |
8R8J30E03C3003 |
