Micro-Change | In-Line Splitters | Single Keyway M12
#18 AWG Yellow Thermoplastic (TPE) Elostomer Cable
Combines Two 3-Wire DC Sensors into One 4P Quick-Disconnect Cable
Oil-, Chemical- and Weld Slag-Resistant TPE Jacket
| MECHANICAL |
| Connector Face: |
| Plug Molded Body: |
| Splitter Body: |
| O-Ring: |
| Coupling Nut: |
| Cable: |
| Outside Diameter: |
| ELECTRICAL |
| Voltage Rating: |
| Amerpage: |
| ENVIRONMENTAL |
| Protection: |
| Ambient Oper. Temp: |
| CERTIFICATIONS |
| UL: |
| Nylon 6/6 |
| PVC |
| PVC |
| Nitrile Rubber |
| Zinc Diecast w/ Black Epoxy |
| Yellow #18 AWG PVC Jacket |
| and PVC Conductor Insulation |
| Over 41 X #34 Copper Stranding, |
| 300V, UL Style 2661, |
| CSA AWM l/ll A/B |
| 4P - .28" (7.1mm) |
| 250V AC/DC |
| 4P - 4A Total |
| IP 68, NEMA 6P |
| -4° TO 221° F (-20° TO 105° C) |
| UL Listed, File NO. E152210 |

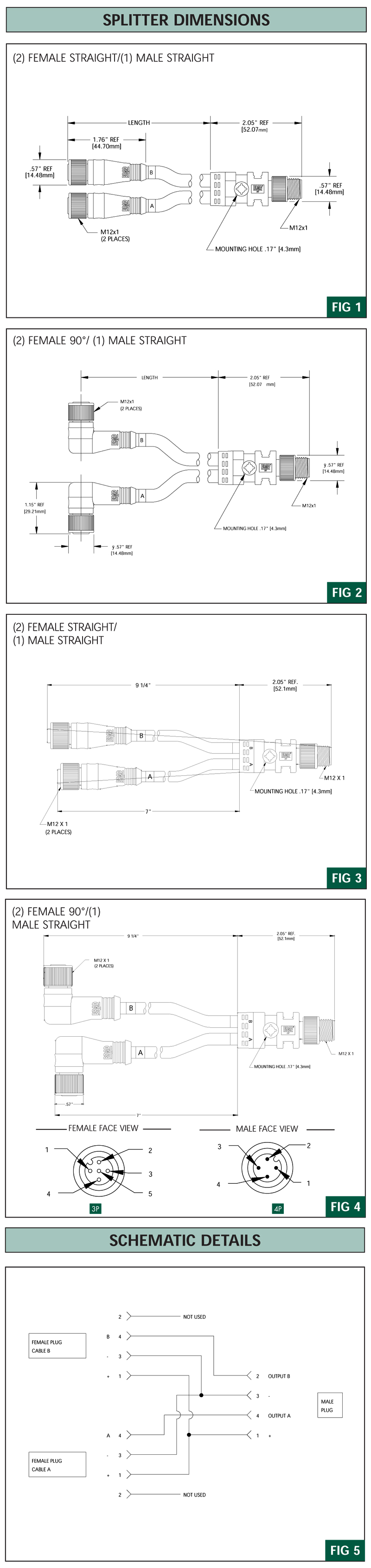

Part Number Selector
| 3P (Female Face View) | 4P (Male Face View) | |
 |
 |
|
| PIN SCHEMATIC | 1 - V+ 2 - not used 3 - V- 4 - output 5 - not used | 1 - V+2 - output 23 - V- 4 - output 1 |
| VOLTAGE | 250V AC/DC | 250V AC/DC |
| CURRENT | 4A | 4A |
| CONDUCTOR | #18-3 | 4P Male M12 Connection |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | ||
| FEMALE | SPLITTER CORDSETS WITH (2) FEMALE LEADS #18 AWG TPE CABLE .3M (11.8") LONG | |
| STRAIGHT | 884A30K03M003 | |
| 90° | 884A31K03M003 | |
| FEMALE | SPLITTER CORDSETS WITH (2) FEMALE LEADS #18 AWG YELLOW TPE CABLE (1) 7" LONG A OUTPUT (1) 9" LONG B OUTPUT | |
| STRAIGHT | 884B30K03A090 | |
| 90° | 884B31K03A090 | |
