| MECHANICAL |
| Connector Face: |
| Plug Molded Body: |
| Splitter Body: |
| O-Ring: |
| Coupling Nut: |
| Cable: |
| |
| |
| |
| |
| Outside Diameter: |
| |
| ELECTRICAL |
| Voltage Rating: |
| Amerpage: |
| ENVIRONMENTAL |
| Protection: |
| Ambient Oper. Temp: |
| CERTIFICATIONS |
| UL: |
| |
| |
| |
| |
| |
| |
| |
| |
| Nylon 6/6 |
| PVC |
| PVC |
| Nitrile Rubber |
| Zinc Diecast w/ Black Epoxy |
| Yellow #22 AWG PVC Jacket |
| and PVC Conductor Insulation |
| Over 26 X #36 Copper Stranding, |
| 300V, UL Style 2661, |
| CSA AWM l/ll A/B |
| 3P - .20" (5.1mm) |
| 4P - .21" (5.3mm) |
| |
| 250V AC/DC |
| 4P - 4A Total |
| |
| IP 68, NEMA 6P |
| -4° TO 221° F (-20° TO 105° C) |
| |
| UL Listed, File NO. E152210 |
| |
| |
| |
| |
Part Number Selector
| |
3P (Female Face View) |
4P (Male Face View) |
| |
 |
 |

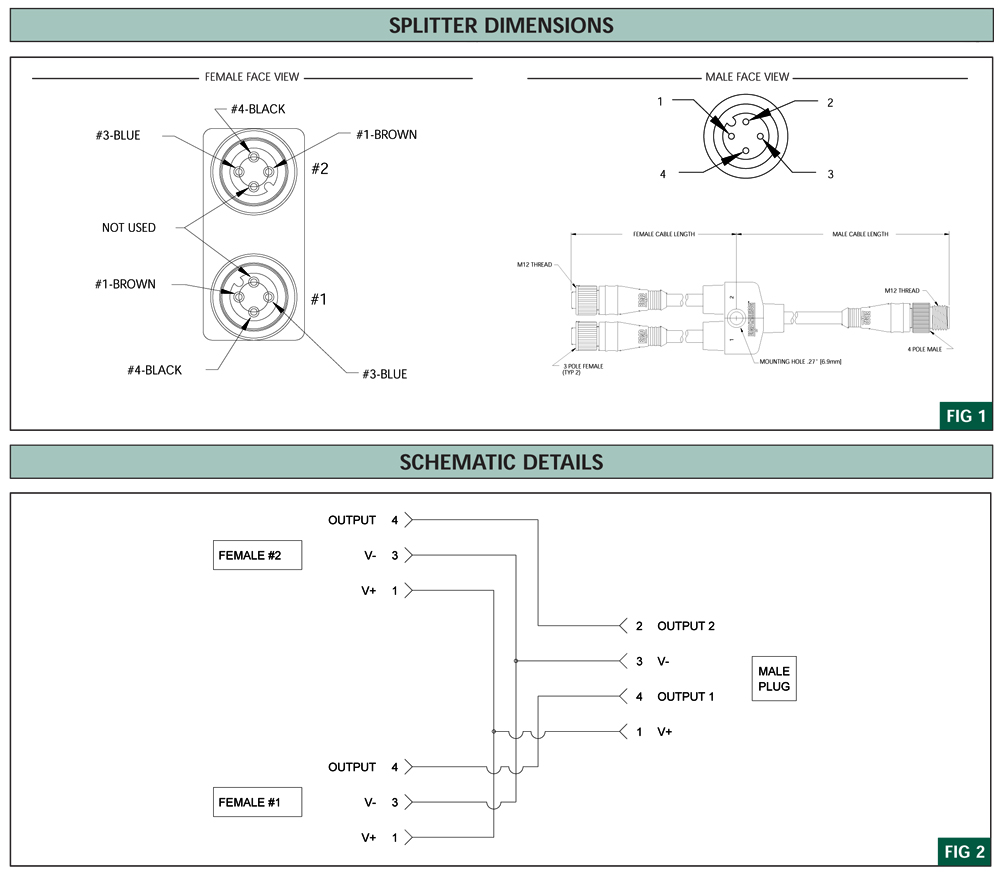

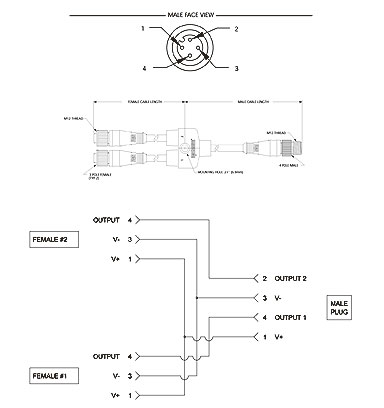

| PIN SCHEMATIC |
1 - V+ 2 - not used 3 - V- 4 - output 5 - not used |
1 - V+2 - output 23 - V- 4 - output 1 |
| VOLTAGE |
250V AC/DC |
250V AC/DC |
| CURRENT |
4A |
4A |
| CONDUCTOR |
#22-3 |
#22-4 |
| |
CLICK ON A PART NUMBER FOR MORE OPTIONS |
| FEMALE |
SPLITTER CORDSETS WITH 2 FEMALE WITH 2 METER CABLE; 1 MALE WITH 3 METER CABLE |
| STRAIGHT |
884F30A09M3M2 |
