Micro-Change | In-Line Splitter | Dual Keyway 1/2" - 20 UNF
#18 AWG Yellow Thermoplastic (TPE) Elastomer Cable
Combines Two 3-Wire AC Devices into One 5P Male Receptacle
Oil-, Chemical- and Weld Slag-Resistant TPE Jacket
| MECHANICAL |
| Connector Face: |
| Plug Molded Body: |
| Splitter Body: |
| O-Ring: |
| Coupling Nut: |
| Cable: |
| Outside Diameter: |
| ELECTRICAL |
| Voltage Rating: |
| Amperage: |
| ENVIRONMENTAL |
| Protection: |
| Ambient Oper. Temp: |
| CERTIFICATIONS |
| UL: |
| Nylon 6/6 |
| PVC |
| PVC |
| Nitrile Rubber |
| Zinc Diecast w/ Black Epoxy |
| Yellow #18 AWG Thermoplastic |
| Elastomer (TPE) Jacket and PVC |
| Conductor Insulation Over |
| 4 X #34 Copper Stranding, 300V, |
| UL Style 20327, |
| CSA AWM l/ll A/B |
| 3P - .26" (6.6mm) |
| 250V AC/DC |
| 5P - 4A TOTAL |
| IP 68, NEMA 6P |
| -4° F TO 221° F (-20° TO 105° C) |
| UL Listed, File NO. E152210 |
Part Number Selector
| 3P | 5P | ||

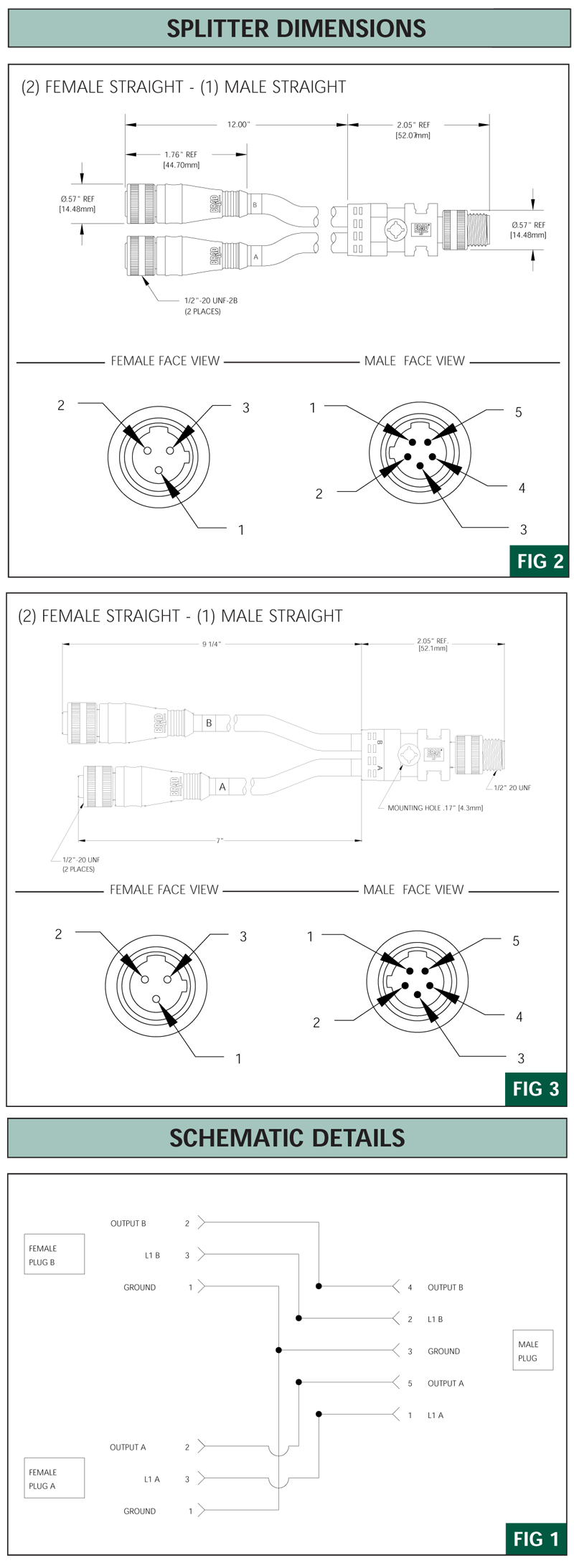

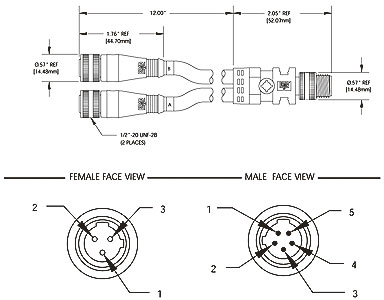

| FEMALE FACE VIEW |
 |
MALE FACE VIEW |
 |
| PIN SCHEMATIC | 1 - gnd 2 - output A & B 3 - L1A & L1B | 1 - L1A2 - L1B3 - gnd4 - output B5 - output A | |
| VOLTAGE | 250V AC/DC | 250V AC/DC | |
| CURRENT | 4A | 4A | |
| CONDUCTOR | #18-3 | 5P Male Dual Keyway Connection | |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | |||
| FEMALE | SPLITTER CORDSET WITH (2) 3P FEMALE LEADS #18 AWG YELLOW TPE CABLE 1 FOOT LONG | ||
| STRAIGHT | 775A30K02F010 | ||
| FEMALE | SPLITTER CORDSET WITH (2) FEMALE LEADS #18 AWG YELLOW TPE CABLE (1) 7" LONG OUTPUT A (1) 9" | ||
| STRAIGHT | 775B30K02A090 | ||
