Micro-Change | Field-Attachable Connectors | 4 Poles
Solder Connection Accepts #22 AWG Conductors Maximum
Secure Termination for High Vibration Applications
For Use with All Standard Single Keyway M12 Receptacles & Cordsets
| MECHANICAL |
| Connector Face: |
| Molded Body: |
| Contact: |
| Coupling Nut: |
| Grommet: |
| Maximum Conductor Size: |
| ELECTRICAL |
| Voltage Rating: |
| Amperage: |
| ENVIRONMENTAL |
| Protection: |
| Ambient Oper. Temp: |
| CERTIFICATIONS |
| UL: |
| CSA: |
| Nylon 6/6 |
| Nylon 6/6 |
| Gold Plated Brass |
| Aluminum |
| Nitrile Rubber |
| #22 AWG |
| 250V AC / 125V DC |
| 4P - 3A |
| IP 67, NEMA 6 |
| -40° TO 185° F (-40° TO 85°C) |
| UL Listed, File NO. E103202 |
| CSA Certified, File NO. LR62678 |
Part Number Selector
| 4P | ||
| MALE FACE VIEW |
 |
|
| VOLTAGE | 250V AC/125V DC | |
| CURRENT | 3A | |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | ||

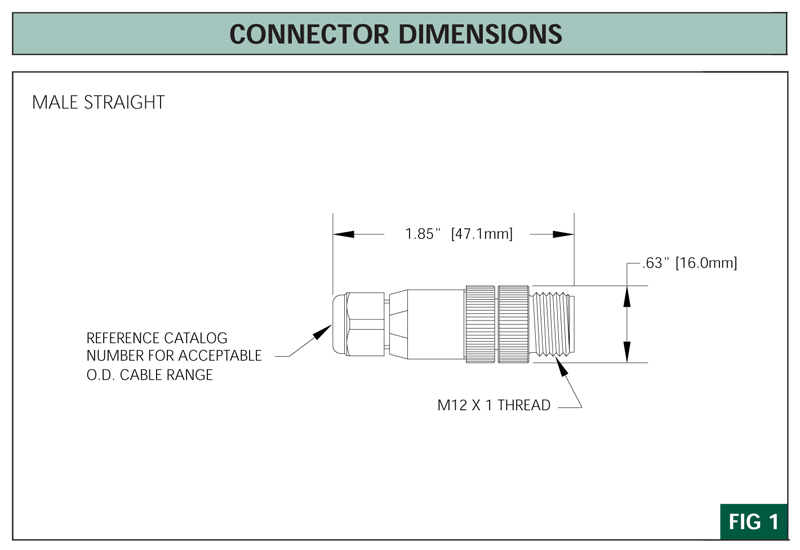

| MALE | O.D CABLE RANGE | FIELD-ATTACHABLE CONNECTORS WITH SOLDER TERMINATIONS |
| STRAIGHT | .12-.15"/3-4mm | F04MA03123 |
| .15-.20"/4-5mm | F04MA03124 | |
| .20 -.24"/5-6mm | F04MA03126 | |

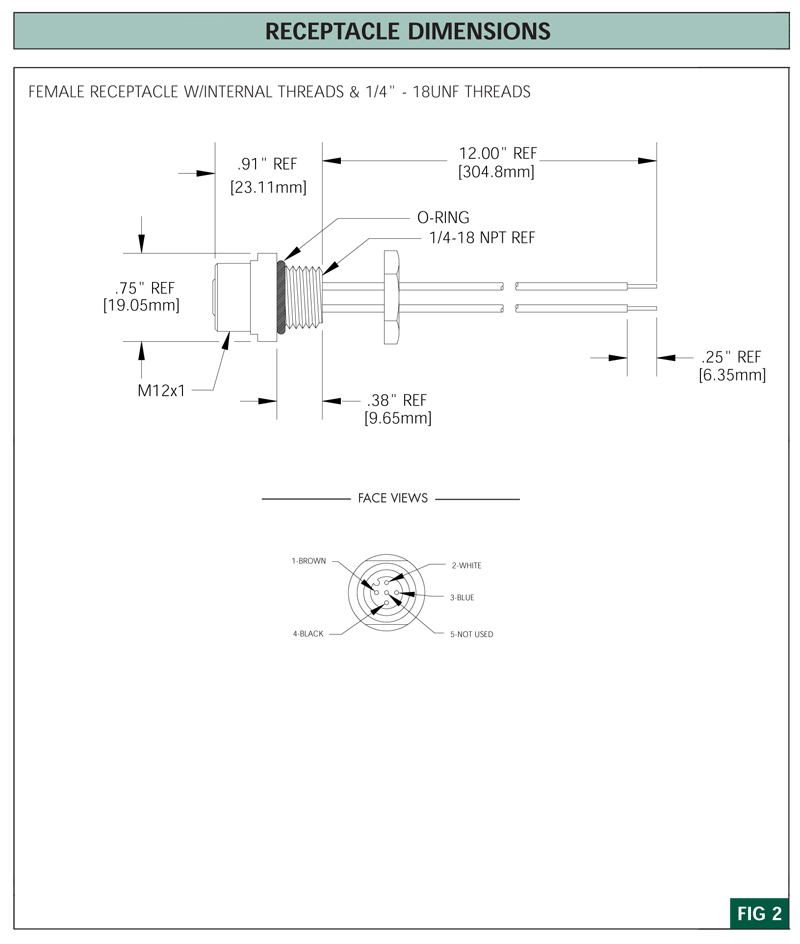

| MATING RECEP. | 8R4A00A18A120 | |
