Micro-Change | Field-Attachable Connectors | 4 & 5 Poles
Screw Terminal Connection Accepts Up to #18 AWG Conductors
Easy Field Installation of Quick-Disconnect Design
For Use with All Standard Single Keyway M12 Receptacles and Cordsets
| MECHANICAL |
| Connector Face: |
| Molded Body: |
| Contact: |
| Coupling Nut: |
| Grommet: |
| Maximum Conductor Size: |
| ELECTRICAL |
| Voltage Rating: |
| Amperage: |
| ENVIRONMENTAL |
| Protection: |
| Ambient Oper. Temp: |
| CERTIFICATIONS |
| CSA: |
| Polyamide |
| Polyamide |
| Silver Plated Brass |
| Silver Plated Brass |
| Nitrile Rubber |
| #18 AWG |
| 4P - 250V AC 300V DC |
| 5P - 250V AC 300V DC |
| 4P - 4A |
| 5P - 4A |
| IP 68 |
| -13° TO 194° F (-25° TO 90 °C) |
| CSA Certified, File NO. LR6837 |
Part Number Selector
| 4P | 5P | |
| FEMALE FACE VIEW |
 |
 |
| MALE FACE VIEW |
 |
 |
| VOLTAGE | 250V AC / 300V DC | 30V AC / 36V DC |
| CURRENT | 4A | 4A |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | ||

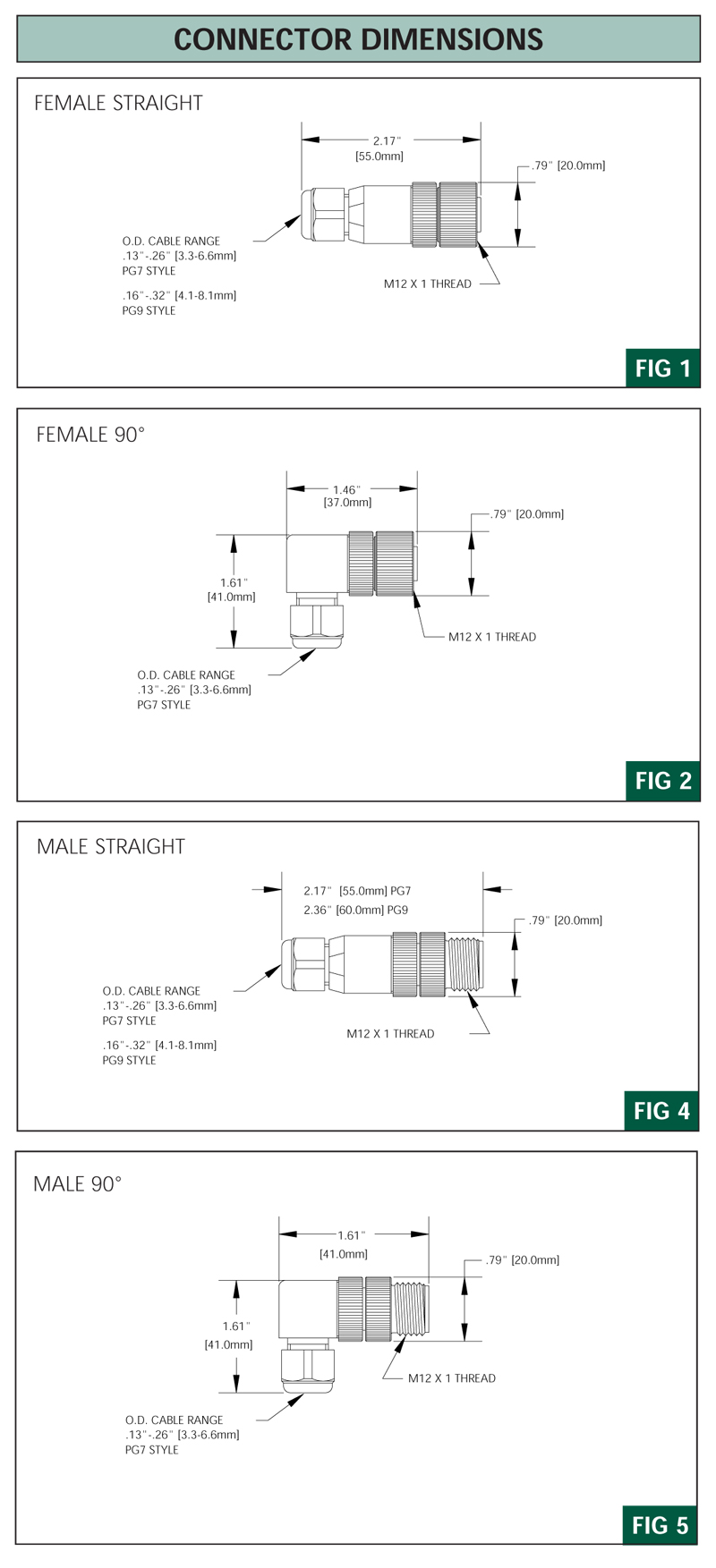

| FEMALE | CATALOG NUMBER WITH PG 7 CABLE FITTING (.13 - .26" OD [3.3 - 6.6MM] CABLE) | |
| STRAIGHT | 8A4000-31 | 8A5000-31 |
| 90° | 8A4001-31 | 8A5001-31 |
| FEMALE | CATALOG NUMBER WITH PG 9 CABLE FITTING (.16 - .32" OD [4.1 - 8.1MM] CABLE) | |
| STRAIGHT | 8A4000-32 | 8A5000-32 |

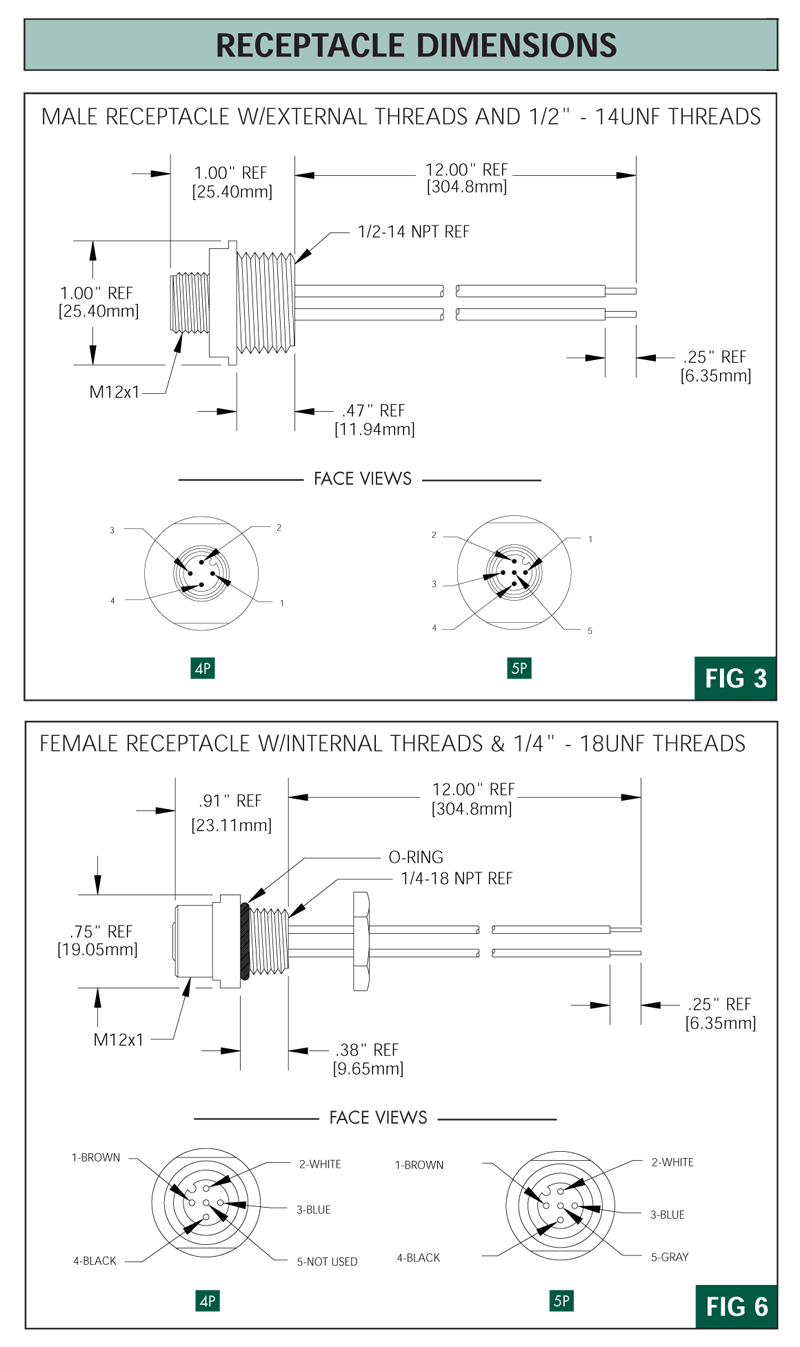

| MATING RECEP. | 8R4006A18A120 | 8R5006A18A120 |
| MALE | CATALOG NUMBER WITH PG 7 CABLE FITTING (.13 - .26" OD [3.3 - 6.6MM] CABLE) | |
| STRAIGHT | 8A4006-31 | 8A5006-31 |
| 90° | 8A4007-31 | 8A5007-31 |
| MALE | CATALOG NUMBER WITH PG 9 CABLE FITTING (.16 - .32" OD [4.1 - 8.1MM] CABLE) | |
| STRAIGHT | 8A4006-32 | 8A5006-32 |
| MATING RECEP. | 8R4A00A18A120 | 8R5A00A18A120 |
