Micro-Change | Double-Ended Cordsets | 2-6 Poles | Dual Keyway 1/2" - 20 UNF
#22 AWG Yellow PVC Cable with Metallic Braid - Auto Color Code
#18 AWG Yellow PVC Cable without Metallic Braid - Auto Color Code
Low-Resistance Contact Design with Gold/Palladium Nickel Plating
| MECHANICAL |
| Connector Face: |
| Molded Body: |
| O-Ring: |
| Coupling Nut: |
| Cable: |
| ELECTRICAL |
| Voltage Rating: |
| Amperage: |
| Nylon 6/6 |
| PVC |
| Nitrile Rubber |
| Zinc Diecast w/ Black Epoxy |
| Coat, Optional Stainless Steel |
| Type 303 or Non-Metallic |
| White Delrin |
| Yellow #22 AWG PVC Jacket |
| 70% Metallic Braid and PVC |
| Conductor Insulation Over |
| 26 X #36 Copper Stranding, |
| 300V, UL Style 2661, |
| CSA AWM l/ll A/B |
| Yellow #18 AWG PVC Jacket and |
| PVC Conductor Insulation Over |
| 41 X #34 Copper Stranding, |
| 300V, UL Style 2661, |
| CSA AWM l/ll A/B |
| 250V AC/DC |
| 2P - 4A |
| 3P - 4A |
| 4P - 4A |
| 5P - 4A |
| 6P - 4A |

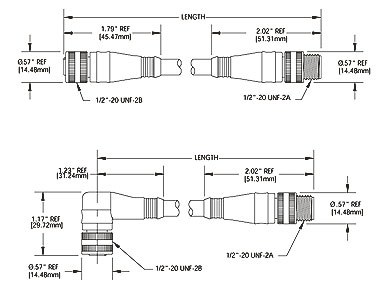

Part Number Selector
| 2P | 3P | 4P | 5P | 6P | |

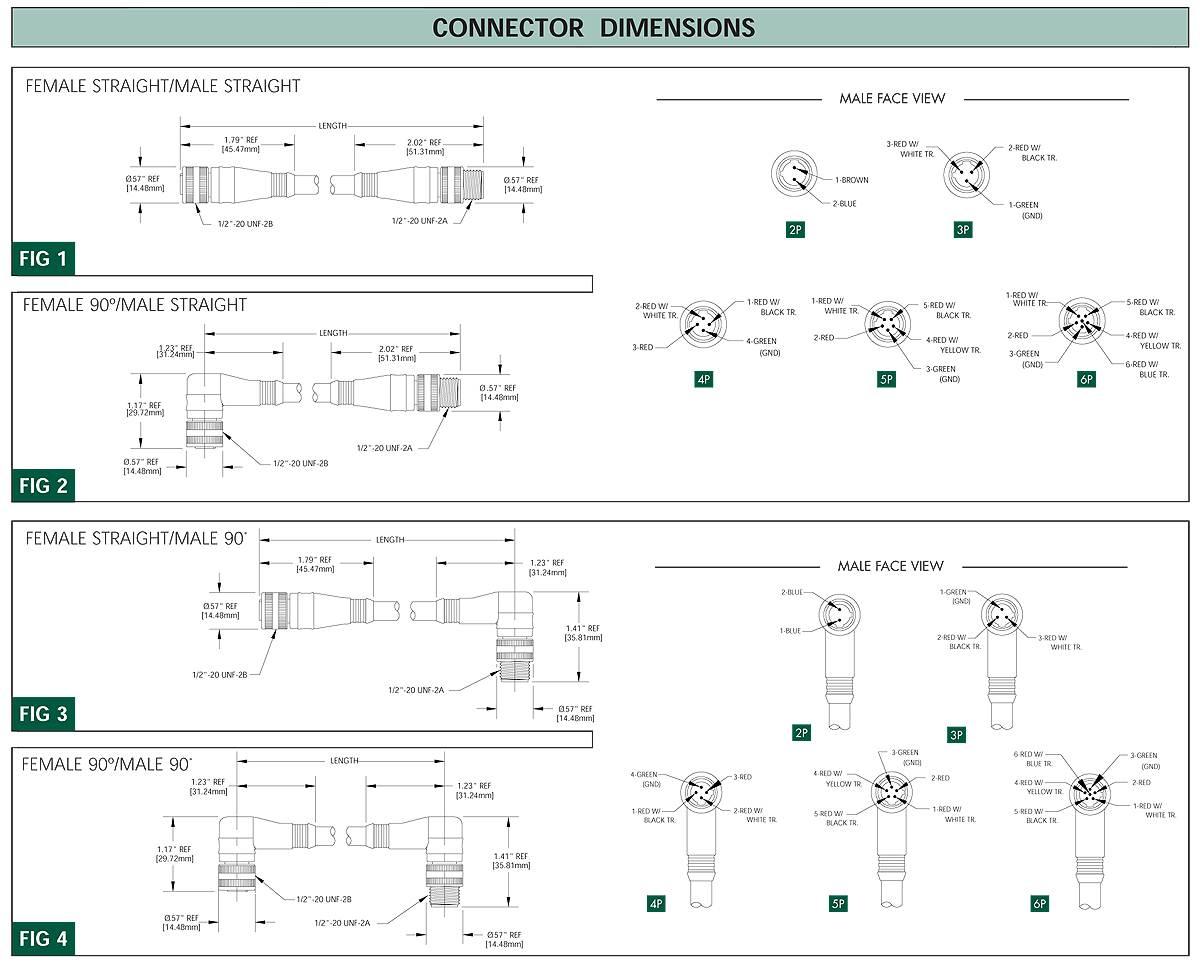

| FEMALE FACE VIEW |
 |
 |
 |
 |
 |
| COLOR CODE | 1 - brown 2 - blue | 1 - green-gnd 2 - red-black trace 3 - red-white trace | 1 - red-black trace2 - red-white trace3 - red4 - green-gnd | 1 - red-white trace 2 - red 3 - green-gnd 4 - red-yellow trace 5 - red-black trace | 1 - red-white trace 2 - red 3 - green-gnd 4 - red-yellow trace 5 - red-black trace 6 - red-blue trace |
| VOLTAGE | 250V AC/DC | 250V AC/DC | 250V AC/DC | 250V AC/DC | 250V AC/DC |
| CURRENT | 4A | 4A | 4A | 4A | 4A |
| CONDUCTOR | #22-2 | #22-3 | #22-4 | #22-5 | #22-6 |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | |||||
| FEMALE/MALE | DOUBLE-ENDED CORDSETS WITH #22 AWG PVC CABLE WITH BRAID 3 FEET LONG | ||||
| STRAIGHT/STRAIGHT |
772030D02F030 | 773030D02F030 | 774030D02F030 | 775030D02F030 | 776030D02F030 |
| 90°/STRAIGHT | 772031D02F030 | 773031D02F030 | 774031D02F030 | 775031D02F030 | 776031D02F030 |
| STRAIGHT/90° | 772032D02F030 | 773032D02F030 | 774032D02F030 | 775032D02F030 | - |
| 90°/90° | 772033D02F030 | 773033D02F030 | 774033D02F030 | 775033D02F030 | - |
