Micro-Change | Single & Double-Ended Cordsets | 4 Poles | Single Keyway M12
#18 AWG Yellow Thermoplastic Elastomer (TPE) Cable - DC Color Code
Oil-, Chemical-, and Weld Slag-Resistant TPE Jacket Continuous-Flex Rated Cable Design
Low-Resistance Contact Design with Gold/Palladium Nickel Plating
| MECHANICAL |
| Connector Face: |
| Molded Body: |
| O-Ring: |
| Coupling Nut: |
| Cable: |
| Outside Diameter: |
| ELECTRICAL |
| Voltage Rating: |
| Amperage: |
| ENVIRONMENTAL |
| Protection: |
| Ambient Oper. Temp: |
| CERTIFICATIONS |
| UL: |
| CSA: |
| Nylon 6/6 |
| PVC |
| Nitrile Rubber |
| Zinc Diecast w/ Black Epoxy |
| Coat, Optional Stainless Steel |
| Type 303 or Non-Metallic |
| Black Delrin |
| Yellow #18 AWG Thermoplastic |
| Elastomer (TPE) Jacket and PVC |
| Conductor Insulation Over |
| 41 X #34 Copper Stranding, |
| 300V, UL Style 20327, |
| CSA AWM l/ll A/B |
| 4P - .28" (7.1mm) |
| 250 V AC/DC |
| 4P - 4A |
| IP 68, NEMA 6P |
| -4° TO 221° F (-20° TO 105° C) |
| UL Listed, File NO. E152210 |
| CSA Certified, File NO. LR6837 |
Part Number Selector
| 4P | |
| FEMALE FACE VIEW |
 |
| COLOR CODE | 1 - brown 2 - white 3 - blue 4 - black 5 - not used |
| VOLTAGE | 250V AC/DC |
| CURRENT | 4A |
| CONDUCTOR | #18-4 |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | |

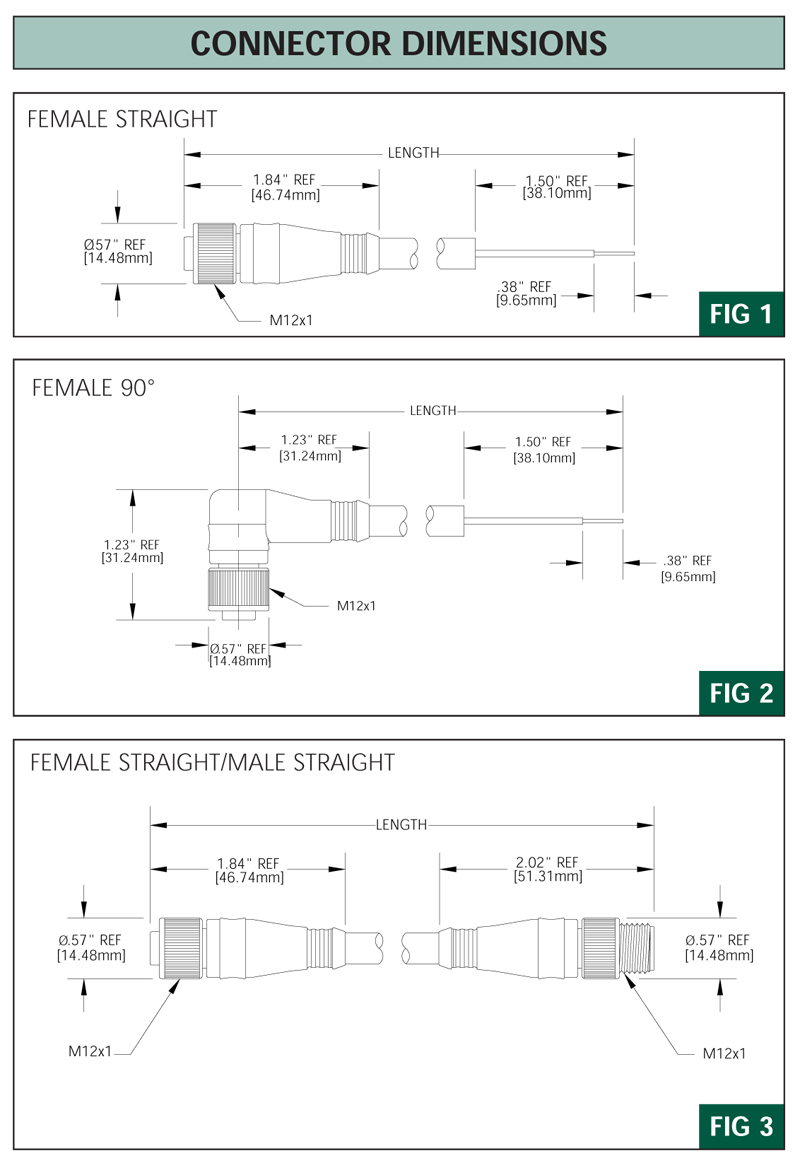

| FEMALE | SINGLE-ENDED CORDSETS WITH #18 AWG TPE CABLE 2 METERS LONG |
| STRAIGHT | 804000K03M020 |
| 90° | 804001K03M020 |

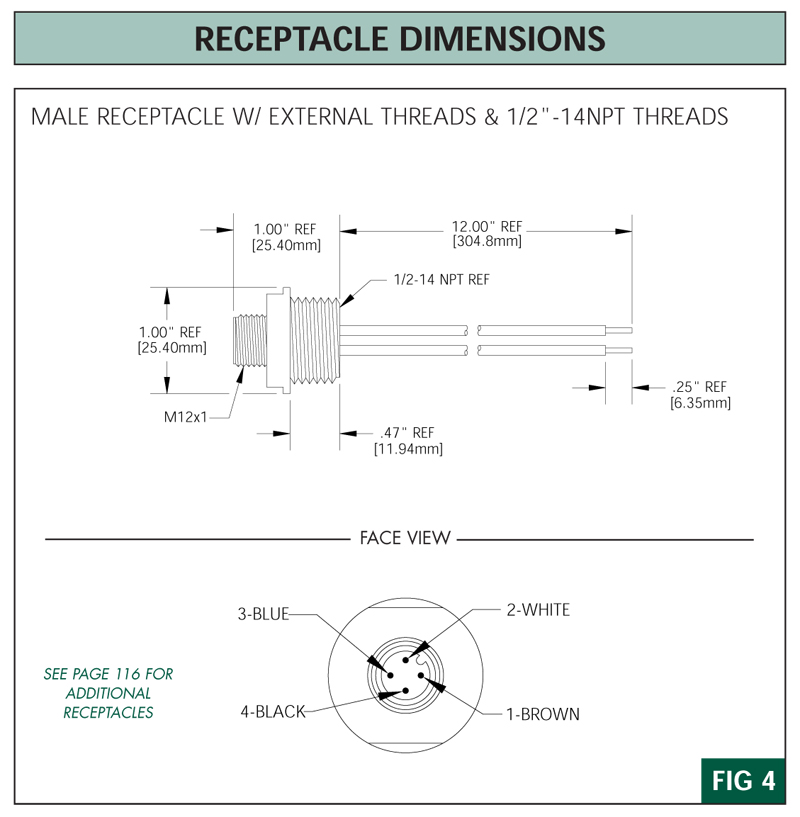

| MATING RECEP. | 8R4006A16A120 |
| FEMALE/MALE | DOUBLE-ENDED CORDSETS WITH #18 AWG TPE CABLE 2 METERS LONG |
| STRAIGHT/STRAIGHT | 884030K03M020 |
