POWER

CORDSETS

MECHANICAL

Connector Face:

Molded Body:

O-Ring:

Coupling Nut:

Cable:

Outside Diameter:

ELECTRICAL

Voltage Rating:

Amperage:

ENVIRONMENTAL

Protection:

Ambient Oper. Temp:

CERTIFICATIONS

UL:

CSA:

Nylon 6/6
PVC
Nitrile Rubber
Zinc Diecast w/ Black Epoxy
Coat, Optional Stainless Steel
Type 303 or Non-Metallic
Black Delrin
Yellow #22 AWG PVC Jacket and
PVC Conductor Insulation Over
26 X #36 Copper Stranding,
300V, UL Style 2661,
CSA AWM l/ll A/B. Optional
80% Metallic Braid
Without Braid:	With Braid:
3P - .18"	3P - .23"
4P - .20"	4P - .25"
5P - .23"	5P - .26"

250 V AC/DC
3P - 4A
4P - 4A
5P - 4A

IP 68, NEMA 6P
-4° TO 221° F (-20° TO 105° C)

UL Listed, File NO. E152210
CSA Certified, File NO. LR6837

Part Number Selector

	3P	4P	5P

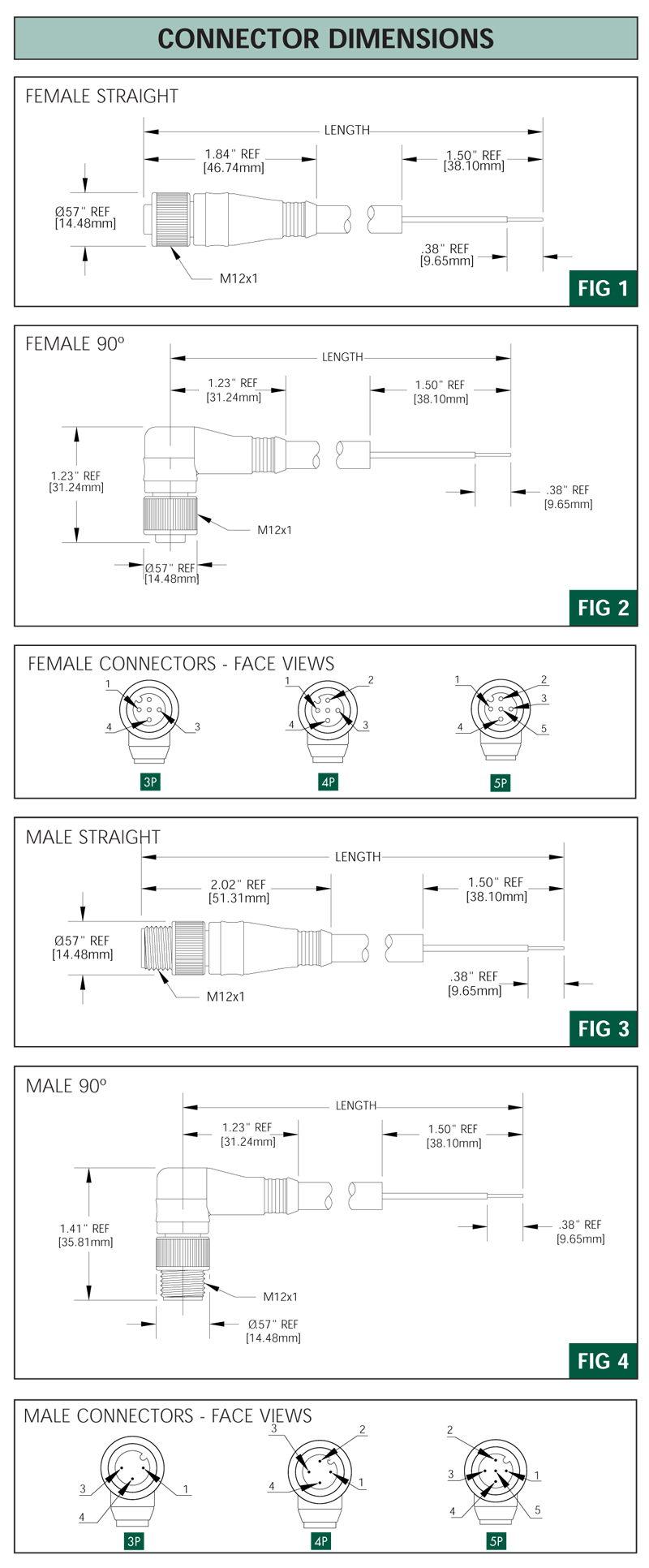

FEMALE FACE VIEW
COLOR CODE	1 - brown 2 - not used 3 - blue 4 - black 5 - not used	1 - brown 2 - white 3 - blue 4 - black 5 - not used	1 - brown2 - white3 - blue4 - black5 - gray
VOLTAGE	250V AC/DC	250V AC/DC	250V AC/DC
CURRENT	4A	4A	4A
CONDUCTOR	#22-3	#22-4	#22-5
	CLICK ON A PART NUMBER FOR MORE OPTIONS
FEMALE	SINGLE-ENDED CORDSETS WITH #22 AWG PVC CABLE WITHOUT BRAID 2 METERS LONG
STRAIGHT	803000A09M020	804000A09M020	805000A09M020
90°	803001A09M020	804001A09M020	805001A09M020

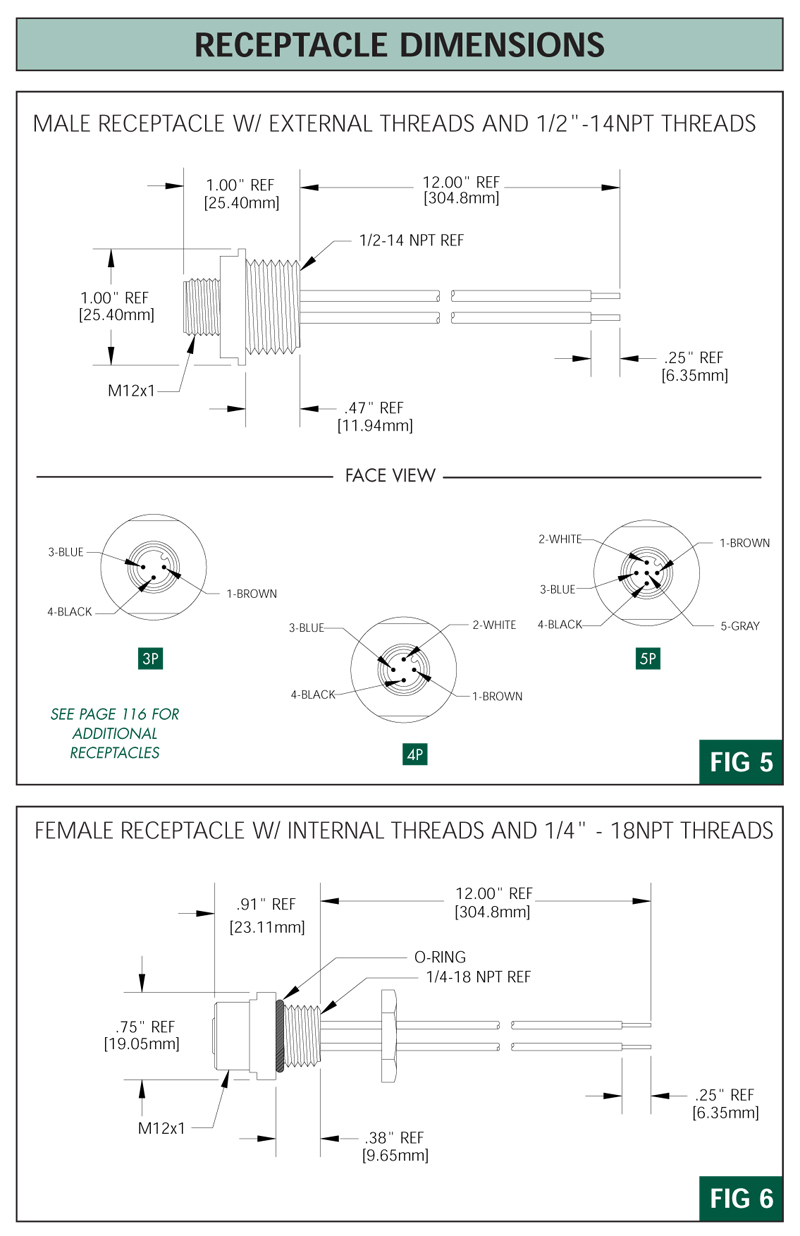

MATING RECEP.	8R3006A18A120	8R4006A18A120	8R5006A18A120
MALE	SINGLE-ENDED CORDSETS WITH #22 AWG PVC CABLE WITHOUT BRAID 2 METERS LONG
STRAIGHT	803006A09M020	804006A09M020	805006A09M020
90°	803007A09M020	804007A09M020	805007A09M020
MATING RECEP.	8R3A00A18A120	8R4A00A18A120	8R5A00A18A120
