Micro-Change | Single-Ended Cordsets | 3 & 4 Poles | Reverse Keyway M12
#22 AWG Yellow PVC Cable - IEC Color Code
Oil-Resistant PVC Jacket
Low-Resistance Contact Design with Gold/Palladium Nickel Plating
| MECHANICAL |
| Connector Face: |
| Molded Body: |
| O-Ring: |
| Coupling Nut: |
| Cable: |
| Outside Diameter: |
| ELECTRICAL |
| Voltage Rating: |
| Amperage: |
| ENVIRONMENTAL |
| Protection: |
| Ambient Oper. Temp: |
| CERTIFICATIONS |
| UL: |
| CSA: |
| Nylon 6/6 |
| PVC |
| Nitrile Rubber |
| Zinc Diecast w/ Black Epoxy |
| #22 AWG: 3P, #24 AWG:4P, |
| PVC Jacket and PVC Conductor |
| Insulation Over 19 X #36 |
| Copper Stranding, 300V |
| 3P - .20" (5.0mm) |
| 4P - .18" (4.6mm) |
| 250V AC/DC |
| 3P - 4A |
| 4P - 3A |
| IP 68, NEMA 6P |
| 14° TO 158° F (-10° TO 70° C) |
| UL Listed, File NO. E152210 |
| CSA Certified, File NO. LR6837 |
Part Number Selector
| 3P | 4P | |
| FEMALE FACE VIEW |
 |
|
| COLOR CODE | 1 - brown 2 - blue 3 - not used 4 - green/yellow - gnd | 1 - brown 2 - blue 3 - black4 - green/yellow - gnd |
| VOLTAGE | 250V AC/DC | 250V AC/DC |
| CURRENT | 4A | 3A |
| CONDUCTOR | #22-3 | #22-4 |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | ||

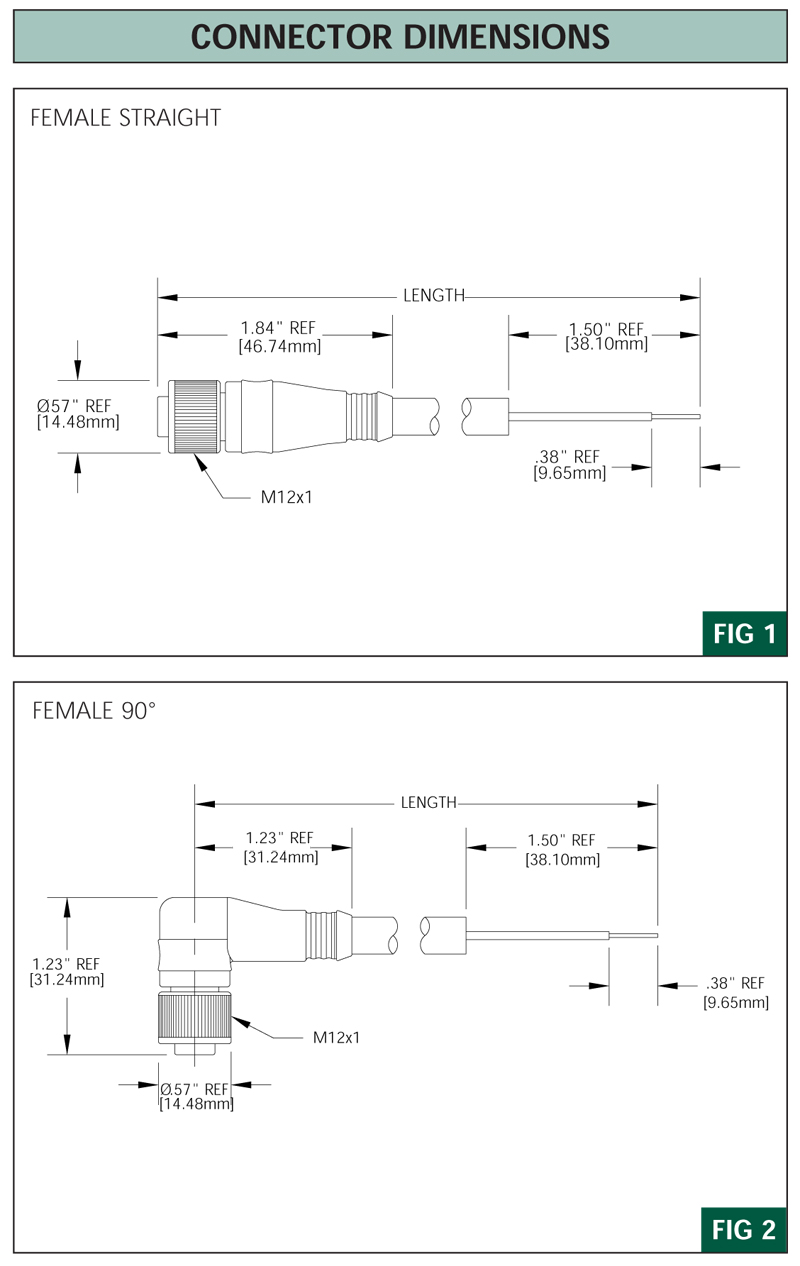

| FEMALE | SINGLE-ENDED CORDSETSWITH #22 AWG PVC CABLE 2 METERS LONG | |
| STRAIGHT | B03000A11M020 | B04000A11M020 |
| 90° | B03001A11M020 | B04001A11M020 |

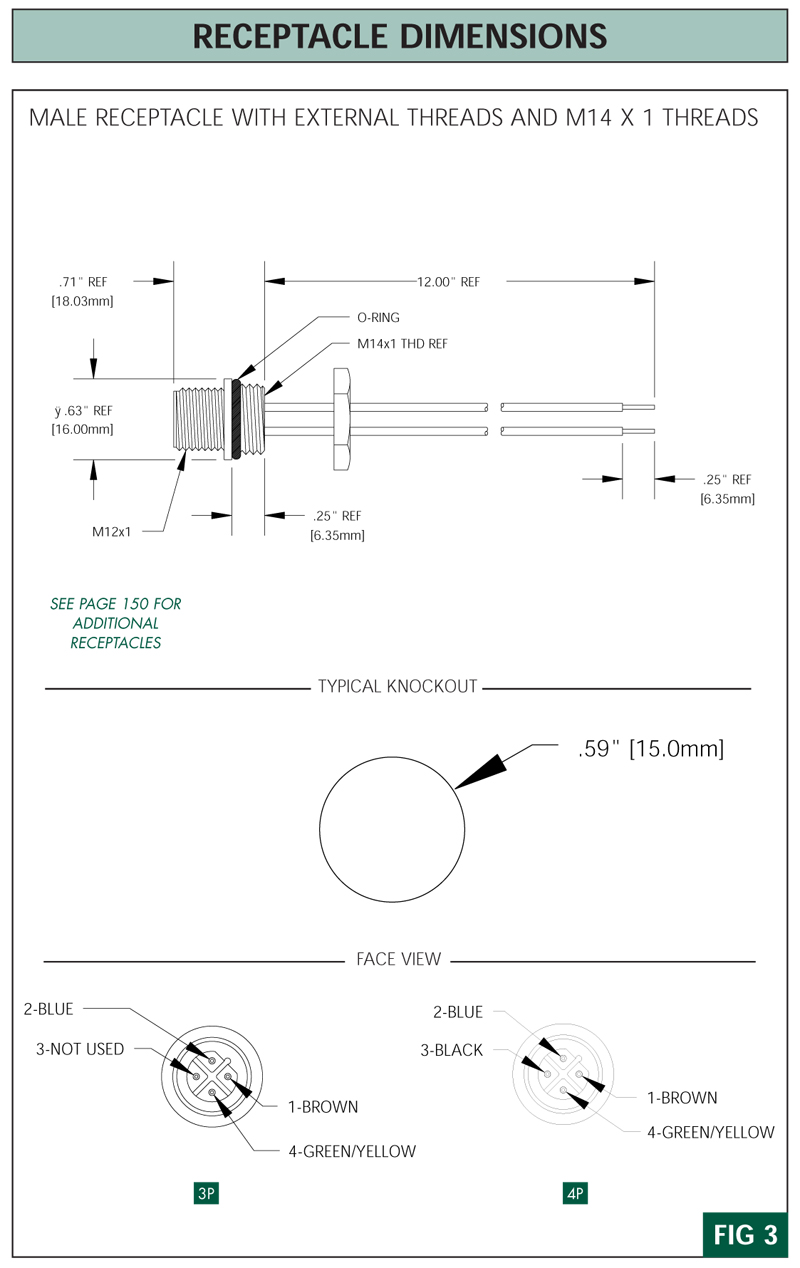

| MATING RECEP. | BR3E06A26A120 | BR4E06A26A120 |
