Micro-Change | Receptacles | 3 & 4 Poles | Reverse Keyway M12
#22 AWG PVC 12 Inch Leads, Fully Epoxy Potted
Black Anodized Aluminum Shell
Used in Control Panels, Junction Boxes and Sensors
| MECHANICAL |
| Shell: |
| Insert: |
| O-Ring |
| Conductors: |
| ELECTRICAL |
| Voltage Rating: |
| Amperage: |
| ENVIRONMENTAL |
| Protection: |
| Ambient Oper. Temp: |
| CERTIFICATIONS |
| UL: |
| CSA: |
| Black Anodized Aluminum |
| Nylon 6/6 |
| Nitrile Rubber |
| #22 AWG with PVC Insulation |
| Over 26 X #36 Copper Stranding, |
| 300V, UL Style 1061, |
| CSA AWM SR Outside |
| 250V AC/DC |
| 3P - 4A |
| 4P - 4A |
| IP 68, NEMA 6P |
| -4° TO 176° F (-20° TO 80° C) |
| UL Listed, File NO. E152210 |
| CSA Certified, File NO. LR6837 |
Part Number Selector
| 2P | 3P | |

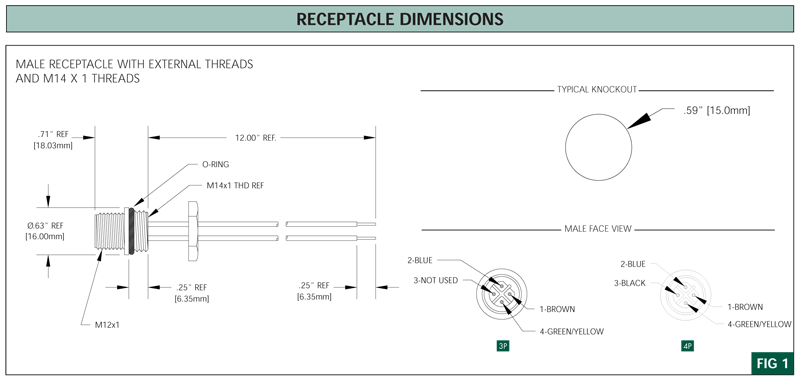

| MALE FACE VIEW |
 |
|
| COLOR CODE | 1 - brown 2 - blue 3 - not used 4 - green/yellow - gnd | 1 - brown 2 - blue 3 - black 4 - green/yellow - gnd |
| VOLTAGE | 250V AC/DC | 250V AC/DC |
| CURRENT | 4A | 3A |
| CONDUCTOR | #22-3 | #22-4 |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | ||
| MALE | RECEPTACLES WITH #22 AWG PVC LEADS 12 INCHES LONG | |
| M14 X1 THREAD | BR3E06A26A120 | BR4E06A26A120 |
