Mini-Change | Double-Ended Cordsets | 6, 7 & 8 Poles
#16 AWG Yellow STOOW Cable - U.S. Color Code
Oil-Resistant PVC Jacket
Low-Resistance Contact Design With Gold/Palladium Nickel Plating

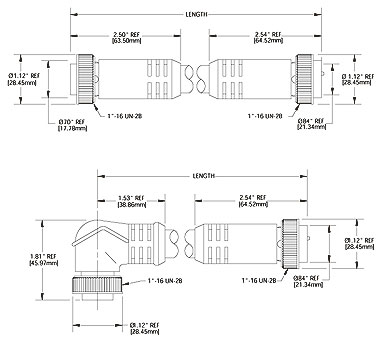

| MECHANICAL |
| Connector Face: |
| Molded Body: |
| Coupling Nut: |
| Couple Size: |
| Cable: |
| Outside Diameter: |
| ELECTRICAL |
| Protection: |
| Ambient Oper. Temp: |
| CERTIFICATIONS |
| UL: |
| CSA: |
| PVC - UL STD 94 - V0 |
| PVC - UL STD 94 - V0 |
| Zinc Diecast w/ Black Epoxy |
| Coat, Optional Stainless Steel |
| Type 303 |
| 1-1/8" |
| Yellow, #16 PVC Jacket & PVC |
| Conductor Insulation Over |
| 65 X #34 Copper Stranding, |
| UL STOOW CSA St |
| 6P - .54" (13.7mm) |
| 7P - .54" (13.7mm) |
| 8P - .61" (15.5mm) |
| IP 68, NEMA 6P |
| -4° TO 221° F (-20° TO 105° C) |
| UL Recognized, File NO. E46237 |
| CSA Certified, File NO. LR6837 |
Part Number Selector
| 6P | 7P | 8P | |

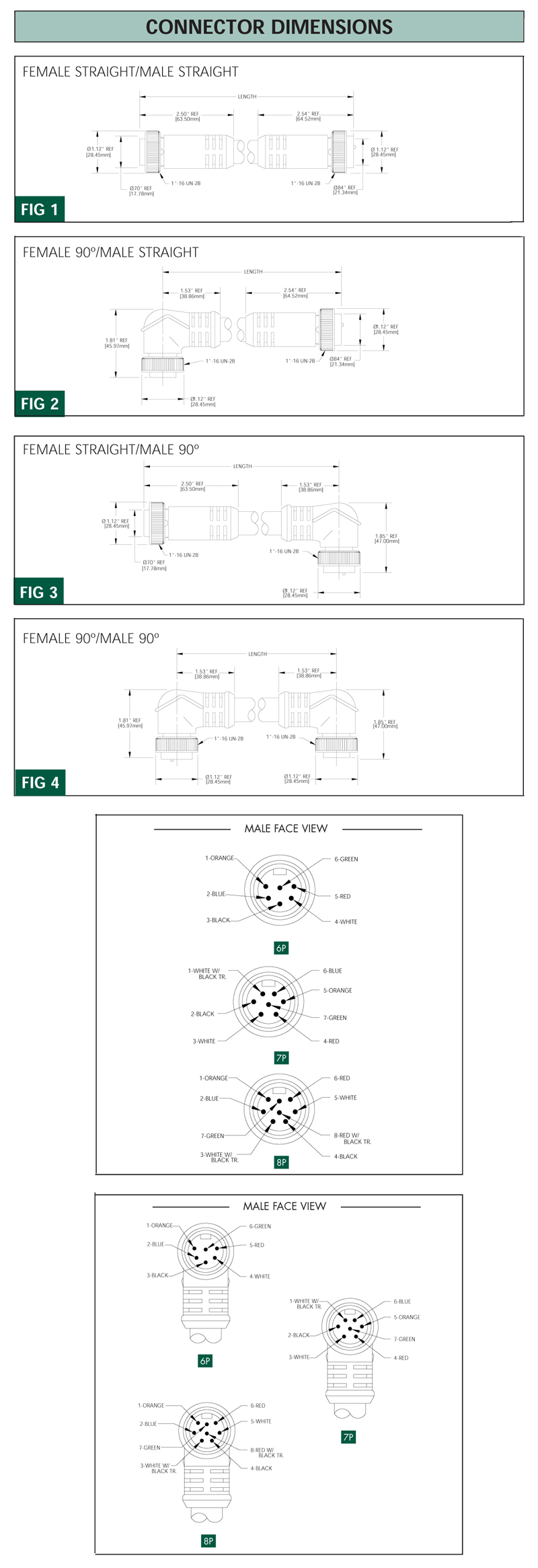

| FEMALE FACE VIEW |
 |
 |
 |
| COLOR CODE | 1 - orange 2 - blue 3 - black 4 - white 5 - red 6 - green-gnd | 1 - white-black trace 2 - black 3 - white 4 - red 5 - orange 6 - blue 7 - green-gnd | 1 - orange2 - blue3 - white-black trace4 - black5 - white6 - red7 - green-gnd8 - red-black trace |
| VOLTAGE | 600V AC/DC | 600V AC/DC | 600V AC/DC |
| CURRENT | 8A | 8A | 7A |
| CONDUCTOR | #16-6 | #16-7 | #16-8 |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | |||
| FEMALE/MALE | DOUBLE-ENDED CORDSETS WITH #16 AWG ST00W CABLE 3 FEET LONG | ||
| STRAIGHT/STRAIGHT | 226020A01F030 | 227020A01F030 | 228020A01F030 |
| 90°/STRAIGHT | 226021A01F030 | 227021A01F030 | 228021A01F030 |
| STRAIGHT/90° | 226022A01F030 | 227022A01F030 | 228022A01F030 |
| 90°/90° | 226023A01F030 | 227023A01F030 | 228023A01F030 |
Brad Harrison/Woodhead Products Distributed by Gross Automation | Brookfield, WI 262.233.1891
