Mini-Change | Single-Ended Cordsets | 3 & 5 Poles
#16 AWG Yellow STOOW Cable - Auto Color Code
Oil-Resistant PVC Jacket
Low-Resistance Contact Design with Gold/Palladium Nickel Plating
| MECHANICAL |
| Connector Face: |
| Molded Body: |
| Coupling Nut: |
| Coupler Size: |
| Cable: |
| Outside Diameter: |
| ELECTRICAL |
| Voltage Rating: |
| Amperage: |
| ENVIRONMENTAL |
| Protection: |
| Ambient Oper. Temp: |
| CERTIFICATIONS |
| UL: |
| CSA: |
| PVC - UL STD 94 - V0 |
| PVC - UL STD 94 - V0 |
| Zinc Diecast w/ Black Epoxy |
| E-Coat, Optional Stainless Steel |
| Type 303 or Non-Metallic Gray |
| Nylon 6/6 |
| 1" |
| Yellow, #16 AWG, PVC Jacket & |
| PVC Conductor Insulation Over |
| 65 X #34 Copper Stranding, |
| 600V, UL ST00W, CSA St |
| 3P - .41" (10.4mm) |
| 5P - .50" (12.7mm) |
| 600 V AC/DC |
| 3P - 13A |
| 5P - 8A |
| IP 68, NEMA 6P |
| -4° TO 221° F (-20° TO 105° C) |
| UL Recognized, File NO. E46237 |
| CSA Certified, File NO. LR6837 |
Part Number Selector
| 3P | 5P | |
| FEMALE FACE VIEW |
 |
 |
| COLOR CODE | 1 - green-gnd 2 - red w/ #2 3 - red w/ #3 | 1 - red w/ #1 2 - red w/ #2 3 - green-gnd 4 - red w/ #4 5 - red w/ #5 |
| VOLTAGE | 600V AC/DC | 600V AC/DC |
| CURRENT | 13A | 8A |
| CONDUCTOR | #16-3 | #16-5 |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | ||

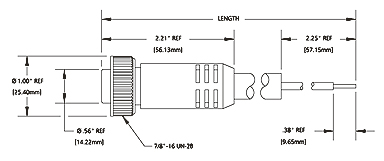

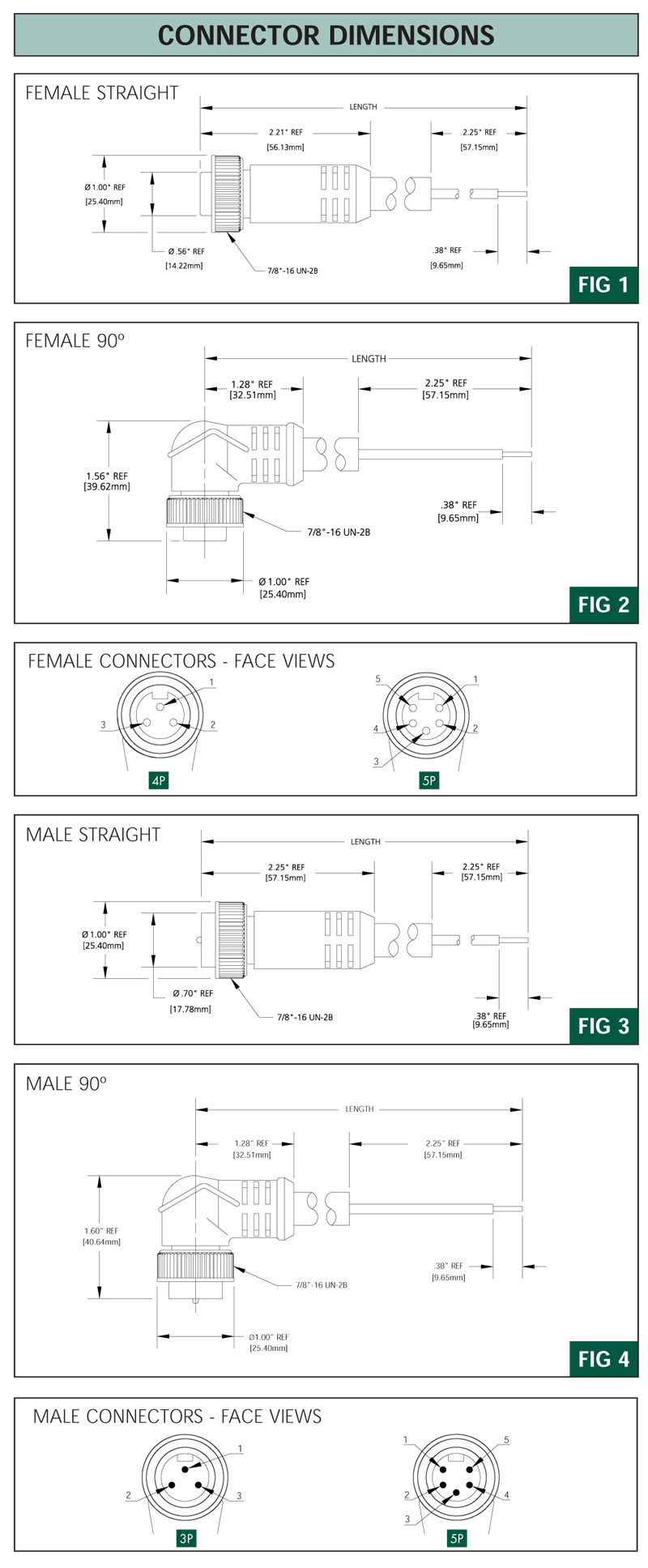

| FEMALE | SINGLE-ENDED CORDSETS WITH #16 AWG ST00W CABLE 3 FEET LONG | |
| STRAIGHT | 103000A02F030 | 105000A02F030 |
| 90° | 103001A02F030 | 105001A02F030 |

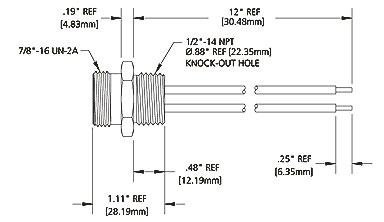

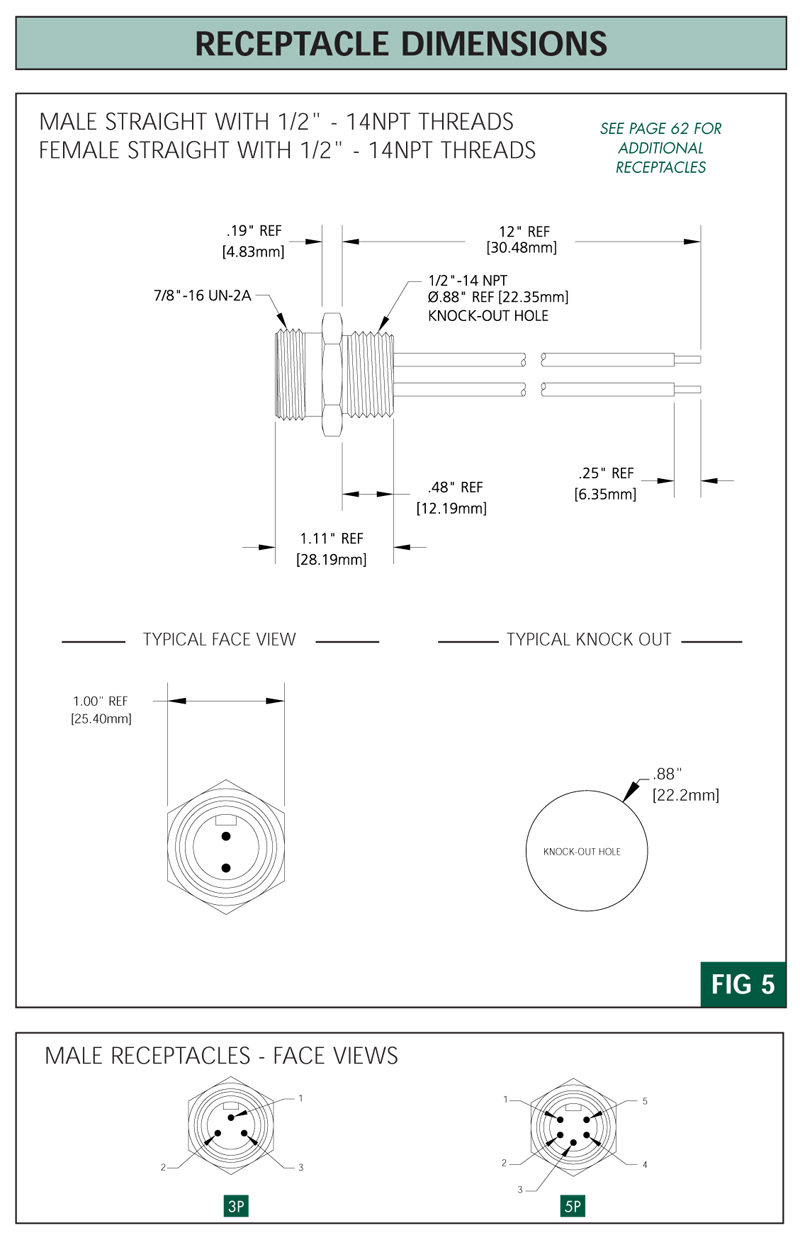

| MATING RECEP. | 1R3006A24A120 | 1R5006A24A120 |
| MALE | DOUBLE-ENDED CORDSETS WITH #16 AWG ST00W CABLE 3 FEET LONG | |
| STRAIGHT | 103002A02F030 | 1R5002A02F030 |
| 90° | 103003A02F030 | 1R5003A02F030 |
| MATING RECEP. | 1R3004A24A120 | 1R5004A24A120 |
