Mini-Change | Receptacles | 3 & 5 Poles
#16 AWG PVC 12-Inch Leads - Auto Color Code, Epoxy Potted
Straight and 90° Male - Straight Female
Low-Resistance Contact Design with Gold/Palladium Nickel Plating
| MECHANICAL |
| Shell: |
| Insert: |
| Conductors: |
| ELECTRICAL |
| Voltage Rating: |
| Amperage: |
| ENVIRONMENTAL |
| Protection: |
| Ambient Oper. Temp: |
| CERTIFICATIONS |
| UL: |
| CSA: |
| Straight & 90° Zinc Diecast w/ |
| Black Epoxy Coat, Optional |
| Stainless Steel Type 303 on |
| Straight Shell Design |
| PVC - UL STD 94 - V0 |
| #16 AWG, PVC Insulation Over |
| 26 X #30 Copper Stranding, |
| 600V, UL Style 1015 CSA TEW |
| 600 V AC/DC |
| 3P - 13A |
| 5P - 8A |
| IP 68, NEMA 6P |
| -4° TO 221° F (-20° TO 105° C) |
| UL Recognized, File NO. E46237 |
| CSA Certified, File NO. LR6837 |
Part Number Selector
| 3P | 5P | |
| MALE FACE VIEW |  |
 |
| COLOR CODE |
1 - green-gnd 2 - red w/ #2 3 - red w/ #3 | 1 - red w/ #12 - red w/ #23 - green-gnd4 - red w/ #44 - red w/ #5 |
| VOLTAGE | 600V AC/DC | 600V AC/DC |
| CURRENT | 13A | 8A |
| CONDUCTOR | #16-3 | #16-5 |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | ||
| MALE | RECEPTACLES WITH #16 AWG PVC LEADS 12 INCHES LONG | |

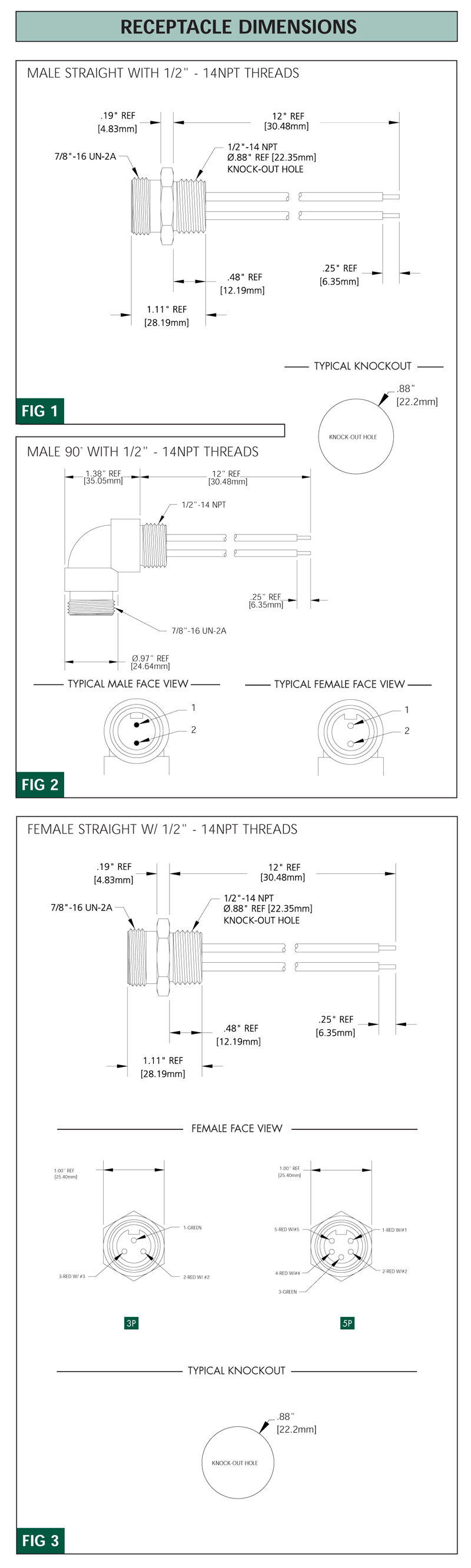

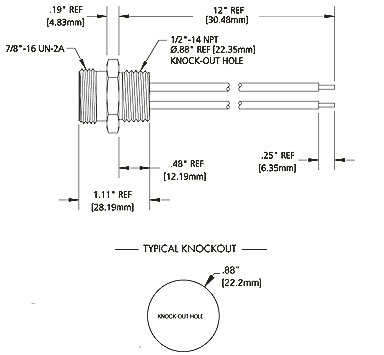

| STRAIGHT W/ 1/2"-14NPT |
1R3006A24A120 | 1R5006A24A120 |
| 90° W/ 1/2"-14NPT |
1R3007A24A120 | 1R5007A24A120 |
| FEMALE | RECEPTACLES WITH #16 AWG PVC LEADS 12 INCHES LONG | |
| STRAIGHT W/ 1/2"-14NPT |
1R3004A24A120 | 1R5004A24A120 |
| PART NO. | ACCESSORIES | |
| 5601 | Locknut 1/2"-14NPT, zinc plated steel | |
| 5611 | Gasket, black neoprene | |
Brad Harrison/Woodhead Products Distributed by Gross Automation | Brookfield, WI 262.233.1891
