Mini-Change | Single-Ended Cordsets | 3, 4 & 5 Poles
#16 AWG Yellow SOO Cable - Auto Color Code
Oil-Resistant NBR Rubber Jacket
Low-Resistance Contact Design with Gold/Palladium Nickel Plating
| MECHANICAL |
| Connector Face: |
| Molded Body: |
| Coupling Nut: |
| Coupler Size: |
| Cable: |
| Outside Diameter: |
| ELECTRICAL |
| Voltage Rating: |
| Amperage: |
| ENVIRONMENTAL |
| Protection: |
| Ambient Oper. Temp: |
| CERTIFICATIONS |
| UL: |
| CSA: |
| PVC - UL STD 94 - V0 |
| PVC - UL STD 94 - V0 |
| Zinc Diecast w/ Black Epoxy |
| E-Coat, Optional Stainless Steel |
| Type 303 or Non-Metallic Gray |
| Nylon 6/6 |
| 1" |
| Yellow, #16 AWG, Nitrile |
| Rubber/PVC Jacket, Hypalon |
| Conductor Insulation Over |
| 65 X #34 Copper Stranding, |
| 600V UL Type SOO CSA SO |
| 3P - .42" (10.7mm) |
| 4P - .45" (11.4mm) |
| 5P - .52" (13.2mm) |
| 600V AC/DC |
| 3P - 13A |
| 4P - 10A |
| 5P - 8A |
| IP 68, NEMA 6P |
| -4° TO 194° F (-20° TO 90° C) |
| UL Recognized, File NO. E46237 |
| CSA Certified, File NO. LR6837 |
Part Number Selector
| 3P | 4P | 5P | |
| FEMALE FACE VIEW |
 |
 |
 |
| COLOR CODE | 1 - green-gnd 2 - red w/ black trace 3 - red w/ white trace | 1 - red w/ black trace2 - red w/ white trace3 - red4 - green-gnd | 1 - red w/ white trace 2 - red 3 - green-gnd 4 - red w/ orange trace 5 - red w/ black trace |
| VOLTAGE | 600V AC/DC | 600V AC/DC | 600V AC/DC |
| CURRENT | 13A | 10A | 8A |
| CONDUCTOR | #16-3 | #16-4 | #16-5 |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | |||

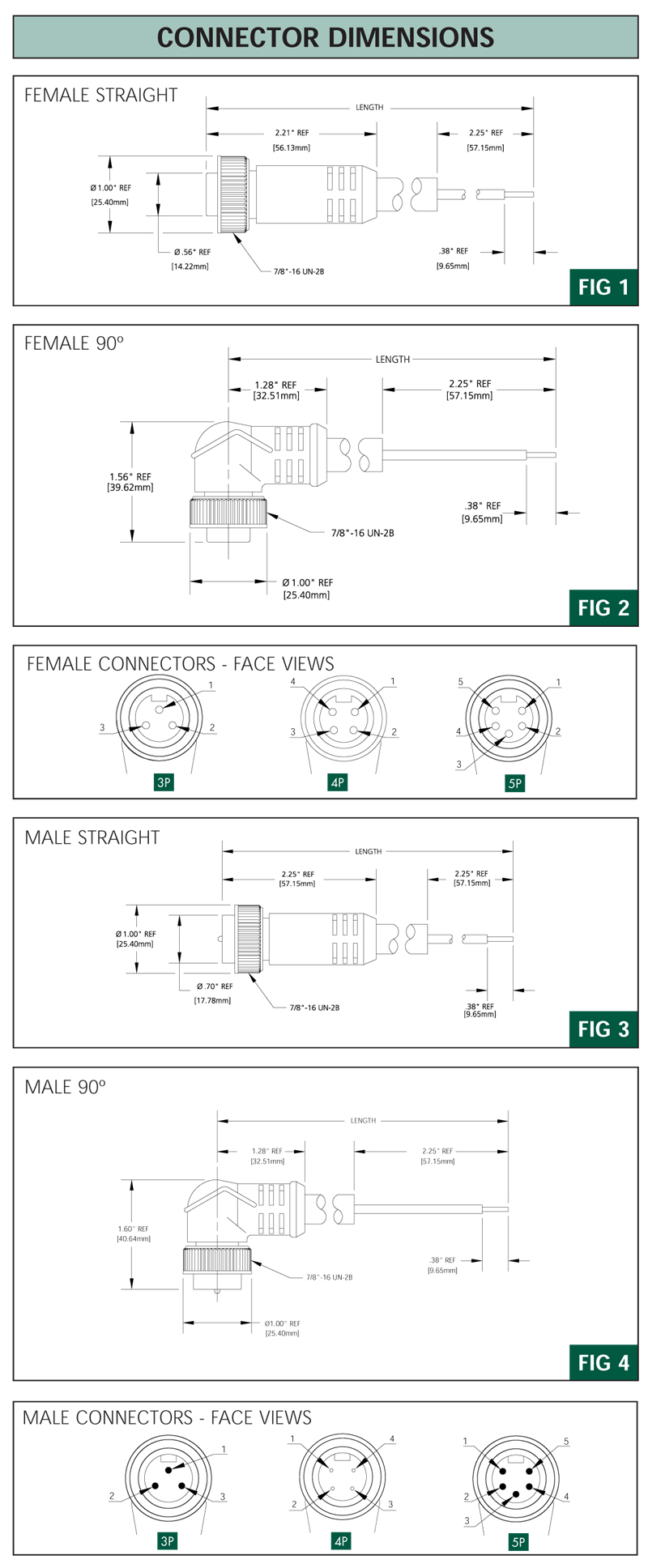

| FEMALE | SINGLE-ENDED CORDSETS WITH #16 AWG TYPE S00 CABLE 3 FEET LONG | ||
| STRAIGHT | 103000C01F030 | 104000C01F030 | 105000C01F030 |
| 90° | 103001C01F030 | 104001C01F030 | 105001C01F030 |

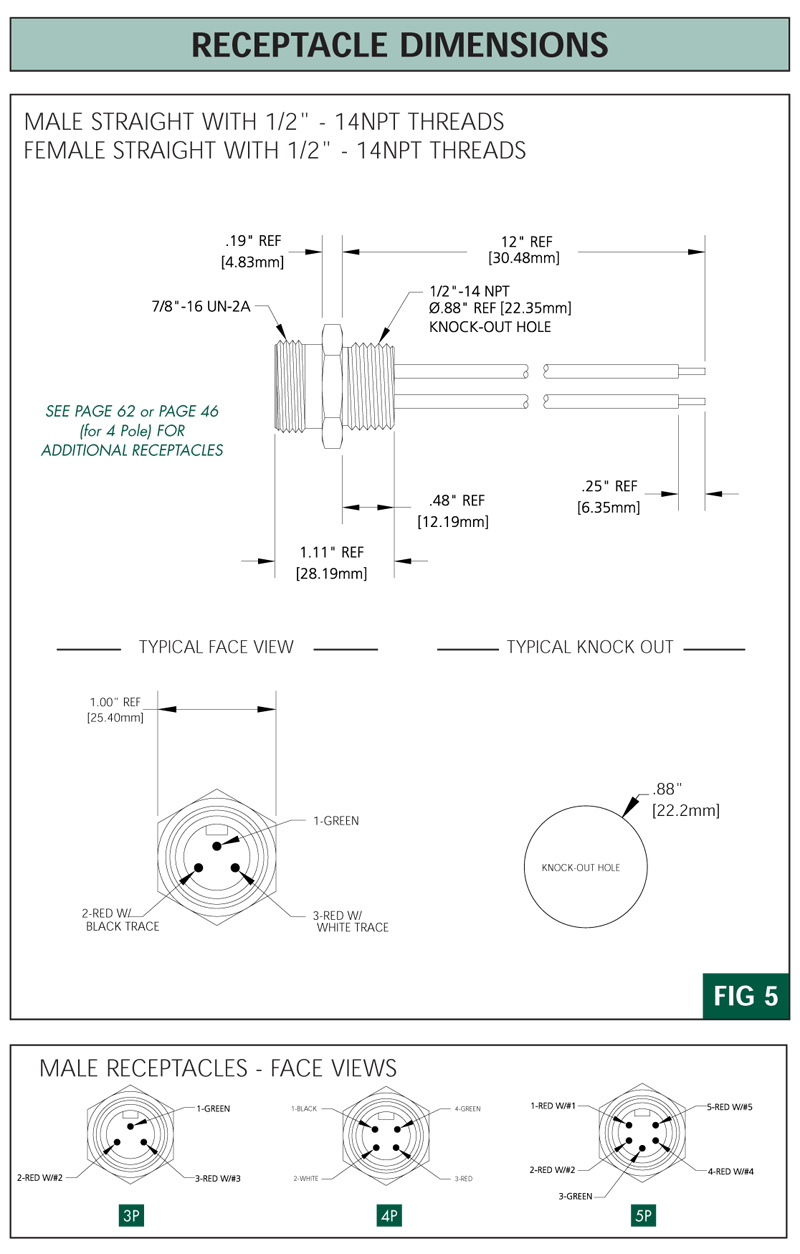

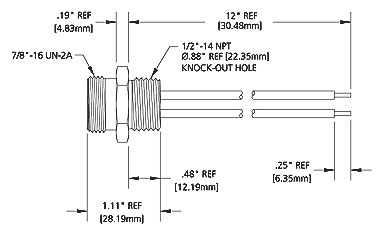

| MATING RECEP. | 1R3006A24A120 | 1R4006A20A120 | 1R5006A24A120 |
| MALE | SINGLE-ENDED CORDSETS WITH #16 AWG TYPE S00 CABLE 3 FEET LONG | ||
| STRAIGHT | 103002C01F030 | 104002C01F030 | 105002C01F030 |
| 90° | 103003C01F030 | 104003C01F030 | 105003C01F030 |
| MATING RECEP. | 1R3004A24A120 | 1R4004A20A120 | 1R5004A24A120 |
