Mini-Change | Receptacles | 2-6 Poles
#16 AWG PVC 12-Inch Leads - U.S. / Auto Color Code, Epoxy Potted
Straight, 90° and Flange Mount in Male and Female Versions
Low-Resistance Contact Design with Gold/Palladium Nickel Plating
| MECHANICAL |
| Shell: |
| Insert: |
| Conductors: |
| ELECTRICAL |
| Voltage Rating: |
| Amperage: |
| ENVIRONMENTAL |
| Protection: |
| Ambient Oper. Temp: |
| CERTIFICATIONS |
| UL: |
| CSA: |
| Zinc Diecast w/ Black Epoxy |
| Coat, Optional Stainless Steel |
| Type 303 or Non-Metallic Gray |
| Nylon 6/6 |
| 90°: Zinc Diecast w/ Black |
| E-Coat |
| Flange Mount: Gray Anodized |
| Aluminum |
| PVC - UL STD 94 - V0 |
| #16 AWG, PVC Insulation Over |
| 26 X #30 Copper Stranding, |
| 600V, UL Style 1015 CSA TEW |
| 600 V AC/DC |
| 2P - 13A |
| 3P - 13A |
| 4P - 10A |
| 5P - 8A |
| 6P - 8A |
| IP 68, NEMA 6P |
| -4° TO 221° F (-20° TO 105° C) |
| UL Recognized, File NO. E46237 |
| CSA Certified, File NO. LR6837 |

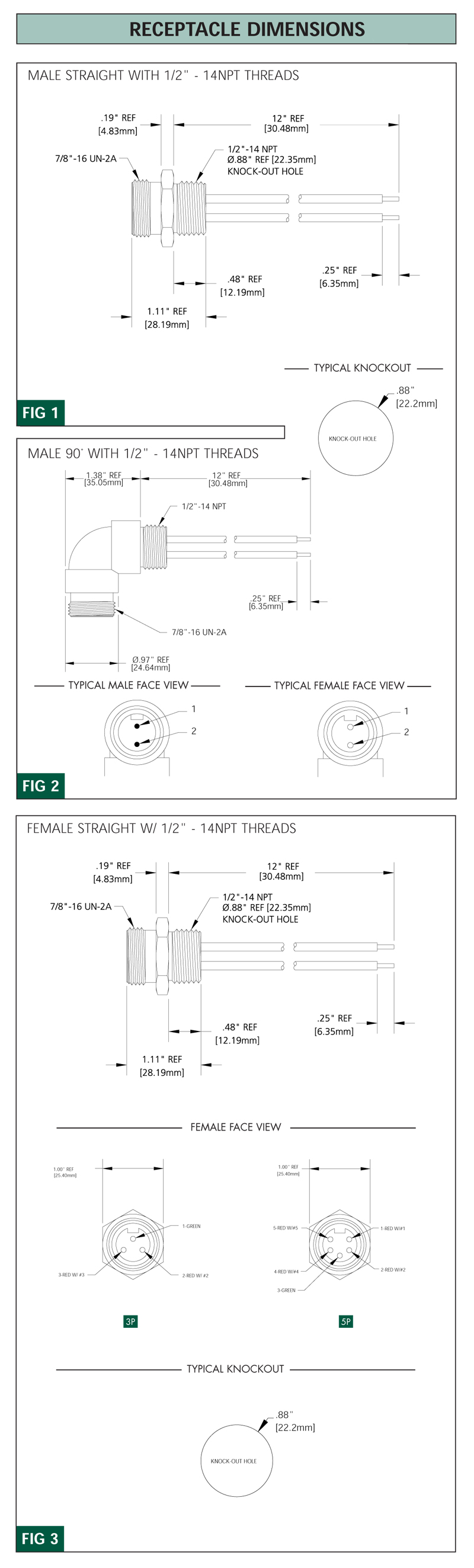

Part Number Selector
| 3P | 5P | |
| MALE FACE VIEW |  |
 |
| COLOR CODE (AUTO) |
1 - green-gnd 2 - red w/ #2 3 - red w/ #3 | 1 - red w/ #12 - red w/ #23 - green-gnd4 - red w/ #44 - red w/ #5 |
| VOLTAGE | 600V AC/DC | 600V AC/DC |
| CURRENT | 13A | 8A |
| CONDUCTOR | #16-3 | #16-5 |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | ||
| MALE | RECEPTACLES WITH #16 AWG PVC LEADS 12 INCHES LONG | |
| STRAIGHT W/ 1/2"-14NPT |
1R3006A24A120 | 1R5006A24A120 |
| 90° W/ 1/2"-14NPT |
1R3007A24A120 | 1R5007A24A120 |
| FEMALE | RECEPTACLES WITH #16 AWG PVC LEADS 12 INCHES LONG | |
| STRAIGHT W/ 1/2"-14NPT |
1R3004A24A120 | 1R5004A24A120 |
| PART NO. | ACCESSORIES | |
| 5601 | Locknut 1/2"-14NPT, zinc plated steel | |
| 5611 | Gasket, black neoprene | |
| 2P | 3P | 4P | 5P | 6P | |
| MALE FACE VIEW |
 |
|
 |
|
 |
| COLOR CODE (U.S.) |
1 - white 2 - black | 1 - green-gnd 2 - black 3 - white | 1 - black2 - white3 - red4 - green-gnd | 1 - white 2 - red 3 - green-gnd 4 - orange 5 - black | 1 - white 2 - red 3 - green-gnd 4 - orange 5 - black 6 - blue |
| VOLTAGE | 600V AC/DC | 600V AC/DC | 600V AC/DC | 600V AC/DC | 600V AC/DC |
| CURRENT | 13A | 13A | 10A | 8A | 8A |
| CONDUCTOR | #16-2 | #16-3 | #16-4 | #16-5 | #16-6 |
| MALE | RECEPTACLES WITH #16 AWG PVC LEADS 12 INCHES LONG | ||||
| STRAIGHT | 1R2006A20A120 | 1R3006A20A120 | 1R4006A20A120 | 1R5006A20A120 | 1R6006A20A120 |
| 90° | 1R2007A20A120 | 1R3007A20A120 | 1R4007A20A120 | 1R5007A20A120 | 1R6007A20A120 |
| FLANGE MOUNT | 1R2G06A20A120 | 1R3G06A20A120 | 1R4G06A20A120 | 1R5G06A20A120 | 1R6G06A20A120 |
| FEMALE | RECEPTACLES WITH #16 AWG PVC LEADS 12 INCHES LONG | ||||
| STRAIGHT | 1R2004A20A120 | 1R3004A20A120 | 1R4004A20A120 | 1R5004A20A120 | 1R6004A20A120 |
| 90° | 1R2005A20A120 | 1R3005A20A120 | 1R4005A20A120 | 1R5005A20A120 | 1R6005A20A120 |
| FLANGE MOUNT | 1R2G04A20A120 | 1R3G04A20A120 | 1R4G04A20A120 | 1R5G04A20A120 | 1R6G04A20A120 |
| PART NO. | ACCESSORIES | ||||
| 5601 | Locknut 1/2"-14NPT, zinc plated steel | ||||
| 5611 | Gasket, black neoprene | ||||
