Mini-Change | Receptacles | 9, 10 & 12 Poles
#16 AWG PVC 12-Inch Leads - U.S. Color Code, Epoxy Potted
Black Epoxy Coat Zinc Diecast Shell Design
Use in Control Panels, Junction Boxes and Sensors
| MECHANICAL |
| Shell: |
| Insert: |
| Conductors: |
| ELECTRICAL |
| Voltage Rating: |
| Amperage: |
| ENVIRONMENTAL |
| Protection: |
| Ambient Oper. Temp: |
| CERTIFICATIONS |
| UL: |
| CSA: |
| Zinc Diecast w/ Black Epoxy |
| Coat, Optional Stainless Steel |
| Type 303 |
| PVC - UL STD 94 - V0 |
| #16 AWG, PVC Insulation Over |
| 26 X #30 Copper Stranding, |
| 600V, UL Style 1015 CSA TEW |
| 600 V AC/DC |
| 9P - 7A |
| 10P - 7A |
| 12P - 5A |
| IP 68, NEMA 6P |
| -4° TO 221° F (-20° TO 105° C) |
| UL Recognized, File NO. E46237 |
| CSA Certified, File NO. LR6837 |
Part Number Selector
| 9P | 10P | 12P | |
| MALE FACE VIEW |
 |
 |
 |
| COLOR CODE | 1 - orange 2 - blue 3 - red-black trace 4 - green-black trace 5 - white 6 - red 7 - green-gnd 8 - white-black trace 9 - black | 1 - orange2 - blue3 - white-black trace4 - red-black trace5 - green-black trace6 - orange-black trace7 - red8 - green-gnd9 - black10 - white | 1 - orange 2 - blue 3 - white-black trace 4 - red-black trace 5 - green-black trace6 - orange-black trace7 - blue-black trace8 - black-white trace9 - green-gnd10 - red11 - white12 - black |
| VOLTAGE | 600V AC/DC | 600V AC/DC | 600V AC/DC |
| CURRENT | 7A | 7A | 5A |
| CONDUCTOR | #16-9 | #16-10 | #16-12 |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | |||
| MALE | RECEPTACLES WITH #16 AWG PVC LEADS 12 INCHES LONG | ||

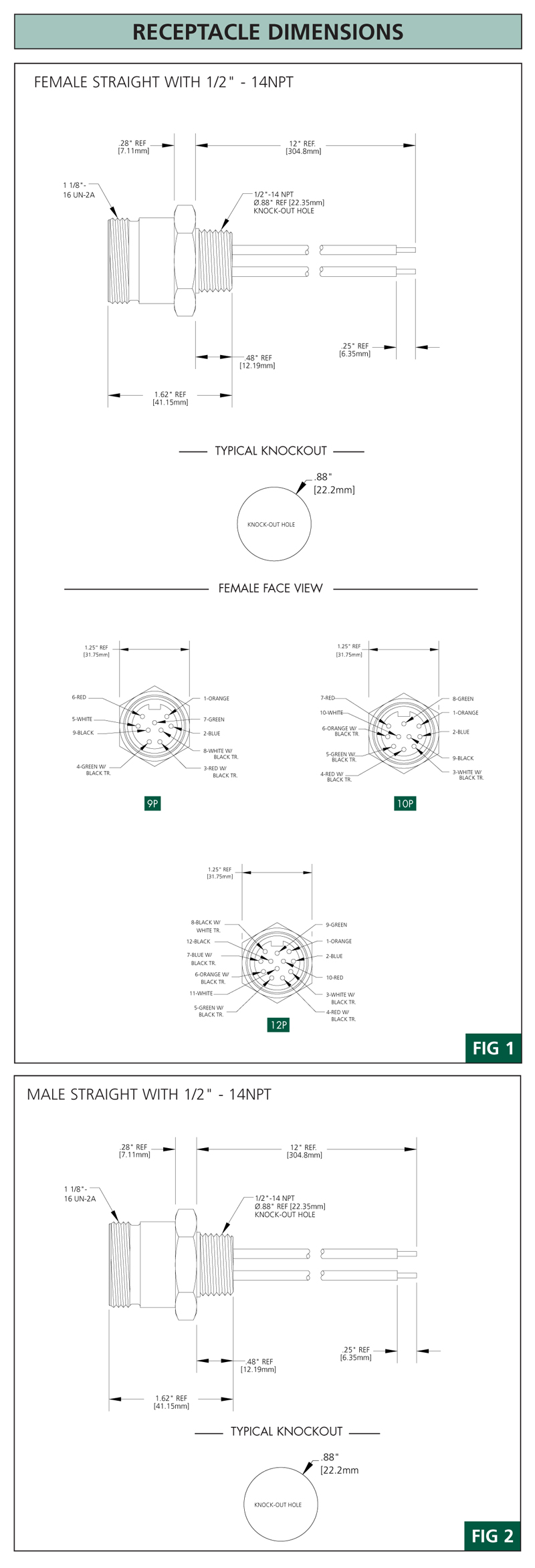

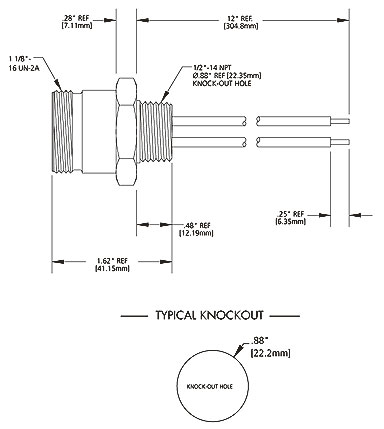

| STRAIGHT W/ 1/2" - 14NPT |
3R9006A20A120 | 3R1006A20A120 | 3R2006A20A120 |
| FEMALE | RECEPTACLES WITH #16 AWG PVC LEADS 12 INCHES LONG | ||
| STRAIGHT W/ 1/2" - 14NPT |
3R9004A20A120 | 3R1004A20A120 | 3R2004A20A120 |
| PART NO. | ACCESSORIES | ||
| 5601 | Locknut 1/2"-14NPT, zinc plated steel | ||
| 5611 | Gasket, black neoprene | ||
