Quick-Change | Male Cordsets
Quick Disconnect and Positive Alignment of Power Conductors in Harsh Environments
#10, #12 and #14 AWG Yellow Type SOW Cable
Single-Ended Cordsets and Mating Receptacles
| MECHANICAL (CORDSET) |
| Plug Face: |
| Molded Body: |
| Coupling Nut: |
| Cable: |
| MECHANICAL (RECEP.) |
| Insert Material: |
| Shell Material: |
| Cable: |
| Stranding: |
| ELECTRICAL |
| Voltage Rating: |
| Amperage: |
| ENVIRONMENTAL |
| Protection: |
| Ambient Oper. Temp: |
| CERTIFICATIONS |
| UL: |
| CSA: |
| Nitrile/SBR |
| Nitrile/SBR |
| Thermoplastic w/ Optional Alum. |
| Yellow Neoprene Cable Jacket |
| Type SOW, 105°C, UL Listed, |
| 90°C CSA Certified |
| Nitrile/SBR |
| Thermoplastic w/ Optional Alum. |
| 10/12/14 AWG, 1 Conductor PVC |
| Jacketed, 105°C |
| Tinned Copper |
| 600V AC/DC |
| 15-30A |
| IP 68, NEMA 6P |
| -4° TO 221° F (-20° TO 105° C) |
| UL Recognized, File NO E46237 |
| CSA Certified, File NO LR6837 |

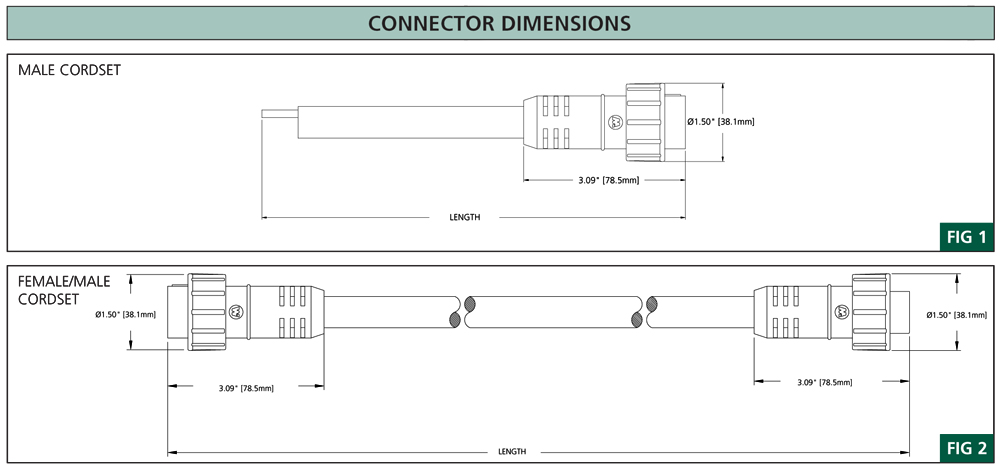

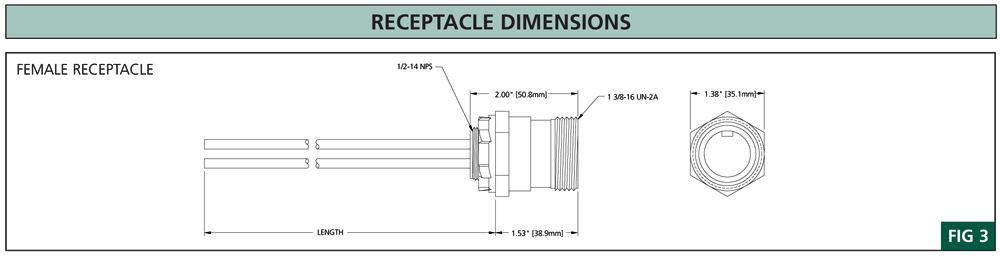

Part Number Selector
| 2P | 3P | 4P | |||||||
| FEMALE FACE VIEW |
 |
 |
 |
||||||
| COLOR CODE | 1 - black 2 - white | 1 - black 2 - white 3 - green-gnd | 1 - black2 - green-gnd3 - red4 - white | ||||||
| VOLTAGE | 600V AC/DC | 600V AC/DC | 600V AC/DC | ||||||
| CURRENT | 18A | 25A | 30A | 18A | 25A | 30A | 15A | 20A | 25 |
| CONDUCTOR | #14 | #12 | #10 | #14 | #12 | #10 | #14 | #12 | #10 |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | |||||||||
| MALE | SINGLE-ENDED CORDSETS WITH 600V TYPE SOW CABLE | ||||||||
| 3' | 32019 | 32026 | 32050 | 32319 | 32353 | 32404 | 32634 | 32650 | 32754 |
| 6' | 32020 | 32027 | 32051 | 32320 | 32354 | 32405 | 32635 | 32676 | 32755 |
| 12' | 32021 | 32028 | 32052 | 32321 | 32355 | 32406 | 32636 | 32677 | 32756 |
| MATING RECEP. | RECEPTACLES WITH 12" LONG PVC-INSULATED WIRE | ||||||||
| THREAD 1/2" | 32015 | 32034 | 32067 | 32315 | 32359 | 32421 | 32630 | 32682 | 32769 |
| THREAD 3/4" | 32016 | 32035 | 32068 | 32316 | 32360 | 32422 | 32631 | 32683 | 32770 |
