Quick-Change | Female Cordsets
Quick Disconnect and Positive Alignment of Power Conductors in Harsh Environments
#10, #12 and #14 AWG Yellow Type SOW Cable
Single-Ended Cordsets and Mating Receptacles
| MECHANICAL (CORDSET) |
| Plug Face: |
| Molded Body: |
| Coupling Nut: |
| Cable: |
| MECHANICAL (RECEP.) |
| Insert Material: |
| Shell Material: |
| Cable: |
| Stranding: |
| ELECTRICAL |
| Voltage Rating: |
| Amperage: |
| ENVIRONMENTAL |
| Protection: |
| Ambient Oper. Temp: |
| CERTIFICATIONS |
| UL: |
| CSA: |
| Nitrile/SBR |
| Nitrile/SBR |
| Thermoplastic w/ Optional Alum. |
| Yellow Neoprene Cable Jacket |
| Type SOW, 105°C, UL Listed, |
| 90°C CSA Certified |
| Nitrile/SBR |
| Thermoplastic w/ Optional Alum. |
| 10/12/14 AWG, 1 Conductor PVC |
| Jacketed, 105°C |
| Tinned Copper |
| 600V AC/DC |
| 15-30A |
| IP 68, NEMA 6P |
| -4° TO 221° F (-20° TO 105° C) |
| UL Recognized, File NO E46237 |
| CSA Certified, File NO LR6837 |
Part Number Selector
| 2P | 3P | 4P | |||||||
| FEMALE FACE VIEW |
 |
 |
 |
||||||
| COLOR CODE | 1 - black 2 - white | 1 - black 2 - white 3 - green-gnd | 1 - black2 - green-gnd3 - red4 - white | ||||||
| VOLTAGE | 600V AC/DC | 600V AC/DC | 600V AC/DC | ||||||
| CURRENT | 18A | 25A | 30A | 18A | 25A | 30A | 15A | 20A | 25 |
| CONDUCTOR | #14 | #12 | #10 | #14 | #12 | #10 | #14 | #12 | #10 |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | |||||||||

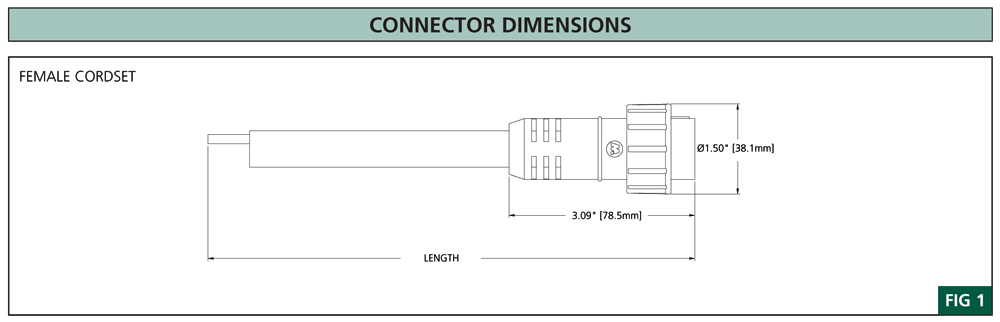

| FEMALE | SINGLE-ENDED CORDSETS WITH 600V TYPE SOW CABLE | ||||||||
| 3' | 32022 | 32029 | 32053 | 32322 | 32342 | 32407 | 32637 | 32669 | 32757 |
| 6' | 32023 | 32030 | 32054 | 32323 | 32350 | 32408 | 32638 | 32678 | 32758 |
| 12' | 32024 | 32031 | 32055 | 32324 | 32356 | 32409 | 32639 | 32679 | 32759 |

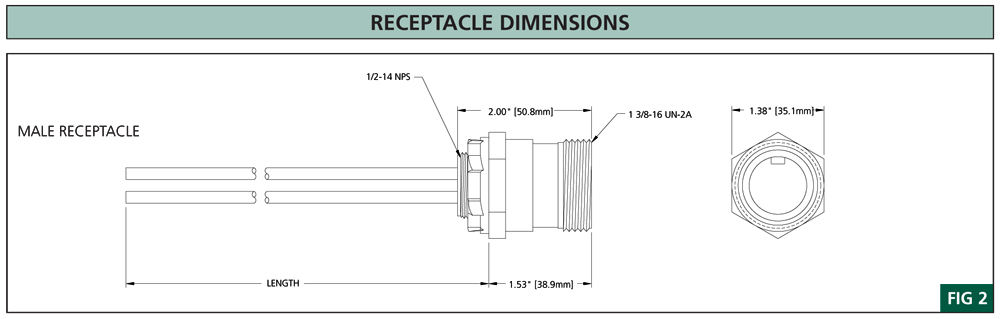

| MATING RECEP. | RECEPTACLES WITH 12" LONG PVC-INSULATED WIRE | ||||||||
| THREAD 1/2" | 32017 | 32032 | 32065 | 32317 | 32357 | 32419 | 32632 | 32680 | 32767 |
| THREAD 3/4" | 32018 | 32033 | 32066 | 32318 | 32358 | 32420 | 32633 | 32681 | 32768 |
