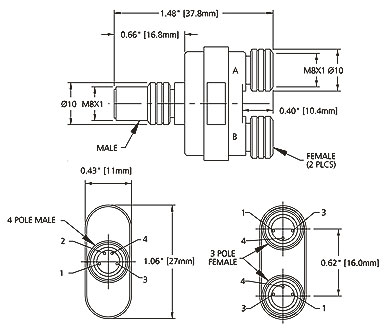

Nano-Change | M8 Splitters - (2) Female to (1) Male
Combines Two Inputs Into One Small Footprint Molded Output Connection
M8 to M8 Threaded Connection and M8 to M12 Connections
Consolidates 3-Wire DC Sensors or Switches
| MECHANICAL |
| Connector Face: |
| Molded Body: |
| Coupling Nut Material: |
| ELECTRICAL |
| Voltage Rating: |
| Amperage: |
| ENVIRONMENTAL |
| Protection: |
| Ambient Oper. Temp: |
| PUR |
| PUR |
| Nickel-Plated Brass |
| 75 V DC; 60 V AC |
| 4A |
| IEC IP 68 |
| 32° TO 185°C (0º TO 85ºC) |
Part Number Selector
| "Y" Splitter - M8 to M8 | "Y" Splitter - M8 to M12 | |
| FEMALE FACE VIEW (INPUTS) |
 |
|
| FEMALE PIN | 1 - +VDC 2 - output 3 - common | 1 - +VDC2 - output3 - common |
| MALE FACE VIEW (OUTPUT) |
 |
 |
| MALE PIN | 1 - +VDC 2 - output (Branch “B”) 3 - common 4 - output (Branch “A”) | 1 - +VDC 2 - output (Branch “B”) 3 - common 4 - output (Branch “A”) |
| VOLTAGE | 60V AC / 75V DC | 60V AC / 75V DC |
| CURRENT | 4A | 4A |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | ||
| “Y” MOLDED SPLITTER (2) 3P M8 FEMALE INPUTS; (1) 4P M8 MALE OUTPUT | ||
| SPLITTER | 080804LMF00000 | |
| “Y” MOLDED SPLITTER (2) 3P M8 FEMALE INPUTS; (1) 4P M12 MALE OUTPUT | ||
| SPLITTER | 080804EMF00000 | |
Brad Harrison/Woodhead Products Distributed by Gross Automation | Brookfield, WI 262.233.1891
