POWER

CORDSETS

MECHANICAL

Connector Face:

Molded Body:

O-Ring:

Coupling Nut:

Cable:

Outside Diameter:

ELECTRICAL

Voltage Rating:

Amperage:

ENVIRONMENTAL

Protection:

Ambient Oper. Temp:

CERTIFICATIONS

UL:

CSA:

Nylon 6/6
PVC
Nitrile Rubber
Zinc Diecast w/ Black Epoxy
Coat, Optional Stainless Steel
Type 303
Yellow 22 AWG PVC Jacket and
PVC Conductor Insulation Over
26 X #36 Copper Stranding,
300V, UL Style 2661,
CSA AWM l/ll A/B,
Optional 80% Metallic Braid
Without Braid:	With Braid:
3P - .18"	3P - .23"

10 - 30 V DC
3P - 4A

IP 68, NEMA 6P
-4° TO 221° F (-20° TO 105° C)

UL Listed, File NO. E152210
CSA Certified, File NO. LR6837

Part Number Selector

	3P PNP	4P NPN
FEMALE FACE VIEW
COLOR CODE	1 - brown 2 - not used 3 - blue 4 - black 5 - not used	1 - brown2 - not used 3 - blue 4 - black 5 - not used
VOLTAGE	10 T0 30V DC	10 T0 30V DC
CURRENT	4A	4A
CONDUCTOR	#22-3	#22-3
	CLICK ON A PART NUMBER FOR MORE OPTIONS

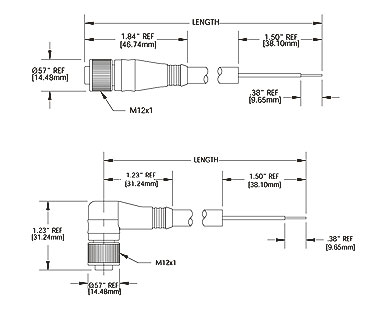

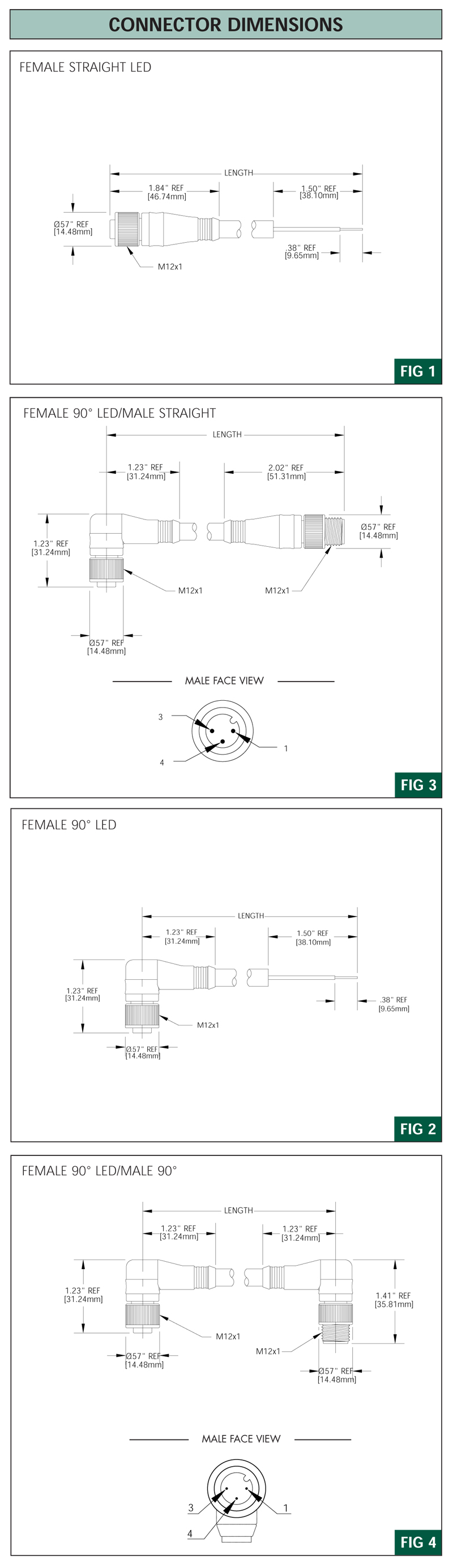

FEMALE	SINGLE-ENDED CORDSETS WITH #22 AWG PVC CABLE WITHOUT BRAID 2 METERS LONG
STRAIGHT LED	8030P0A09M020	8030N0A09M020
90° LED	8030P1A09M020	8030N1A09M020
FEMALE/MALE	DOUBLE-ENDED CORDSETS WITH #22 AWG PVC CABLE WITHOUT BRAID 2 METERS LONG
90° LED/STRAIGHT	8830P7A09M020	8830N7A09M020
90° LED/90°	8830P9A09M020	8830N9A09M020
