Micro-Change | Receptacles - Back Panel Mount | Dual Keyway
#18 AWG PVC 1 Meter Leads - Automotive Color Code, Epoxy Potted
Gray Anodized Aluminum Shell
Easy Installation and Keyway Orientation
| MECHANICAL |
| Shell: |
| Insert: |
| Conductor: |
| O-Ring: |
| Gasket: |
| ELECTRICAL |
| Voltage Rating: |
| Amperage: |
| ENVIRONMENTAL |
| Protection: |
| Ambient Oper. Temp: |
| CERTIFICATIONS |
| UL: |
| CSA: |
| Gray Anodized Aluminum |
| Nylon 6/6 |
| #18 AWG with PVC Insulation |
| Over 16 X #30 Copper Stranding, |
| 300V, UL Style 1061, |
| CSA AWM SR |
| Nitrile Rubber |
| Nitrile Rubber |
| 250V AC/DC |
| 2P - 4A |
| 3P - 4A |
| 4P - 4A |
| 5P - 4A |
| IP 65, NEMA 4 |
| -4° TO 176° F (-20° TO 80° C) |
| UL Listed, File NO. E152210 |
| CSA Certified, File NO. LR6837 |
Part Number Selector
| 2P | 3P | 4P | 5P | |

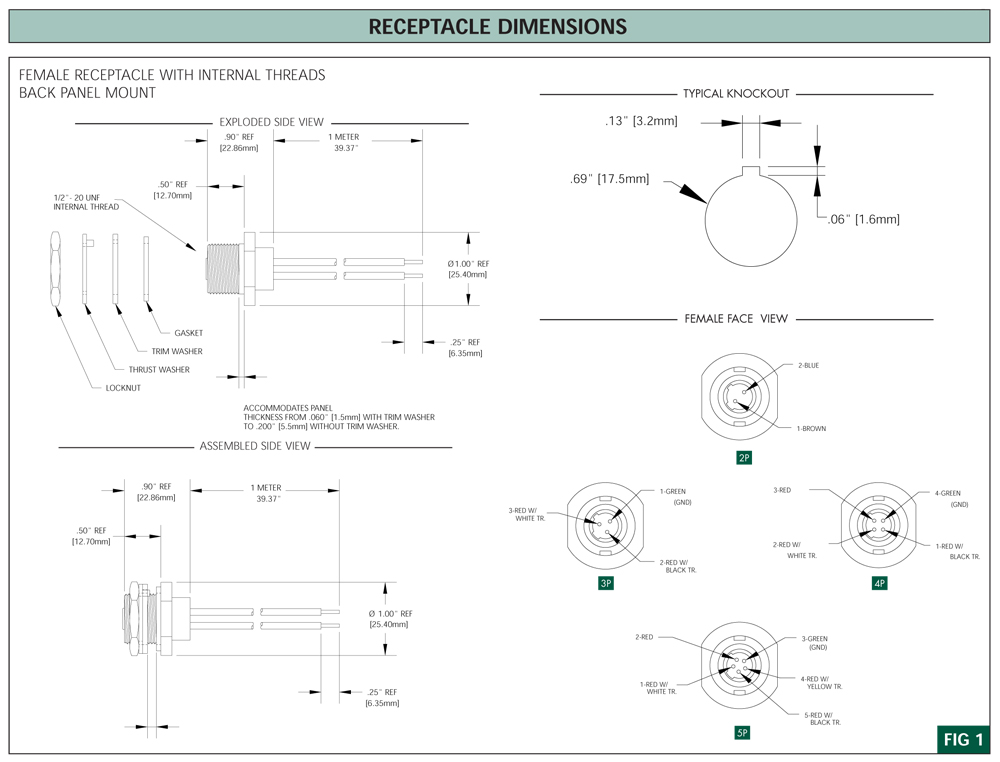

| FEMALE FACE VIEW |
 |
 |
 |
 |
| COLOR CODE | 1 - brown 2 - blue | 1 - green-gnd2 - red - black trace 3 - red - white trace | 1 - red - black trace2 - red - white trace3 - red4 - green-gnd | 1 - red - white trace2 - red3 - green-gnd4 - red - yellow trace5 - red - black trace |
| VOLTAGE | 250V AC/DC | 250V AC/DC | 250V AC/DC | 250V AC/DC |
| CURRENT | 4A | 4A | 4A | 4A |
| CONDUCTOR | #18-2 | #18-3 | #18-4 | #18-5 |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | ||||
| FEMALE | RECEPTACLES WITH #18 AWG PVC LEADS 1 METER LONG | |||
| BACKPANEL MOUNT | 7R2B00A17M010 | 7R3B00A17M010 | 7R4B00A17M010 | 7R5B00A17M010 |
