Micro-Change | Double-Ended Cordsets | 3-5 Poles | 360° Shield Single Keyway M12
#22 AWG Black PVC Cable with Braid Shield and Drain - DC Color Code
Oil-Resistant PVC Jacket
For Use in High EMI and RFI Environments
| MECHANICAL |
| Connector Face: |
| Molded Body: |
| O-Ring: |
| Coupling Nut: |
| Cable: |
| Outside Diameter: |
| ELECTRICAL |
| Voltage Rating: |
| Amperage: |
| ENVIRONMENTAL |
| Shield Effectiveness Rating: |
| Protection: |
| Ambient Oper. Temp: |
| CERTIFICATIONS |
| CSA: |
| Polybutylene Terephthalate |
| Polybutylene Terephthalate |
| Nitrile Rubber |
| Nickel Plated Brass |
| Black #22 AWG PVC Jacket 80% |
| Metallic Braid Shield with Drain |
| Wire and PVC Conductor |
| Insulation Over 26 X #36 Copper |
| Stranding, 300V, UL Style 2661, |
| CSA AWM l/ll A/B |
| 3P - .26" (6.6mm) |
| 4P - .28" (7.1mm) |
| 5P - .30" (7.6mm) |
| 250V AC/DC |
| 3P - 4A |
| 4P - 4A |
| 5P - 4A |
| 70.4dB Average from 0-320 MHz |
| IP 68, NEMA 6P |
| -4° TO 221° F (-20° TO 105° C) |
| CSA Certified, File NO. LR6837 |
Part Number Selector
| 3P | 4P | 5P | |

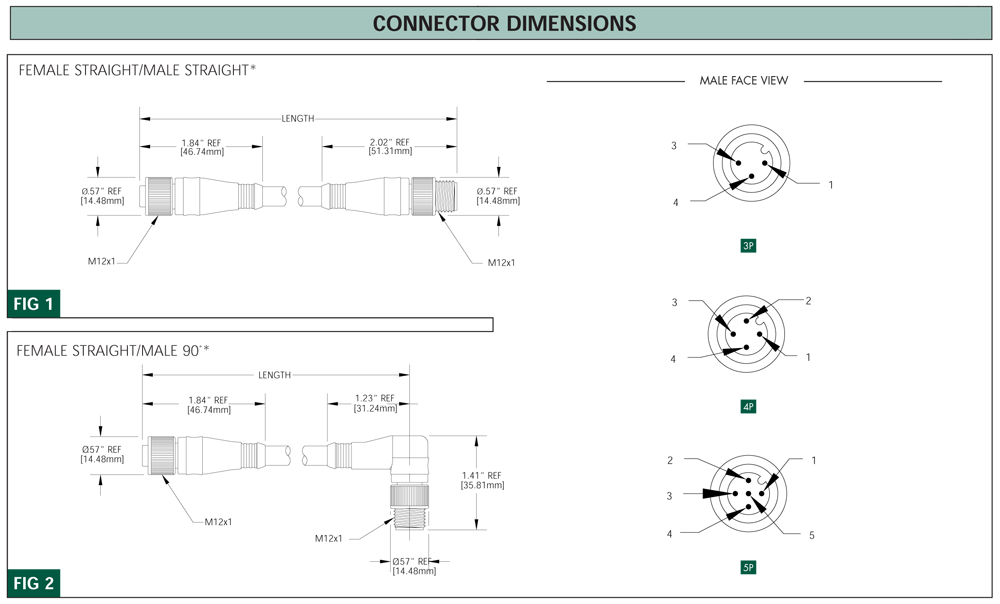

| FEMALE FACE VIEW |
 |
 |
 |
| COLOR CODE | 1 - brown 2 - not used 3 - blue 4 - black 5 - not used coupling nut - drain | 1 - brown 2 - white 3 - blue 4 - black 5 - not used coupling nut - drain | 1 - brown2 - white3 - blue4 - black5 - graycoupling nut - drain |
| VOLTAGE | 250V AC/DC | 250V AC/DC | 250V AC/DC |
| CURRENT | 4A | 4A | 4A |
| CONDUCTOR | #22-3 + #22 Drain | #22-4 + #22 Drain | #22-5 + #22 Drain |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | |||

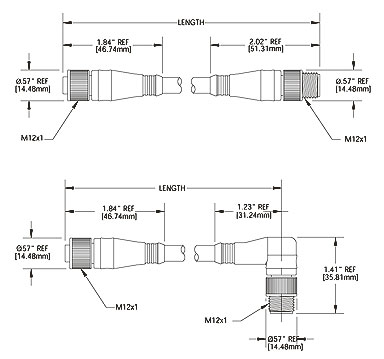

| FEMALE/MALE | DOUBLE-ENDED CORDSETSWITH #22 AWG PVC CABLE WITH SHIELD 2 METERS LONG | ||
| STRT./STRT. | 883S30D04M020 | 884S30D04M020 | 885S30D04M020 |
| STRAIGHT/90° | 883S32D04M020 | 884S32D04M020 | 885S32D04M020 |
