Micro-Change | Single-Ended Cordsets | 2-6 Poles | 360° Shield Dual Keyway 1/2"-20 UNF
#22 AWG Black PVC Cable with Braid Shield and Drain - Auto Color Code
Oil-Resistant PVC Jacket
For Use in High EMI and RFI Environments
| MECHANICAL |
| Connector Face: |
| Molded Body: |
| O-Ring: |
| Coupling Nut: |
| Cable: |
| Outside Diameter: |
| ELECTRICAL |
| Voltage Rating: |
| Amperage: |
| ENVIRONMENTAL |
| Shield Effectiveness Rating: |
| Protection: |
| Ambient Oper. Temp: |
| CERTIFICATIONS |
| CSA: |
| Polybutylene Terephthalate |
| Polybutylene Terephthalate |
| Nitrile Rubber |
| Nickel Plated Brass |
| Black #22 AWG PVC Jacket 80% |
| Metallic Braid Shield with Drain |
| Wire and PVC Conductor |
| Insulation Over 26 X #36 Copper |
| Stranding, 300V, UL Style 2661, |
| CSA AWM l/ll A/B |
| 2P - .23" (5.8mm) |
| 3P - .23" (5.8mm) |
| 4P - .25" (6.4mm) |
| 5P - .26" (6.6mm) |
| 6P - .29" (7.4mm) |
| 250V AC/DC |
| 2P TO 6P - 4A |
| 70.4dB Average from 0-320 MHz |
| IP 68, NEMA 6P |
| -4° TO 221° F (-20° TO 105° C) |
| CSA Certified, File NO. LR6837 |
Part Number Selector
| 2P | 3P | 4P | 5P | 6P | |
| FEMALE FACE VIEW |
 |
 |
 |
 |
 |
| COLOR CODE | 1 - blue 2 - brown coup. nut - drain | 1 - green-gnd 2 - red/black 3 - red/whitecoup. nut - drain | 1 - red/black2 - red/white3 - red4 - green-gndcoup. nut - drain | 1 - red/white2 - red3 - green-gnd4 - red/yellow5 - red/blackcoup. nut - drain | 1 - red/white2 - red3 - green-gnd4 - red/yellow5 - red/black6 - red/bluecoup. nut - drain |
| VOLTAGE | 250V AC/DC | 250V AC/DC | 250V AC/DC | 250V AC/DC | 250V AC/DC |
| CURRENT | 4A | 4A | 4A | 4A | 4A |
| CONDUCTOR | #22-2 + #22 Drain | #22-3 + #22 Drain | #22-4 + #22 Drain | #22-5 + #22 Drain | #22-6 + #22 Drain |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | |||||

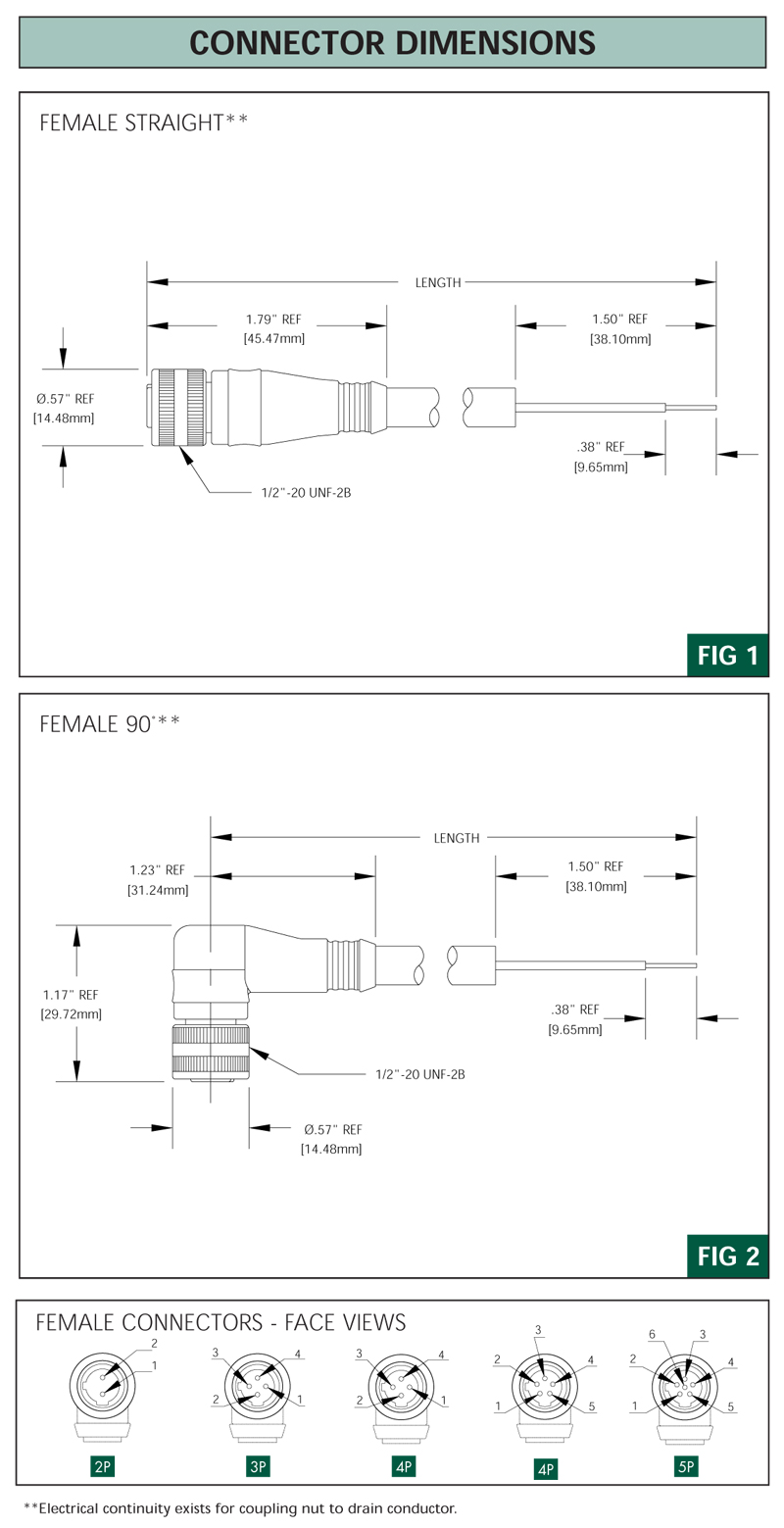

| FEMALE | SINGLE-ENDED CORDSETS WITH #22 AWG PVC CABLE WITH SHIELD 2 METERS LONG | ||||
| STRAIGHT | 702S00D05F060 | 703S00D05F060 | 704S00D05F060 | 705S00D05F060 | 706S00D05F060 |
| 90° | 702S01D05F060 | 703S01D05F060 | 704S01D05F060 | 705S01D05F060 | 706S01D05F060 |

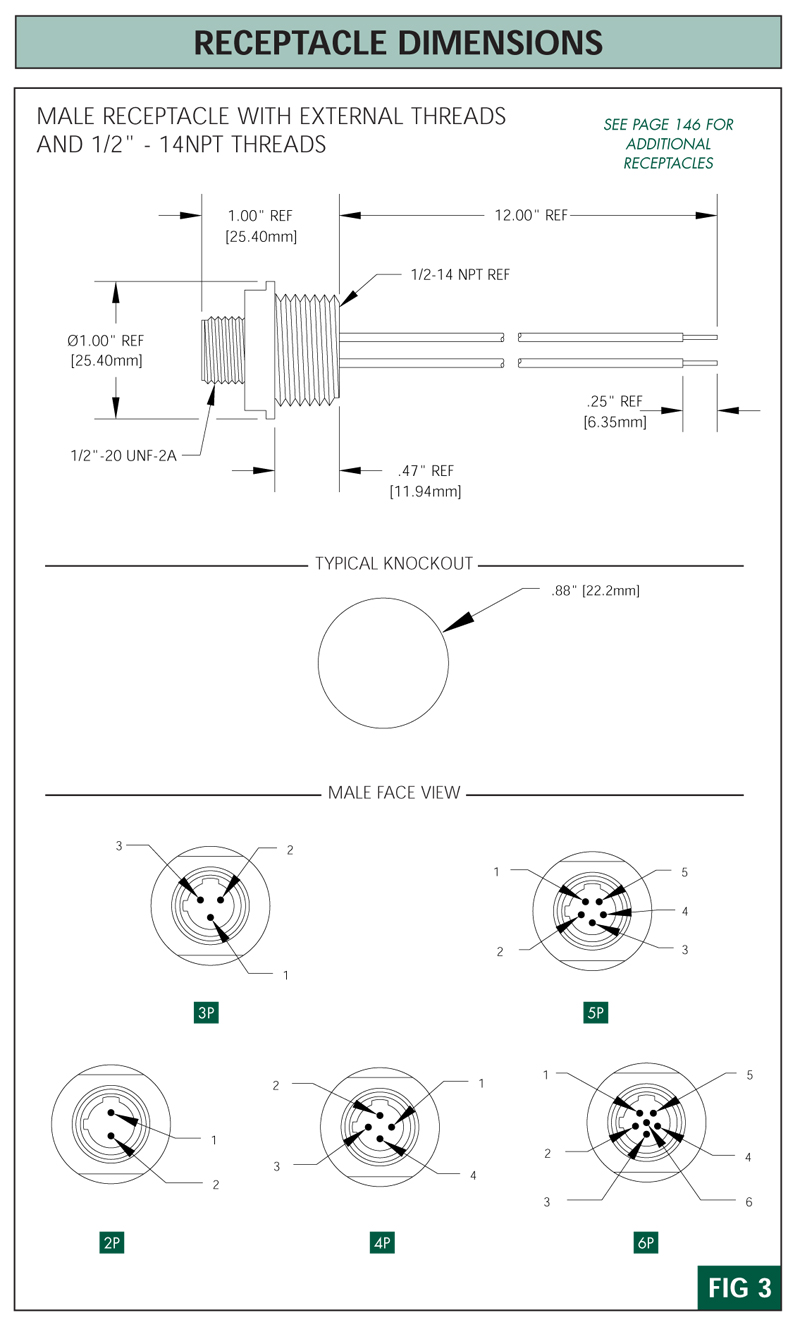

| MATING RECEP. | 7R2006A19A1203 | 7R3006A19A1203 | 7R4006A19A1203 | 7R5006A19A1203 | 7R6006A19A1203 |
