Mini-Change | LED Cordsets | 3 Poles
Extended-Life Yellow LED - 100,000 Hours Continuous Use

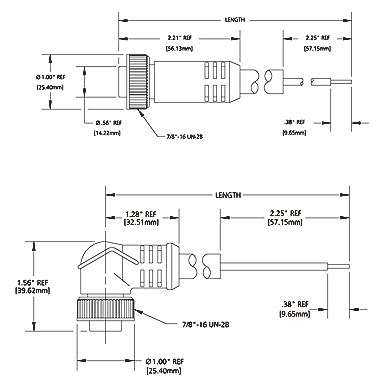

Clear PVC Body - Female Straight and 90°
Provides Output Indication for AC Sensors
| MECHANICAL |
| Connector Face: |
| Molded Body: |
| Coupling Nut: |
| Cable: |
| Coupler Size: |
| Outside Diameter: |
| ELECTRICAL |
| Voltage Rating: |
| Amperage: |
| ENVIRONMENTAL |
| Protection: |
| Ambient Oper. Temp: |
| CERTIFICATIONS |
| UL: |
| CSA: |
| PVC - UL STD 94 - V0 |
| PVC - UL STD 94 - V0 |
| Zinc Diecast w/ Black Epoxy |
| Yellow, #18 AWG, PVC Jacket & |
| PVC Conductor Insulation Over |
| 41 X #34 Copper Stranding, |
| 300V, UL Style Z661, |
| CSA AWM l/ll A/B |
| 1" |
| 4P - .28" (7.1mm) |
| 300 V AC/DC |
| 3P - 3A |
| IP 68, NEMA 6P |
| -4° to 221° F (-20° to 90° C) |
| UL Recognized, File NO. E46237 |
| CSA Certified, File NO. LR6837 |
Part Number Selector
| 3P WITH LED | |
| FEMALE FACE VIEW |
 |
| COLOR CODE | 1 - green-gnd 2 - red w/black-load 3 - red w/white-L1 red-L2 |
| VOLTAGE | 120V AC ± 10% |
| CURRENT | 3A |
| CONDUCTOR | #18-4 |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | |

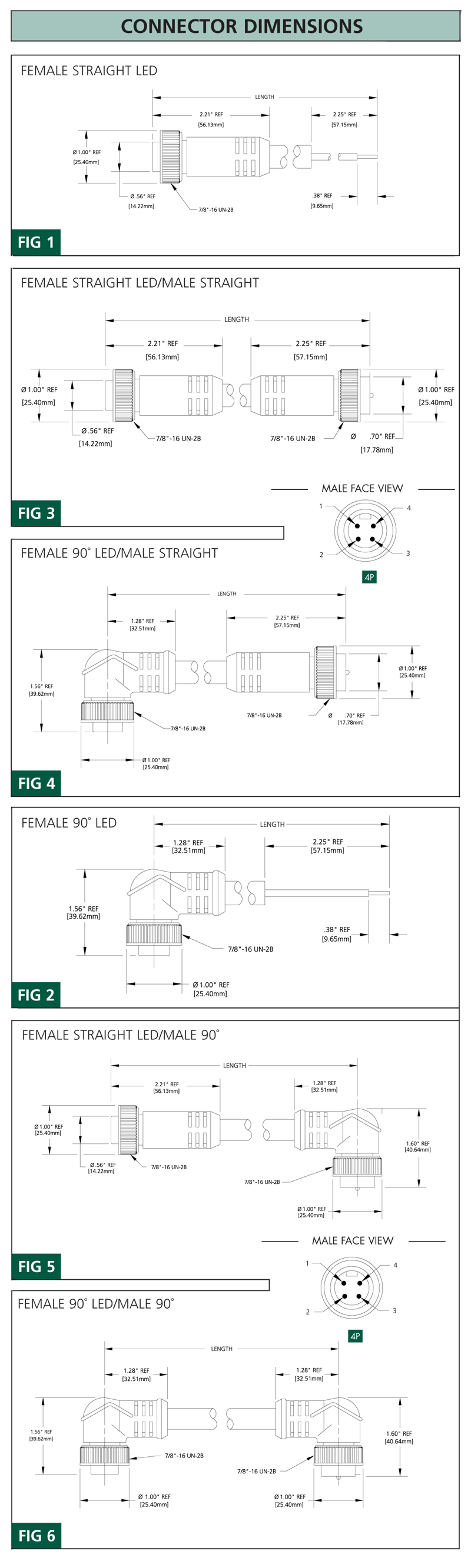

| FEMALE | SINGLE-ENDED CORDSETS WITH #18 AWG PVC CABLE 3 FEET LONG |
| STRAIGHT LED | 1030A0A03F030 |
| 90° LED | 1030A1A03F030 |
| FEMALE/MALE-4P | DOUBLE-ENDED CORDSETS WITH #18 AWG PVC CABLE 6 FEET LONG |
| STRAIGHT LED / STRAIGHT | 1130A2A03F060 |
| 90° LED / STRAIGHT | 1130A3A03F060 |
| STRAIGHT LED / 90° | 1130A4A03F060 |
| 90° LED / 90° | 1130A5A03F060 |
Brad Harrison/Woodhead Products Distributed by Gross Automation | Brookfield, WI 262.233.1891
