Mini-Change | Double-Ended Cordsets | 3, 4 & 5 Poles
#16 AWG Yellow SOO Cable - Auto Color Code
Oil-Resistant NPR Rubber Jacket
Low-Resistance Contact Design with Gold/Palladium Nickel Plating
| MECHANICAL |
| Connector Face: |
| Molded Body: |
| Coupling Nut: |
| Coupler Size: |
| Cable: |
| Outside Diameter: |
| ELECTRICAL |
| Voltage Rating: |
| Amperage: |
| ENVIRONMENTAL |
| Protection: |
| Ambient Oper. Temp: |
| CERTIFICATIONS |
| UL: |
| CSA: |
| PVC - UL STD 94 - V0 |
| PVC - UL STD 94 - V0 |
| Zinc Diecast w/ Black Epoxy |
| E-Coat, Optional Stainless Steel |
| Type 303 or Non-Metallic Gray |
| Nylon 6/6 |
| 1" |
| Yellow, #16 AWG, Nitrile |
| Rubber/PVC Jacket & Hypalon |
| Conductor Insulation Over |
| 65 X #34 Copper Stranding, |
| 600V, UL Type S00 CSA SO |
| 3P - .42" (10.7mm) |
| 4P - .45" (11.4mm) |
| 5P - .52" (13.2mm) |
| 600V AC/DC |
| 3P - 13A |
| 4P - 10A |
| 5P - 8A |
| IP 68, NEMA 6P |
| -4° TO 194° F (-20° TO 90° C) |
| UL Recognized, File NO. E46237 |
| CSA Certified, File NO. LR6837 |

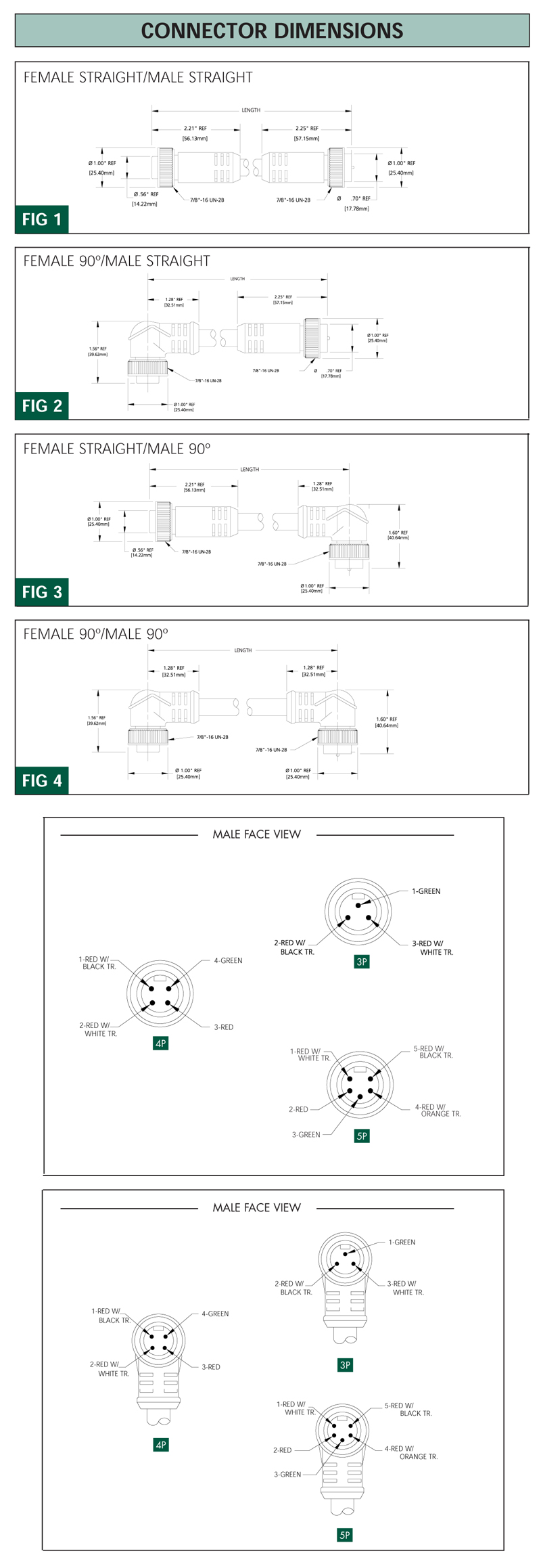

Part Number Selector
| 3P | 4P | 5P | |
| FEMALE FACE VIEW |
 |
 |
 |

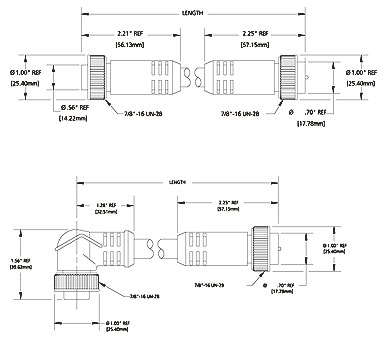

| COLOR CODE | 1 - green-gnd 2 - red w/ black trace 3 - red w/ white trace | 1 - red w/ black trace2 - red w/ white trace3 - red4 - green-gnd | 1 - red w/ white trace 2 - red 3 - green-gnd 4 - red w/ orange trace 5 - red w/ black trace |
| VOLTAGE | 600V AC/DC | 600V AC/DC | 600V AC/DC |
| CURRENT | 13A | 10A | 8A |
| CONDUCTOR | #16-3 | #16-4 | #16-5 |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | |||
| FEMALE/MALE | DOUBLE-ENDED CORDSETS WITH #16 AWG TYPE S00 CABLE 3 FEET LONG | ||
| STRT./STRT. | 113020C01F030 | 114020C01F030 | 115020C01F030 |
| 90°/STRAIGHT | 113021C01F030 | 114021C01F030 | 115021C01F030 |
| STRAIGHT/90° | 113022C01F030 | 114022C01F030 | 115022C01F030 |
| 90°/90° | 113023C01F030 | 114023C01F030 | 115023C01F030 |
