Mini-Change | Double-Ended Cordsets | 3, 4 & 5 Poles
#18 AWG Yellow AWM 2661Cable - Auto Color Code
Oil-Resistant PVC Jacket
Low-Resistance Contact Design with Gold/Palladium Nickel Plating
| MECHANICAL |
| Connector Face: |
| Molded Body: |
| Coupling Nut: |
| Coupler Size: |
| Cable: |
| Outside Diameter: |
| ELECTRICAL |
| Voltage Rating: |
| Amperage: |
| ENVIRONMENTAL |
| Protection: |
| Ambient Oper. Temp: |
| CERTIFICATIONS |
| UL: |
| CSA: |
| PVC - UL STD 94 - V0 |
| PVC - UL STD 94 - V0 |
| Zinc Diecast w/ Black Epoxy |
| E-Coat, Optional Stainless Steel |
| Type 303 or Non-Metallic Gray |
| Nylon 6/6 |
| 1" |
| Yellow, #18 AWG, PVC Jacket & |
| PVC Conductor Insulation Over |
| 41 X #34 Copper Stranding, |
| 300V, UL Style 2661, |
| CSA AWM l/ll A/B |
| 3P - .28" (7.1mm) |
| 4P - .28" (7.1mm) |
| 5P - .28" (7.1mm) |
| 300 V AC/DC |
| 3P - 10A |
| 4P - 7A |
| 5P - 5.6A |
| IP 68, NEMA 6P |
| -4° TO 221° F (-20° TO 105° C) |
| UL Recognized, File NO. E46237 |
| CSA Certified, File NO. LR6837 |
Part Number Selector
| 3P | 4P | 5P | |

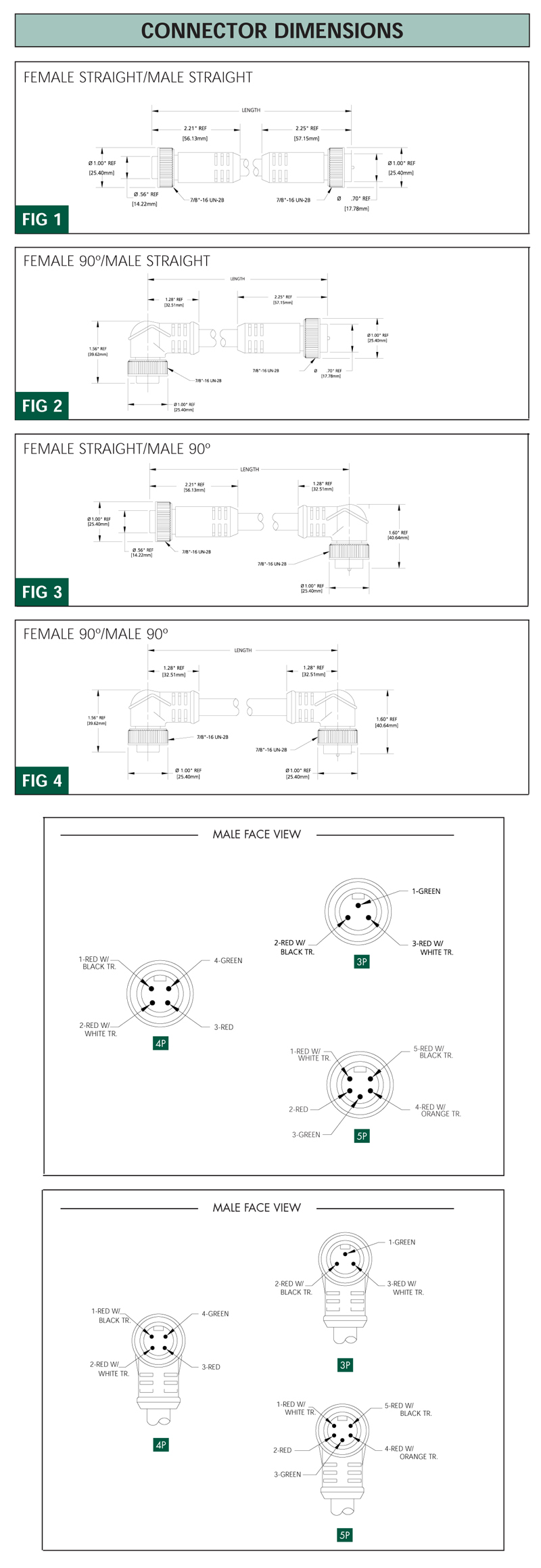

| FEMALE FACE VIEW |
 |
 |
 |
| COLOR CODE | 1 - green-gnd 2 - red w/ black trace 3 - red w/ white trace | 1 - red w/ black trace2 - red w/ white trace3 - red4 - green-gnd | 1 - red w/ white trace 2 - red 3 - green-gnd 4 - red w/ yellow trace 5 - red w/ black trace |
| VOLTAGE | 300V AC/DC | 300V AC/DC | 300V AC/DC |
| CURRENT | 10A | 7A | 5.6A |
| CONDUCTOR | #18-3 | #18-4 | #18-5 |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | |||

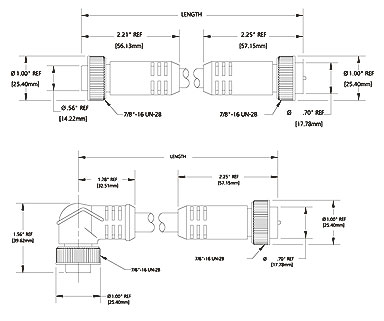

| FEMALE/MALE | DOUBLE-ENDED CORDSETS WITH #18 AWG PVC CABLE 3 FEET LONG | ||
| STRT./STRT. | 113020A03F030 | 114020A03F030 | 115020A03F030 |
| 90°/STRAIGHT | 113021A03F030 | 114021A03F030 | 115021A03F030 |
| STRAIGHT/90° | 113022A03F030 | 114022A03F030 | 115022A03F030 |
| 90°/90° | 113023A03F030 | 114023A03F030 | 115023A03F030 |
