Mini-Change | Attachable Connectors | 3 & 5 Poles
Allows Easy Field Conversion to Quick Disconnect
Male with Internal or External Threads - Female with Internal Threads
Secure Screw Terminals #15 AWG to #24 AWG - Compatible with Existing Mini-Change
| MECHANICAL |
| Connector Face: |
| Body: |
| Contact: |
| Coupling Nut: |
| Grommet: |
| Cable Range O.D.: |
| Acceptable Wire Gauge: |
| ELECTRICAL |
| Voltage Rating: |
| Amperage: |
| ENVIRONMENTAL |
| Protection: |
| Ambient Oper. Temp: |
| CERTIFICATIONS |
| CSA: |
| Polyurethane |
| Polyamide PA6 |
| Gold-Plated Brass |
| Nickel-Plated Brass |
| Neoprene |
| .20" - .48" (5.0 - 12.0mm) |
| #24 AWG - #15 AWG |
| 600 V AC/DC |
| 3P - 13A |
| 5P - 8A |
| IP68 |
| -40° TO 176° F (-40° TO 80° C) |
| CSA Certified, File NO. LR6837 |
Part Number Selector
| 3P | 5P | |
| FEMALE FACE VIEW |
 |
 |
| VOLTAGE | 600V AC/DC | 600V AC/DC |
| CURRENT | 13A | 8A |
| CONDUCTOR | .20"-.48" (5mm-12mm) O.D. | .20"-.48" (5mm-12mm) O.D. |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | ||

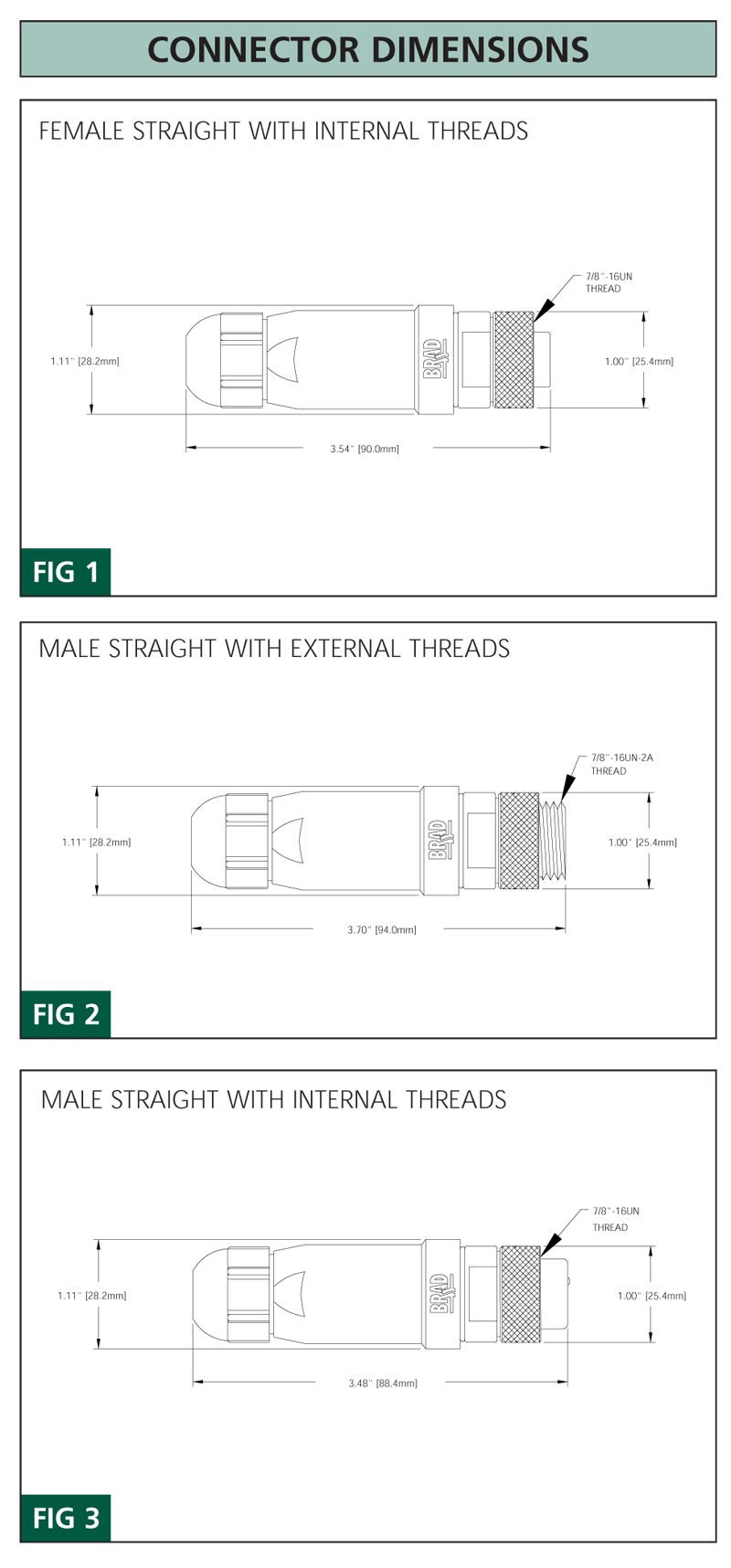

| FEMALE | ATTACHABLE CONNECTORS | |
| STRAIGHT WITH INTERNAL THREADS |
1A3000-34 | 1A5000-34 |

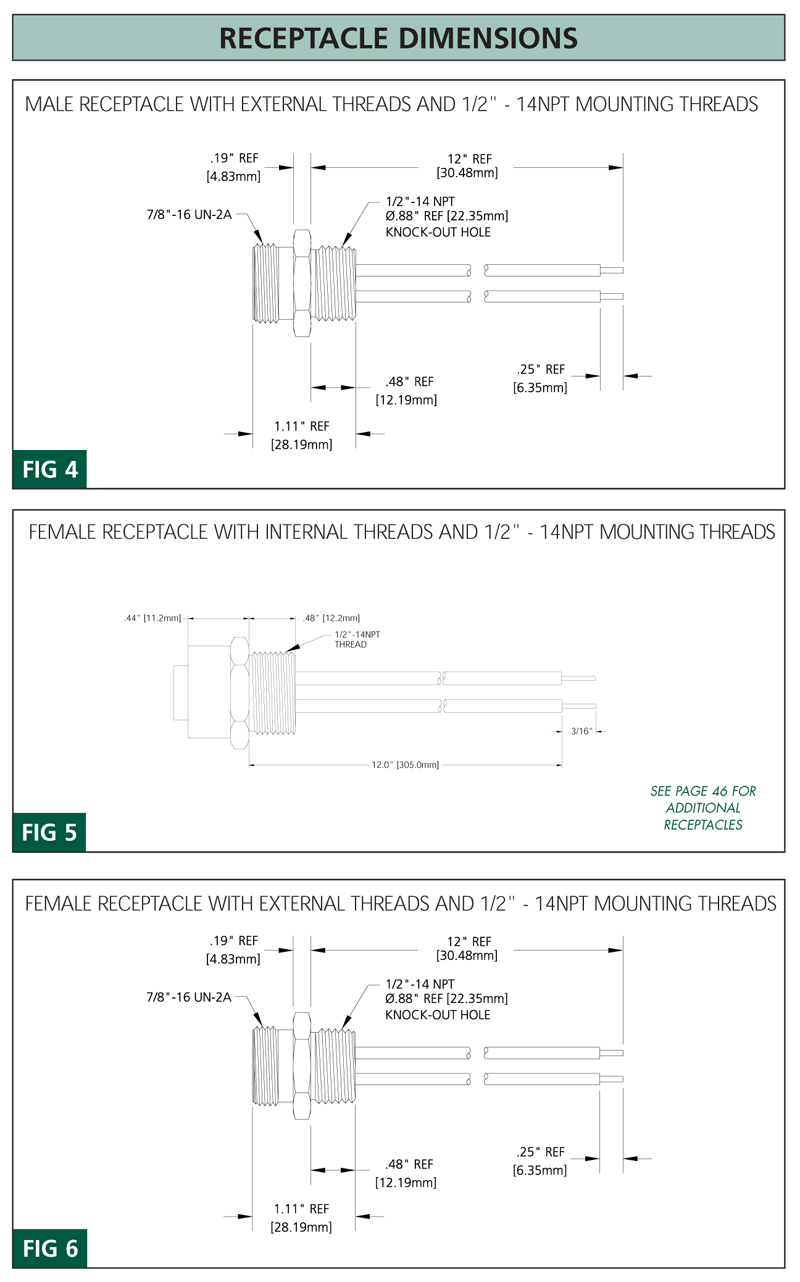

| MATING RECEP. | 1R3006A20A120 | 1R5006A20A120 |
| 3P | 5P | |
| MALE FACE VIEW |
|
|
| VOLTAGE | 600V AC/DC | 600V AC/DC |
| CURRENT | 13A | 8A |
| CONDUCTOR | .20"-.48" (5mm-12mm) O.D. | .20"-.48" (5mm-12mm) O.D. |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | ||
| MALE | ATTACHABLE CONNECTORS | |
| STRAIGHT WITH EXTERNAL THREADS |
1A3006-34 | 1A5006-34 |
| MATING RECEPTACLES | 1R3000A20A120 | 1R5000A20A120 |
| STRAIGHT WITH INTERNAL THREADS |
1A3002-34 | 1A5002-34 |
| MATING RECEPTACLES | 1R3004A20A120 | 1R5004A20A120 |
