Mini-Change | Single-Ended Cordsets | 3-5 Poles
#18 & #20 AWG Yellow PVC Cable - IEC Color Code
Oil-Resistant PVC Jacket
Low-Resistance Contact Design with Gold/Palladium Nickel Plating
| MECHANICAL |
| Connector Face: |
| Molded Body: |
| Coupling Nut: |
| Coupler Size: |
| Cable: |
| Outside Diameter: |
| ELECTRICAL |
| Voltage Rating: |
| Amperage: |
| ENVIRONMENTAL |
| Protection: |
| Ambient Oper. Temp: |
| CERTIFICATIONS |
| UL: |
| CSA: |
| PVC - UL STD 94 - V0 |
| PVC - UL STD 94 - V0 |
| Zinc Diecast w/ Black Epoxy |
| E-Coat, Optional Stainless Steel |
| Type 303 or Non-Metallic Gray |
| Nylon 6/6 |
| 1" |
| Yellow, PVC Jacket & PVC |
| Conductor Insulation |
| 3P & 4P: #18 AWG, 41 X #34 |
| Copper Stranding |
| 5P: #20 AWG, 26 X #34 |
| Copper Stranding, 300V |
| 2P + GRD - .21" (5.3mm) |
| 3P - .29" (7.4mm) |
| 4P - .28" (7.1mm) |
| 5P - .28" (7.1mm) |
| 300 V AC/DC |
| 2P + GRD - 10A |
| 3P - 7A |
| 4P - 5.6A |
| 5P - 4A |
| IEC IP 68, NEMA 6P |
| -4° C to +221° C (-20 to 90° C) |
| UL Recognized, File NO. E46237 |
| CSA Certified, File NO. LR6837 |
Part Number Selector
| 3P | 3P | 4P | 5P | |
| FEMALE FACE VIEW |
 |
|
 |
 |
| COLOR CODE | 1 - grn/yellow-gnd 2 - brown 3 - blue | 1 - black 2 - brown 3 - blue | 1 - black2 - blue3 - brown4 - white | 1 - black 2 - blue 3 - grn-/yellow-gnd 4 - brown 5 - white |
| VOLTAGE | 300V AC/DC | 300V AC/DC | 300V AC/DC | 300V AC/DC |
| CURRENT | 10A | 7A | 5.6A | 4A |
| CONDUCTOR | 18 AWG | 18 AWG | 18 AWG | 20 AWG |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | ||||
| FEMALE | SINGLE-ENDED CORDSETS WITH #18 OR #20 AWG PVC CABLE 1 METER LONG | |||
| STRAIGHT | 103000A06M010 | 103000A05M010 | 104000A05M010 | 105000A07M010 |
| 90° | 103001A06M010 | 103001A05M010 | 104001A05M010 | 105001A07M010 |

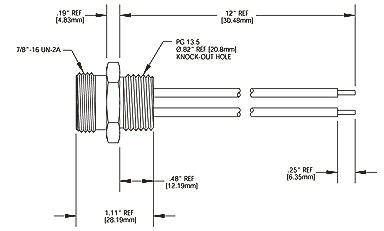

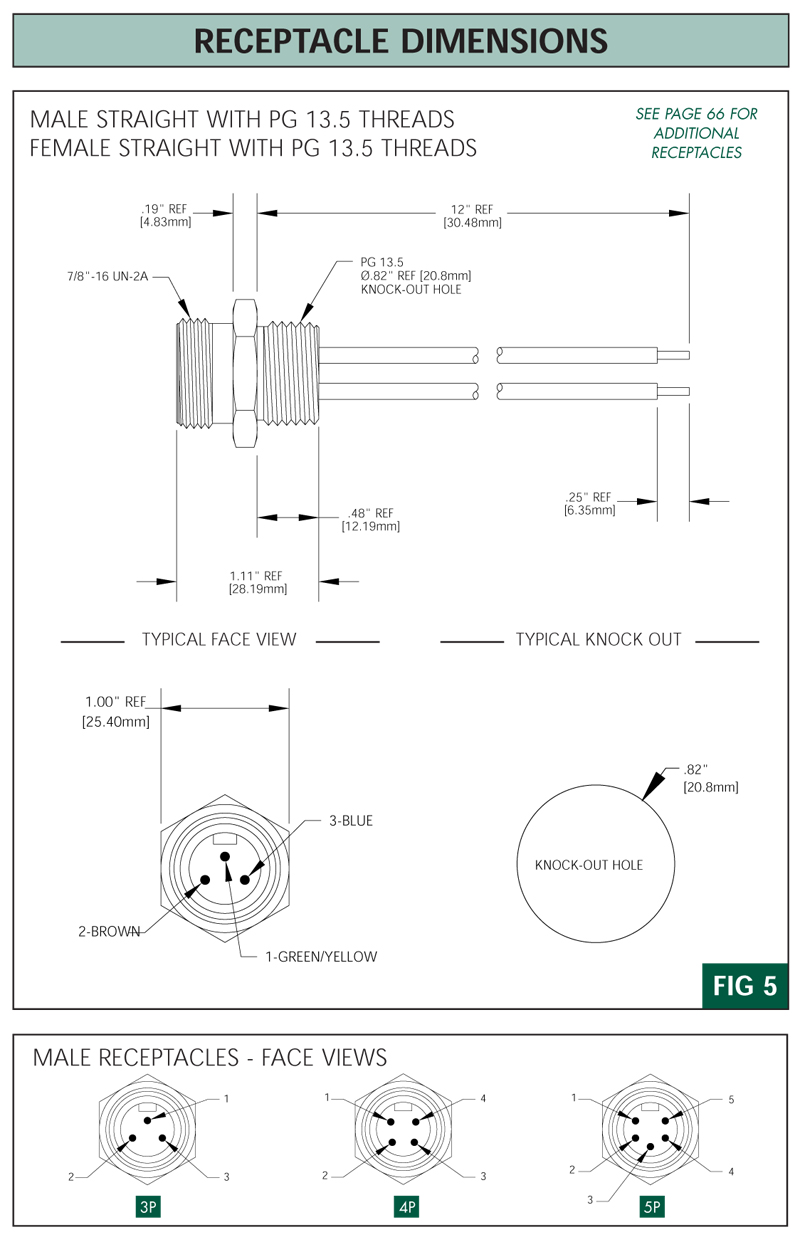

| MATING RECEP. | 1R3D06A25A120 | 1R3D06A16A120 | 1R4D06A16A120 | 1R5D06A25A120 |
| MALE | SINGLE-ENDED CORDSETS WITH #18 OR #20 AWG PVC CABLE 1 METER LONG | |||
| STRAIGHT | 103002A06M010 | 103002A05M010 | 104002A05M010 | 105002A07M010 |
| 90° | 103003A06M010 | 103003A05M010 | 104003A05M010 | 105003A07M010 |
| MATING RECEP. | 1R3D04A25A120 | 1R3D04A16A120 | 1R4D04A16A120 | 1R5D04A25A120 |
