Mini-Change | Single & Double-Ended Cordsets / Receptacles | 19 Poles
#18 AWG Power and #22 AWG Control Conductors
Oil- and Abrasion-Resistant Black Polyurethane (PUR) Jacket
Mating Receptacles Available in Male and Female Designs
| MECHANICAL |
| Connector Face: |
| Molded Body: |
| Coupling Nut: |
| Contact: |
| Cable: |
| Outside Diameter: |
| Receptacle Shell: |
| Receptacle Insert: |
| Receptacle Conductors: |
| ELECTRICAL |
| Voltage Rating: |
| Amperage: |
| ENVIRONMENTAL |
| Protection: |
| Ambient Oper. Temp: |
| PVC - UL STD 94 - V0 |
| PVC - UL STD 94 - V0 |
| Zinc Diecast w/ Black Epoxy |
| Gold Plated Brass |
| Black, #18 AWG & #22 AWG, |
| PUR Jacket & PVC Conductor |
| Insulation Over, 42 X .15mm |
| and 42 X .10mm Copper |
| Stranding |
| 19P - .45" (11.4mm) |
| Gray Anodized Aluminum |
| PVC - UL STD 94 - V0 |
| #22 AWG w/ PVC Insulation |
| #18 AWG w/ PVC Insulation |
| 300V AC/DC |
| 3A - 18AWG |
| 2A - 22AWG |
| IP 68 |
| -4° TO 176° F (-20° TO 80° C) |
Part Number Selector
| 19P | |||
| FEMALE FACE VIEW |
 |
MALE FACE VIEW |
 |
| COLOR CODE | 1 - orange 2 - blue 3 - red-black trace 4 - green-black trace 5 - white 6 - red 7 - green-gnd 8 - white-black trace 9 - black10 - orange 11 - blue 12 - white-black trace 13 - red-black trace 14 - green-black trace15 - orange-black trace16 - blue-black trace17 - black-white trace18 - green-gnd19 - red | ||
| VOLTAGE | 300V | ||
| CURRENT | 3A / 2A | ||
| CONDUCTOR | #18-3 / #22-16 | ||
| CLICK ON A PART NUMBER FOR MORE OPTIONS | |||

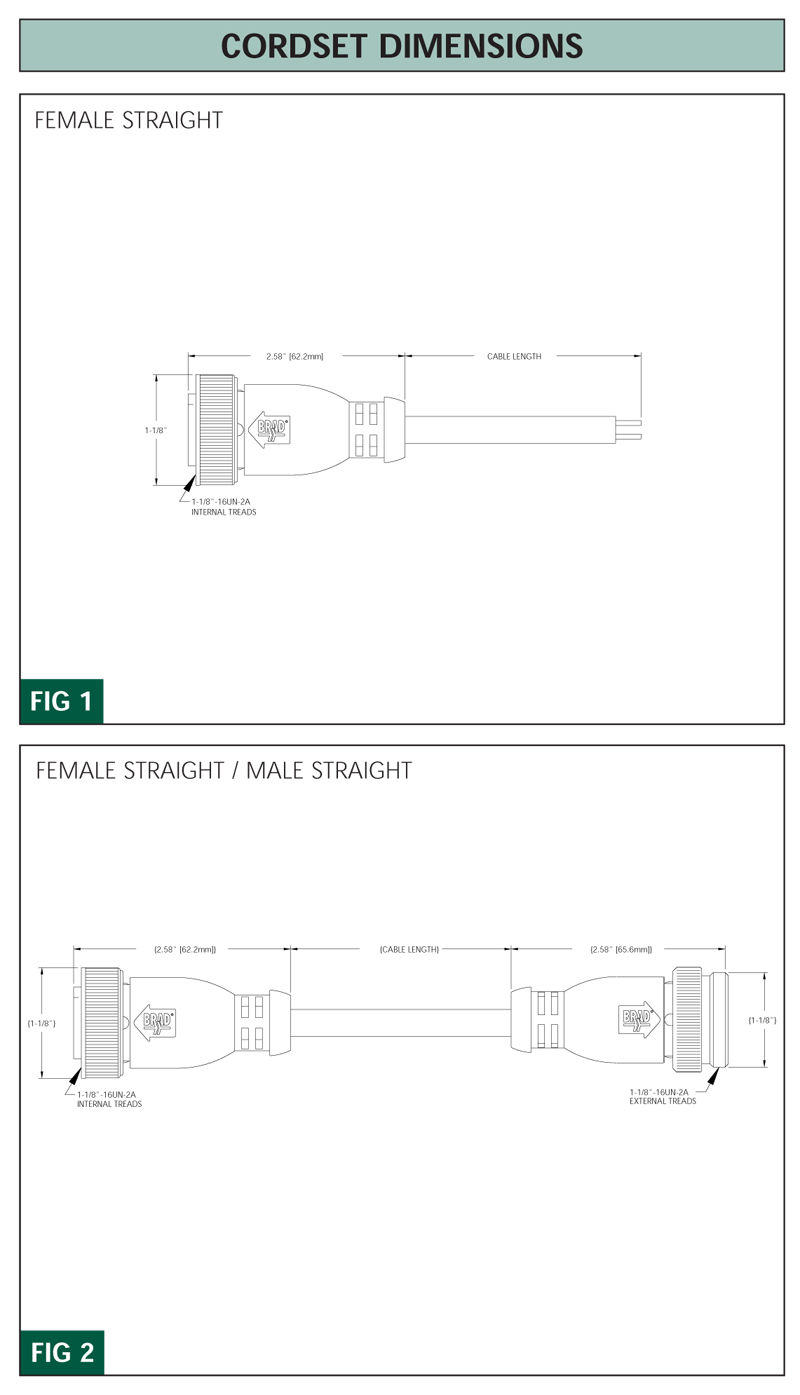

| FEMALE | SINGLE-ENDED CORDSETS WITH #18 AWG/#22 AWG PVC CABLE 5 METERS LONG | ||
| STRAIGHT |
303000P80M050 | ||

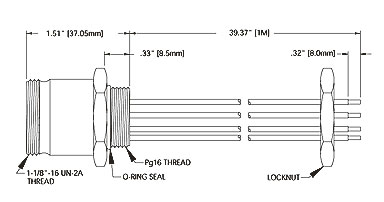

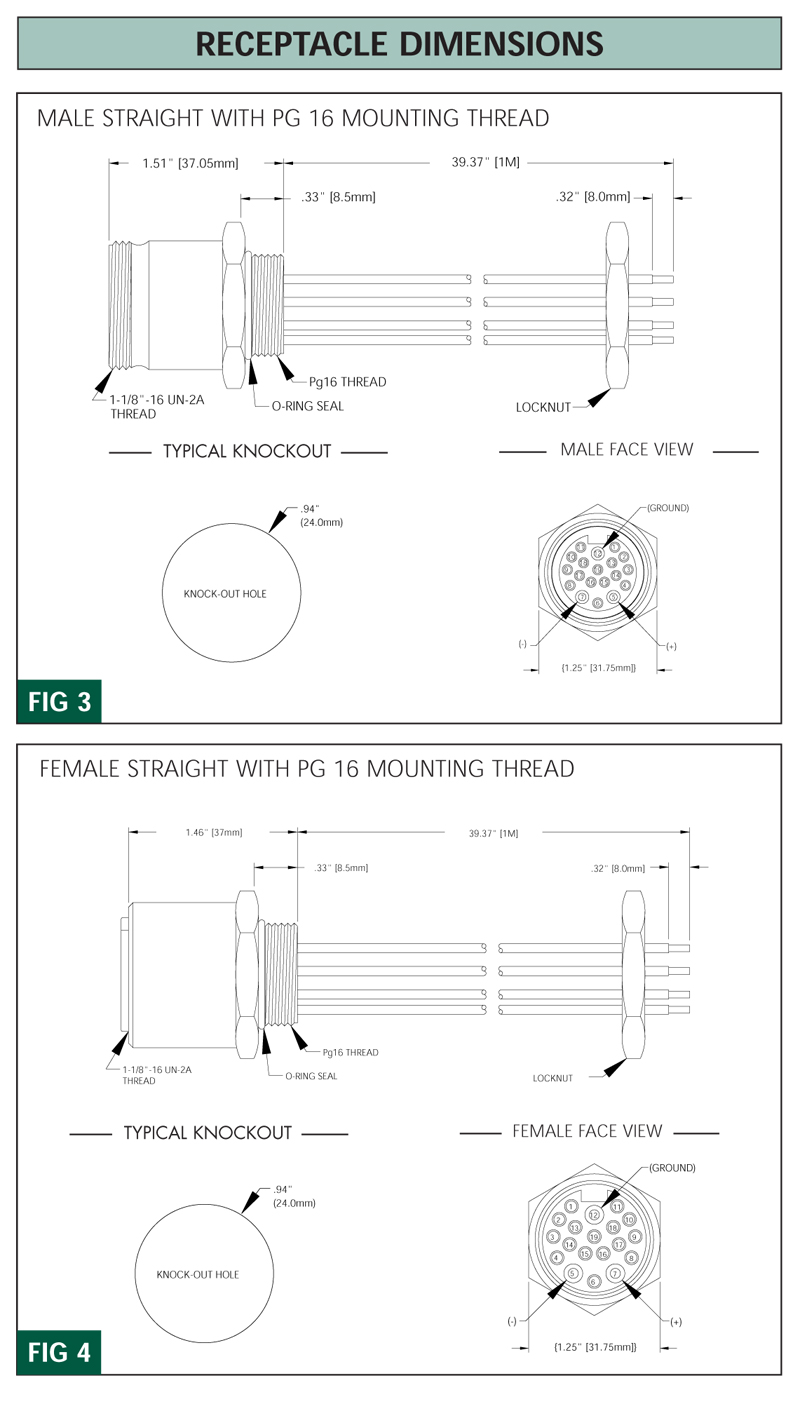

| MALE RECEPTACLE | 3R3N36E80C300 | ||
| FEMALE/MALE | DOUBLE-ENDED CORDSETS WITH #18 AWG/#22 AWG PVC CABLE 5 METERS LONG | ||
| STRAIGHT/STRAIGHT |
333030P80M050 | ||
| FEMALE RECEPTACLE | 3R3N30E80C300 | ||
