Flourescent Machine Light

  • magnetic mount
  • 13W

Machine tool lights available in three styles (flourescent, haloge, and incandescent), provide bright, safe illumination in harsh and abbusive enviornments - both fixed and temporary. Realizing that every application is different, Woodhead offers various mounting options. Choose from flexible neck, screw mounting or magnet mounting to fit your needs.

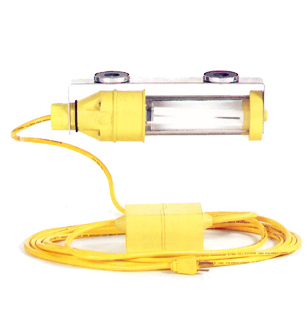

(part no. 1083-MM pictured on right)

Specialty Lighting and Accessories (PDF) (372 KB)

Machine Lights
Part No. Description Mount
Type
Fixture
Voltage
Lamp
Wattage
NEMA
Configuration
Cord
Length
1083-3MM Flourescent Magnet 120V/60HZ 13W Super-Safeway NEMA 5-15 15'
1083-3M Flourescent Screw 120V/60HZ 13W Super-Safeway NEMA 5-15 15'
1083-3MM-24 Flourescent Magnet 24 DC 13W -- 15'
1083-3M-P Flourescent Screw 230V/50HZ 13W -- 25'
1093-3MM Flourescent Magnet 120V/60HZ 27W Super-Safeway NEMA 5-15 15'
1093-3M Flourescent Screw 120V/60HZ 27W Super-Safeway NEMA 5-15 15'
1097-3MM Flourescent Magnet 120V/60HZ 40W Super-Safeway NEMA 5-15 15'
1097-3M Flourescent Screw 120V/60HZ 40W Super-Safeway NEMA 5-15 15'
8530M Incandescent Magnet 120VAC 60W NEMA 1-15 10'
8530P Incandescent Screw 120VAC 60W NEMA 1-15 10'
8540M Halogen Magnet 120VAC 20W NEMA 5-15 10'
8540P Halogen Screw 120VAC 20W NEMA 5-15 10'
8550M Flourescent Magnet 120VAC 13W NEMA 5-15 10'
8550P Flourescent Screw 120VAC 13W NEMA 5-15 10'
2113S Flourescent Screw 120V/60HZ 13W WaterTite NEMA 5-15 15'
2113MS Flourescent Magnet 120V/60HZ 13W WaterTite NEMA 5-15 15'
2113GS Flourescent Screw 120V/60HZ 13W WaterTite NEMA 5-15 15'
2126S Flourescent Screw 120V/60HZ 26W WaterTite NEMA 5-15 15'
2126MS Flourescent Magnet 120V/60HZ 26W WaterTite NEMA 5-15 15'
2126GS Flourescent Screw 120V/60HZ 26W WaterTite NEMA 5-15 15'
CLICK ON A PART NUMBER FOR MORE OPTIONS
