Other-Molded | Dual Round | 9 - 11 Poles
Heavy-Duty, Rugged Delivery of Power in Tough Environments
Unique Design Prevents Mismating to Insure Safety
Insulated and Locking Flip Lids on Receptacles for Safe Lock-Outs
| MECHANICAL (PLUG) |
| Plug Face: |
| Body: |
| Contact: |
| Cable: |
| 9/C |
| 11/C |

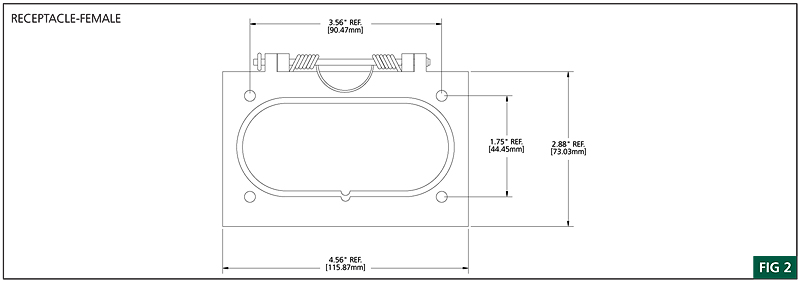

| MECHANICAL (RECEPTACLE) |
| Housing: |
| Insert: |
| Flip Lid: |
| Contact: |
| Termination: |
| Max. Wire Termination: |
| ELECTRICAL |
| Voltage Rating: |
| Amperage: |
| ENVIRONMENTAL |
| Ambient Oper. Temp: |
| CERTIFICATIONS |
| UL: |
| Neoprene |
| Neoprene |
| Brass |
| Black Neoprene Jacket, Type SO, |
| Over 26 X #30 Copper Stranding, |
| UL Listed, CSA 90° C Certified |
| 0.72" (18.3mm) |
| 0.67" (17.0mm) |
| Aluminum |
| Neoprene |
| Spring-Loaded |
| Brass |
| Screw Type |
| #16 AWG |
| 600V AC/DC |
| 7A |
| -4° TO 194° F (-20° TO 90° C) |
| UL Recognized, File NO. E46237 |
Part Number Selector
| 9P | 11P |
11P | |
| MALE FACE VIEW |
 |
 |
|
| COLOR CODE | LEFT 1 - green/black 2 - red 3 - white 4 - black RIGHT 1 - orange 2 - red/black 3 - white/black 4 - blue | LEFT 1 - green/black 2 - red 3 - white 4 - black 5 - jumpered to 5 RIGHT socket - green-gnd RIGHT 1 - orange 2 - red/black 3 - white/black 4 - blue 5 - jumpered to 5 LEFT | LEFT 1 - red/black 2 - green/black 3 - red 4 - white 5 - white/black socket - green-gnd RIGHT 1 - orange/black2 - black 3 - blue 4 - blue/black 5 - orange |
| VOLTAGE | 600V AC/DC | 600V AC/DC | 600V AC/DC |
| CURRENT | 7A | 7A | 7A |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | |||

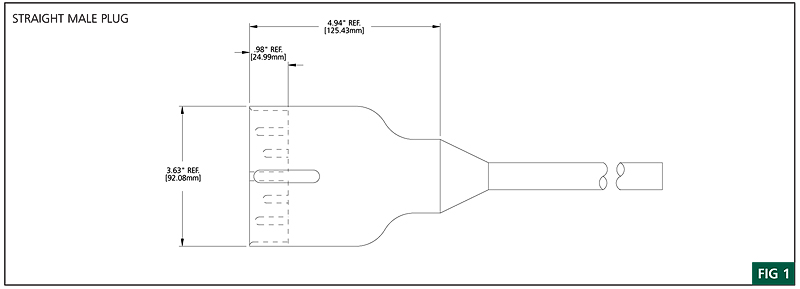

| STRAIGHT MALE PLUGS WITH 600V AC NEOPRENE JACKETED SO CABLE | |||
| 12' CABLE | 23002 | 23318 | 23312 |
| 18' CABLE | 23003 | - | - |
| 24' CABLE | 23010 | - | - |
| MATING RECEP. | 23001 | 23301 | 23301 |
